GEOPTIK ADAPTER FROM CAMERA LENS TO CCD/CMOS

$127.00 USD
SKU: 30A189

Geoptik

  • M28.5 x 0.6 Male
  • M48 x 0.75 Male
  • M42 x 0.75 Male
  • Optical thickness: 19 mm


Lens model

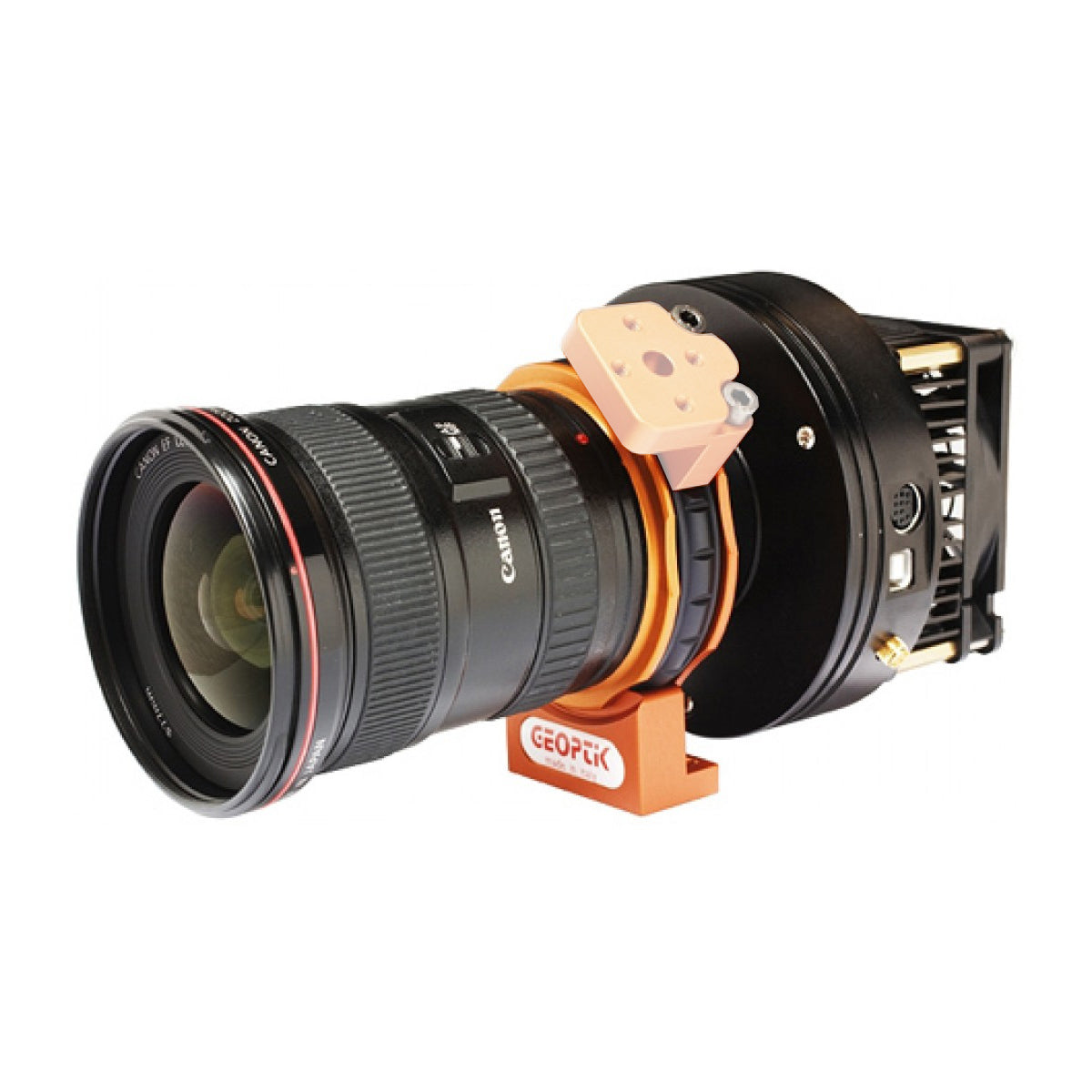

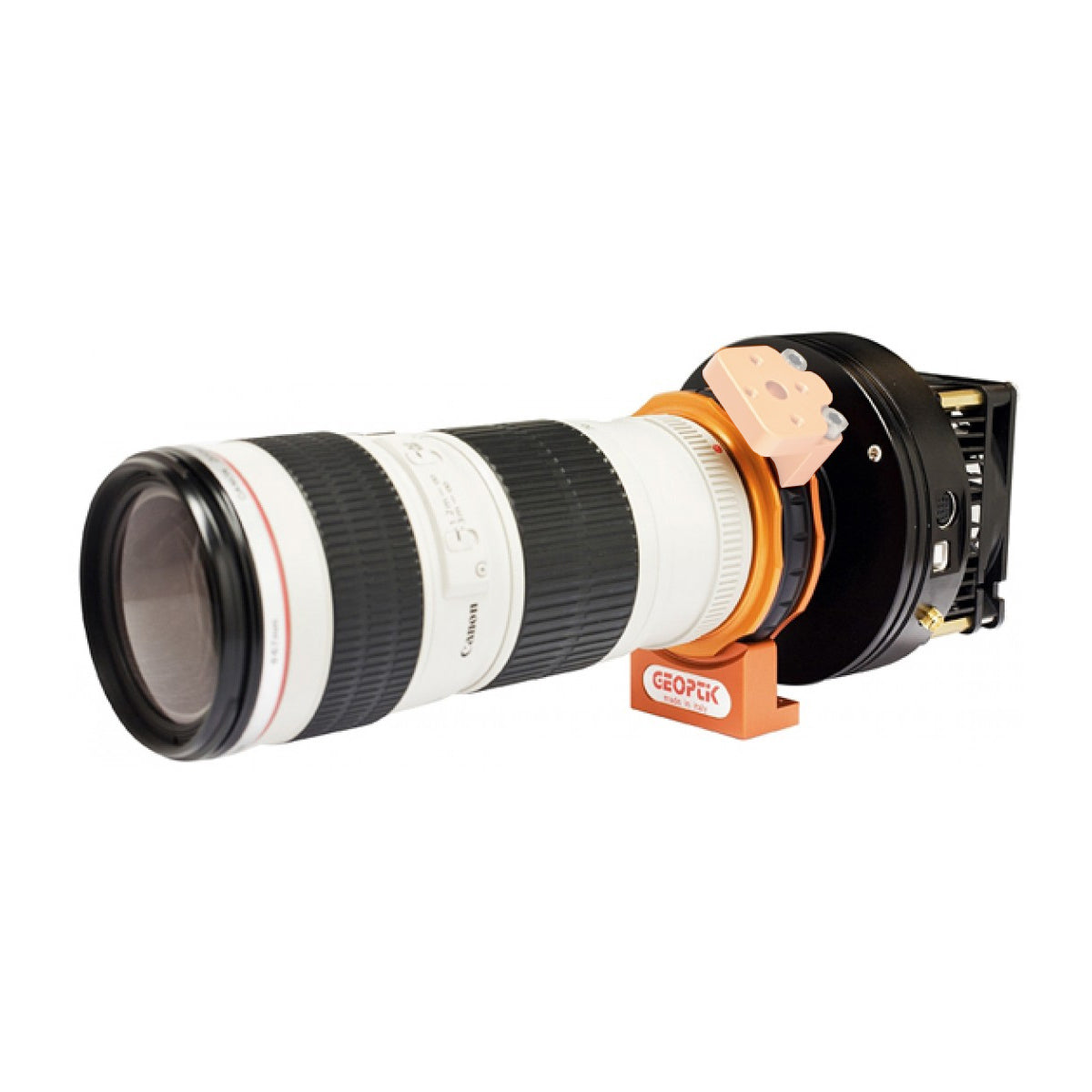

Have you ever thought to connect your lens with a Canon or Nikon connection to your astronomy camera? This adapter allows to connect the Canon EOS or Nikon lenses to a CCD/CMOS camera with T2 female thread (M42). A great alternative use of your camera lenses for wide field astrophotography

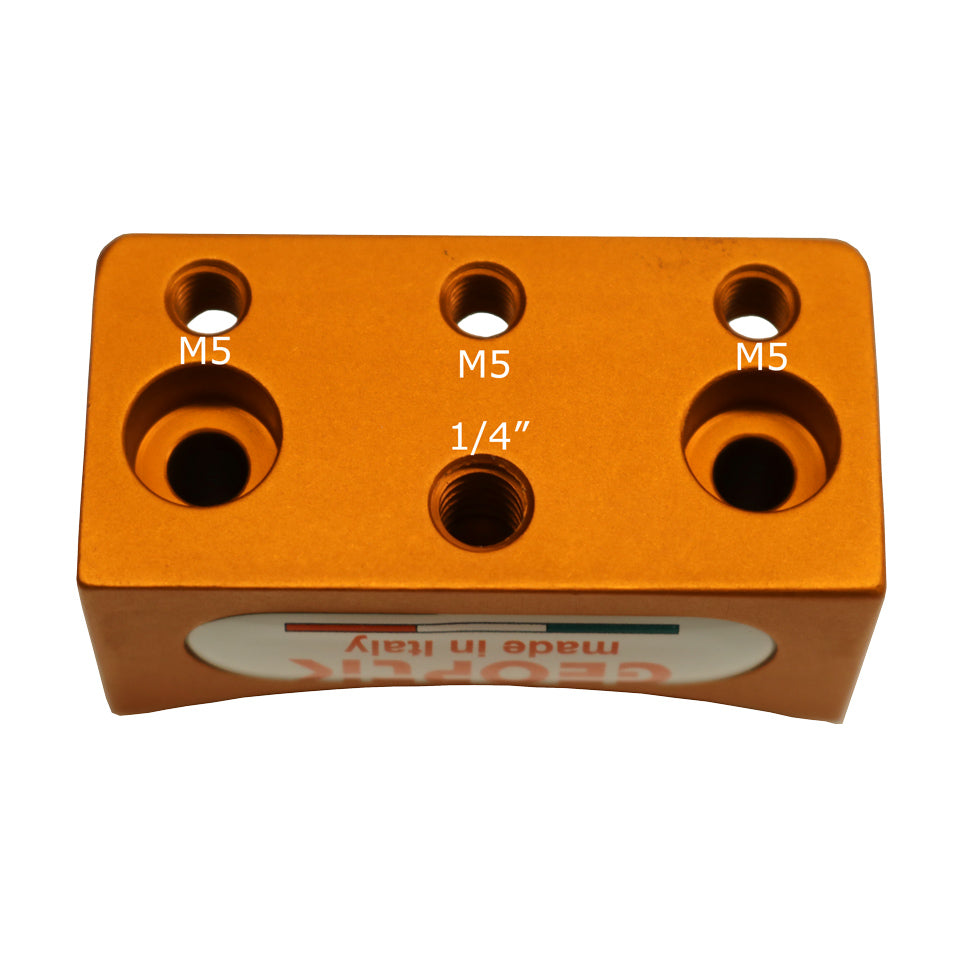

The base of the adapter has three M5 threads and one 1/4" thread so it can be directly attached to a camera tripod or to some portable mounts such as the SkyWatcher Star Adventurer.

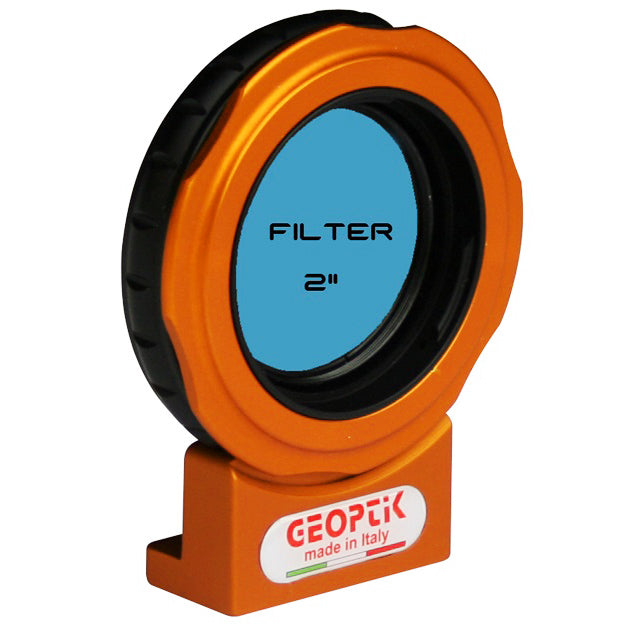

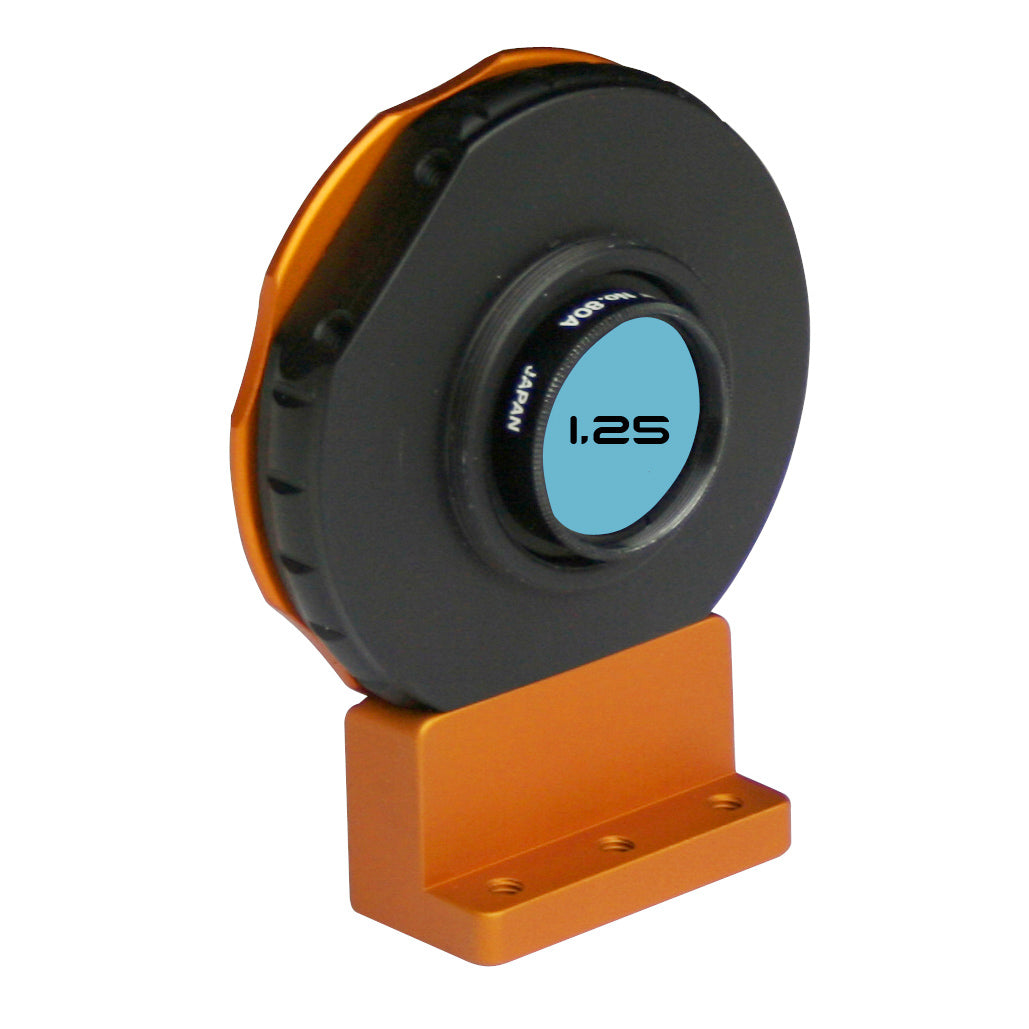

The adapter accept 1.25" and 2" filters.

Once the lens is inserted into the bayonet attachment, turn the ring to lock it.


Made in Italy.





Max Camera Diameter

110mm

Thickness

19mm

Material

Aluminium Anticorodal AW-6082-T6

Connection

Canon EOS or Nikon bayonet to T2 (M42)

Max Clear aperture

Ø 35.4mm

SKU Canon version

30A189

SKU Nikon version

30A191

GEOPTIK ADAPTER FROM CAMERA LENS TO CCD/CMOS.

GEOPTIK ADAPTER FROM CAMERA LENS TO CCD/CMOS

$127.00 USD

Lens model

  • Canon
  • Nikon

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Optical thickness: 19 mm

Threads

M28.5 x 0.6 Male, M48 x 0.75 Male, M42 x 0.75 Male
