FLAT8 0.72x REDUCER FOR GT102, FLT132, FLT156

$879.00 USD
SKU: WO-P-FLAT8
0

William Optics

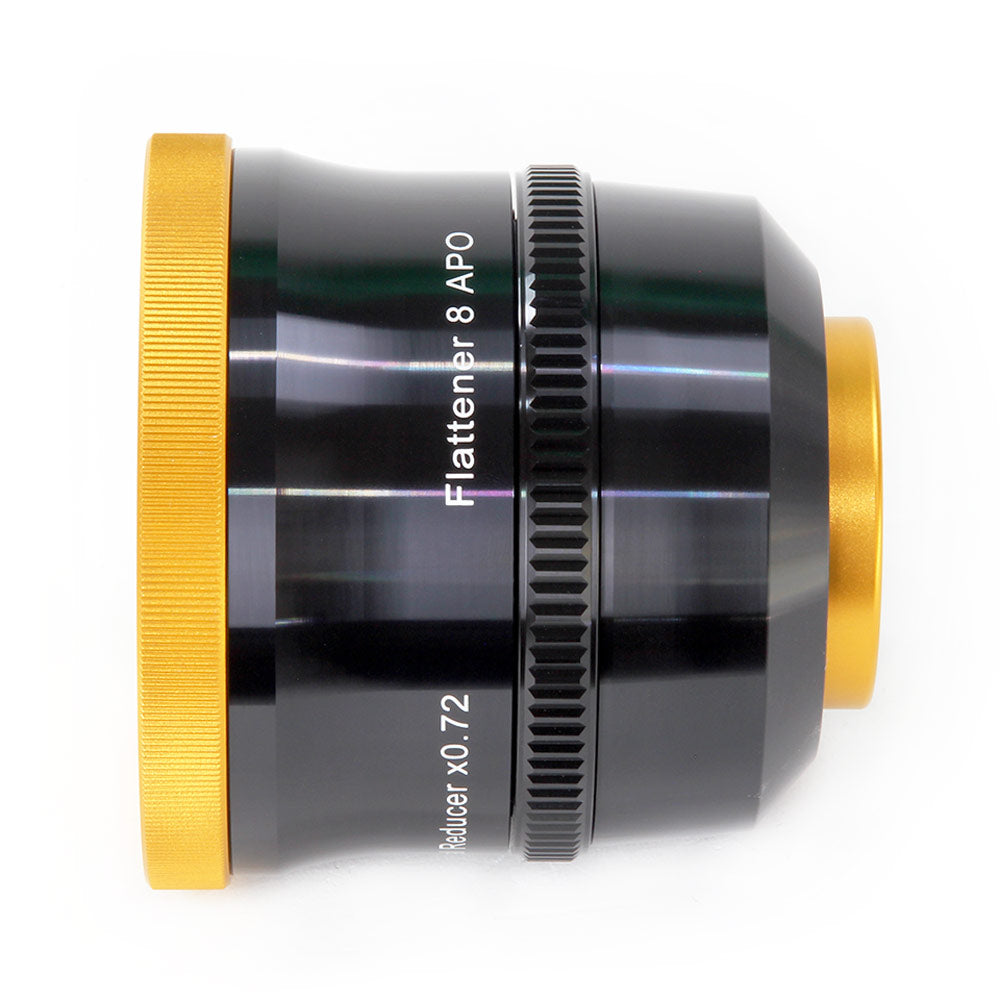

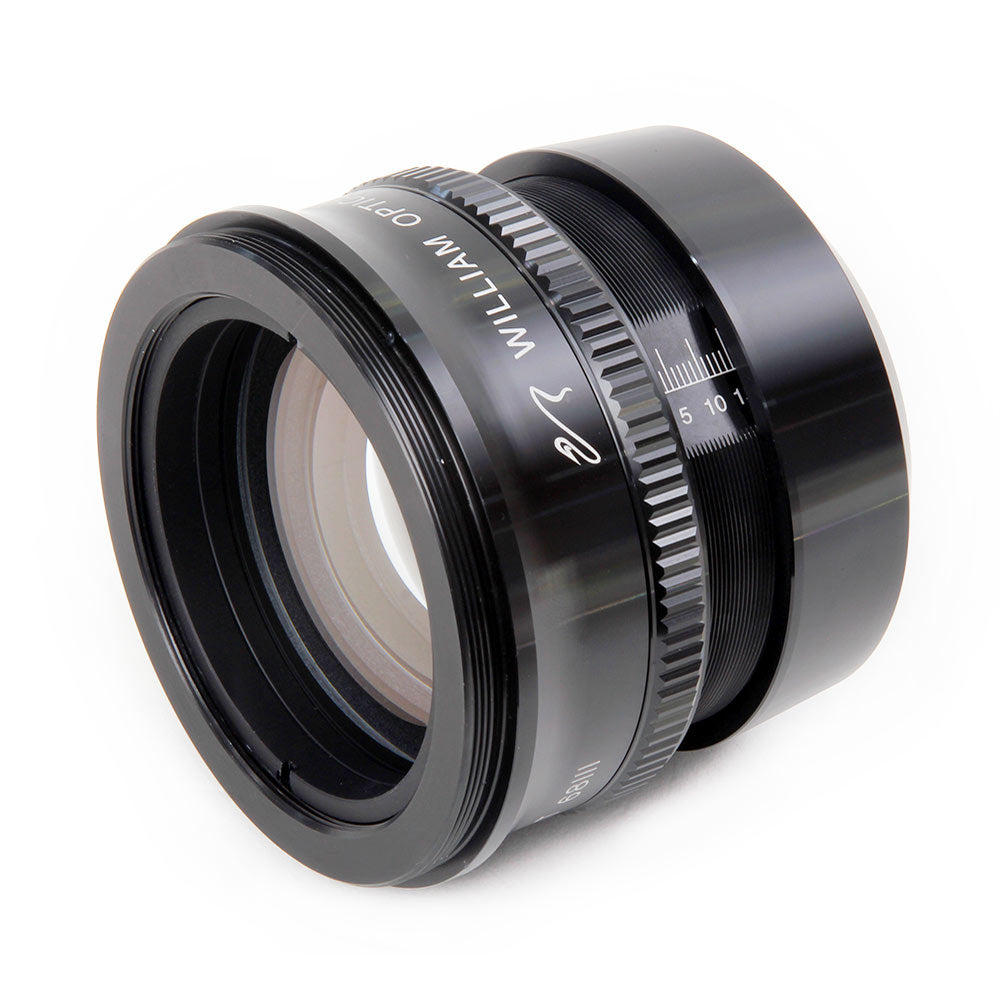

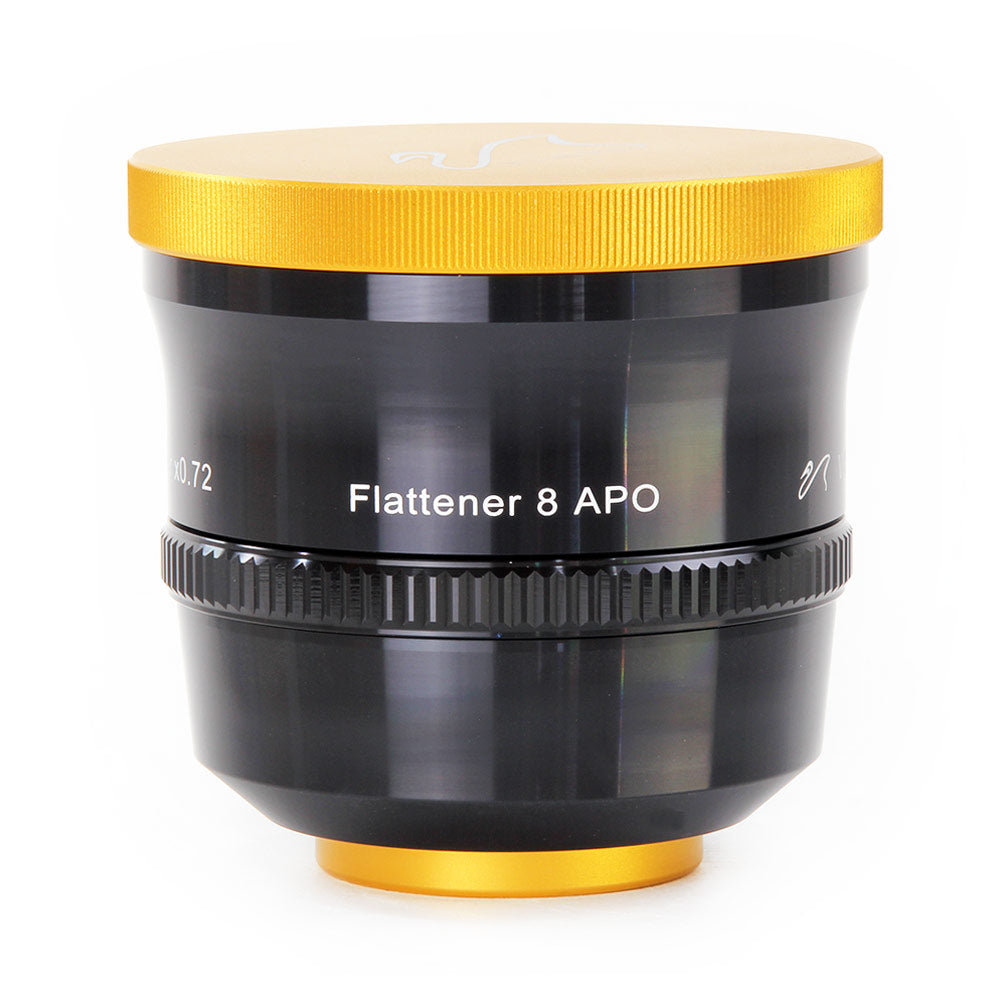

The William Optics Flat8 is an apochromatic triplet 0.72x flattener/reducer with STM-coated Ohara lenses. The 44.4mm image circle makes it a perfect match for full-frame sensors.

The Flat8 features adjustable spacing for use with a range of cameras and imaging systems. The Flat8 includes an M48 filter thread which will hold any standard 2" mounted filter.

Compatible with William Optics FLT132, FLT156, GT102 & GT153 telescopes which have an M92 x 1 thread. On the camera side there is an M48 x 0.75 male thread, which will accept any wide T-ring.

Note: As this is an adjustable flattener, you must adjust the distance for your specific telescope. See the Instructions tab above.



Reduction factor 0.72 x
Telescope connection M92 x 1
Camera connection M48 x 0.75
Image circle 44.4 mm
Backfocus distance 55mm from M48 thread (after adjustment - see Backfocus tab)
SKU WO-P-FLAT8




Note: Once you have unscrewed the rear adapter to the appropriate value in the table below, the remaining backfocus distance to make up will be 55mm from the rear M48 thread.

Distance adjustment needed for correct backfocus

FLT132 8.4 mm
FLT156 5.8 mm
GT102 12.1 mm
GT153 5.4 mm
