DAYSTAR QUANTUM CALCIUM II-K 2Å PE

$14,299.00


DayStar's Quantum range of solar filters are designed for professional and serious amateur applications and offer absolute precision control over wavelength transmission. The PE grade series is designed for professional research studies and applications in which precision homogeneity and on-band transmittance values across the substrate surface are required. These filters require additional quality control steps and additional fabrication and testing time.

DayStar is proud to offer Calcium H (3969Å) and two Calcium K-line (3933.7Å) filtering systems. Traditionally, university research has employed the Calcium K line for studies of Calcium on the Sun. These studies have been instrumental in determining depth of the solar atmosphere. Calcium offers TWO strong absorption lines at 393.3nm and at 396.9nm, known as the K and H lines.

DayStar's new Quantum controls on Calcium II K line are perfectly suited for academic studies in mapping the 3-dimensional structure of the Chromosphere. By controlling wing shift of the Ca II K line filter with precision accurate to 0.1Å, studies can depict intensity differences between the K3, K2 and K1 lines. Observation of the complicated structure of subordinate peaks offer views through different levels in the solar atmosphere.



DayStar 2.0 Å Calcuim K-line solar filtergrams

DayStar 2.0 Å Calcuim K-line filtergrams taken June 8, 1982 with a 125mm aperture telescope at 3000mm prime focus.

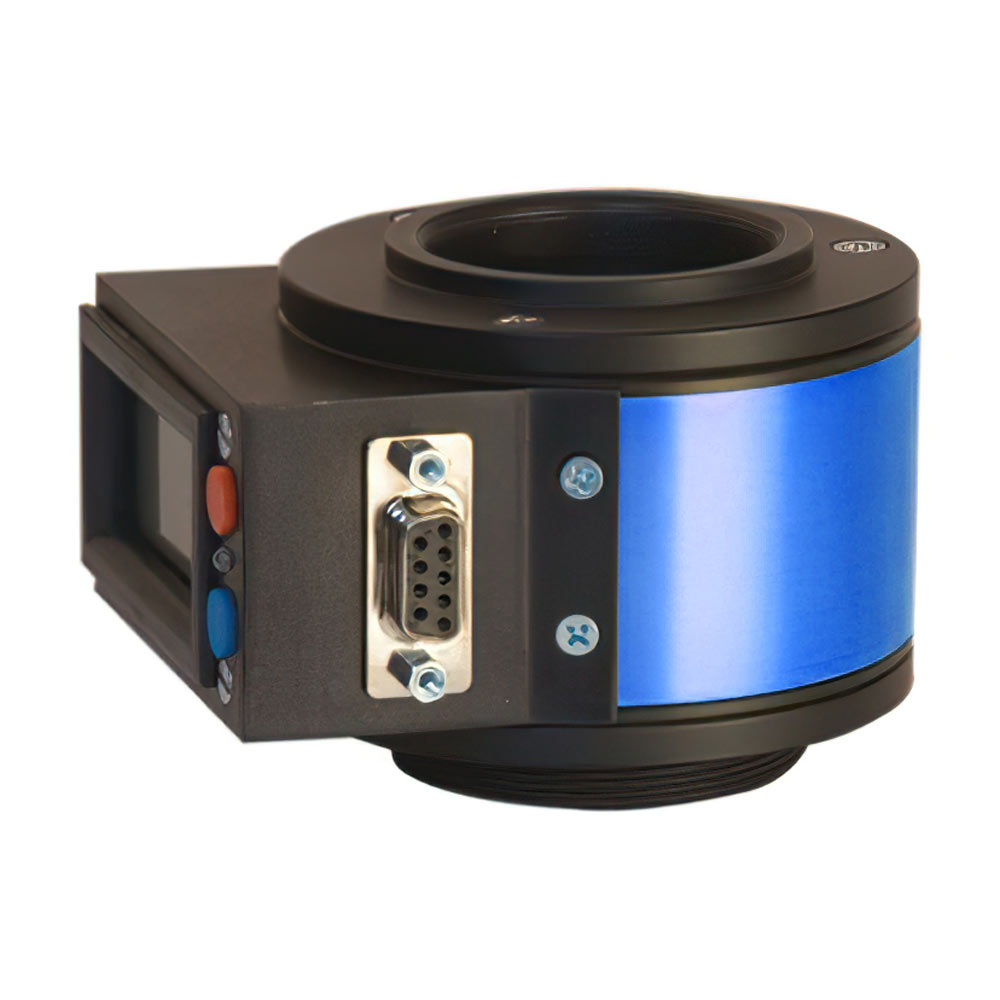

The precision Quantum housing incorporates ALL of the desired features for today's solar astronomer... and then some. Operation couldn't be simpler, just plug it in and a green light indicates when the filter is on-band.

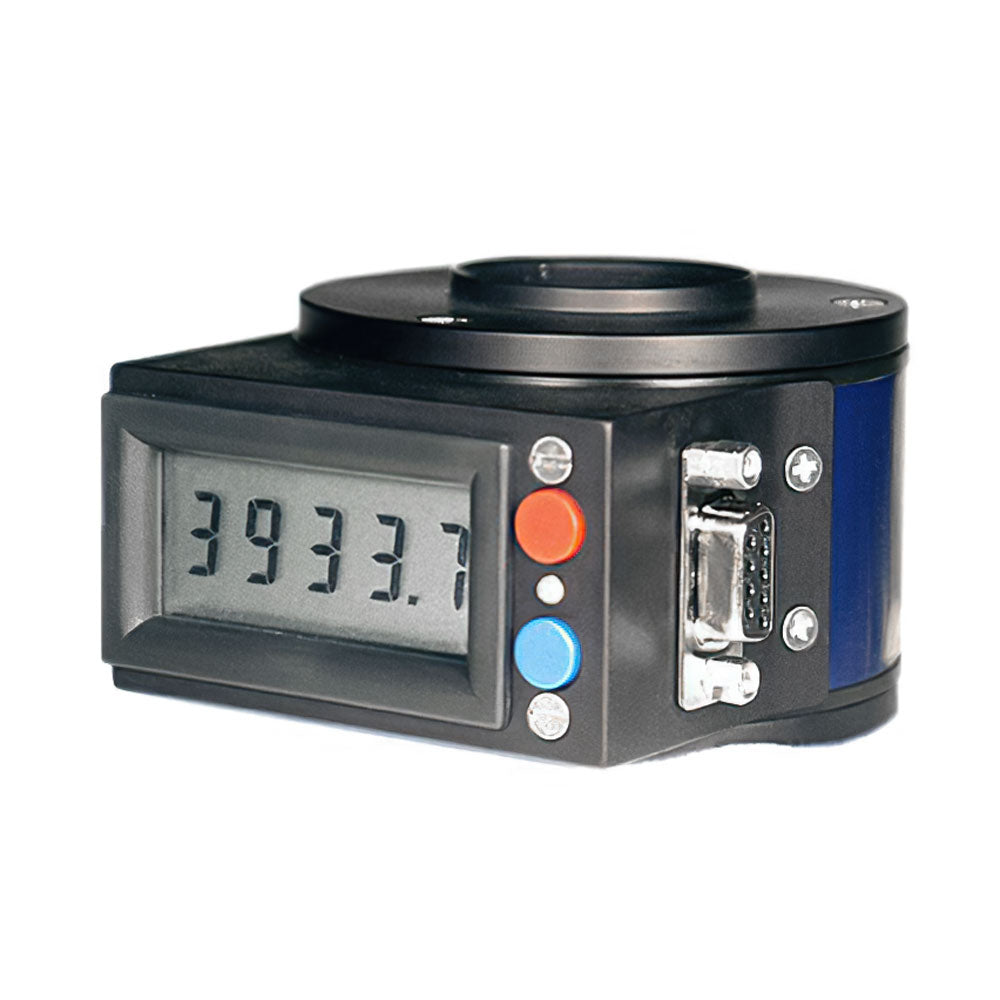

The housing offers live LCD readout of the filter's wavelength output (accurate to 0.1Å) and red /blue wing shift buttons that can precisely tune wavelength up or down for Doppler studies. The unit operates at 12VDC for field or battery use and includes a serial port for computer control capability for on-screen display of filter readout.

PE grade filters are manufactured and qualified to a spectral uniformity in CWL (Central Wavelength) accuracy of ± 0.05 ångström. DayStar's high resolution etalon mapping equipment offers qualification certified accurate by independent testing with etalon transmission sample sizes of 5mm, 2mm or 1mm sample sizes with certification printouts available on new PE filter purchases.



DAYSTAR QUANTUM CALCIUM II-H 5Å PE spectrum
