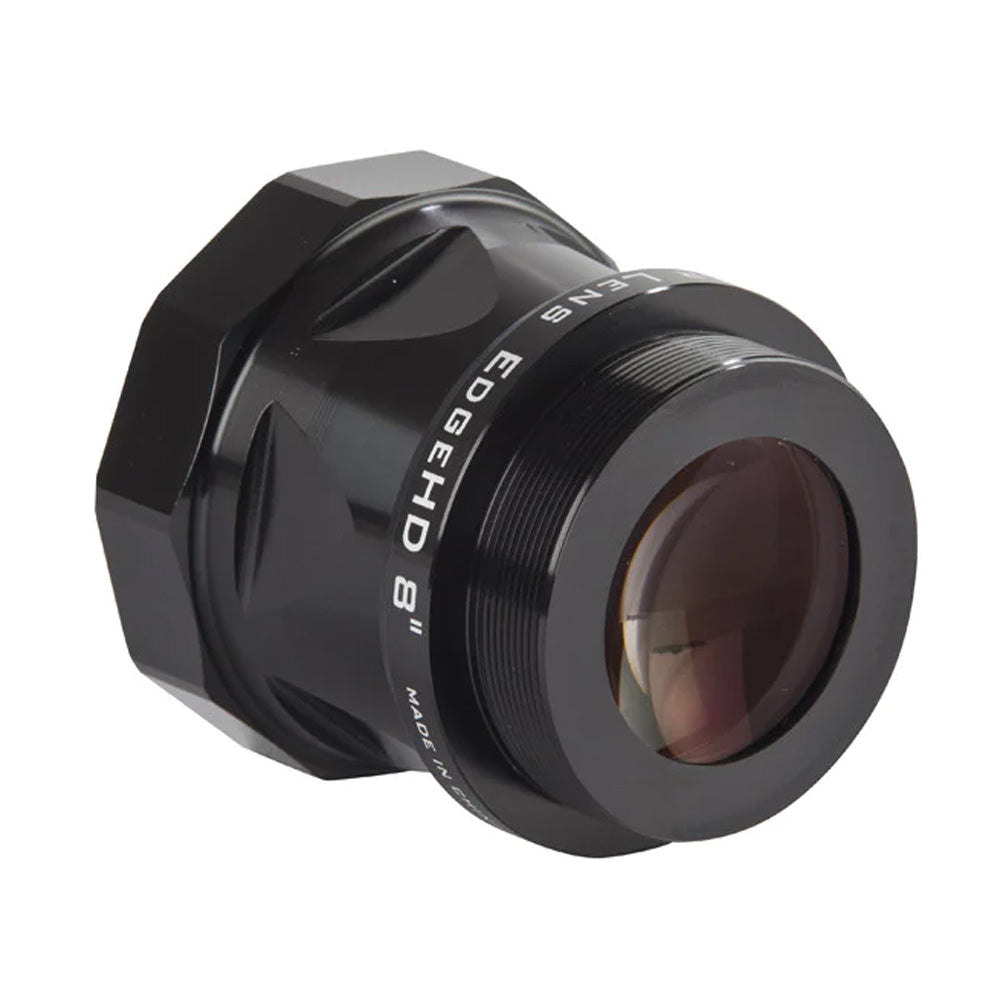

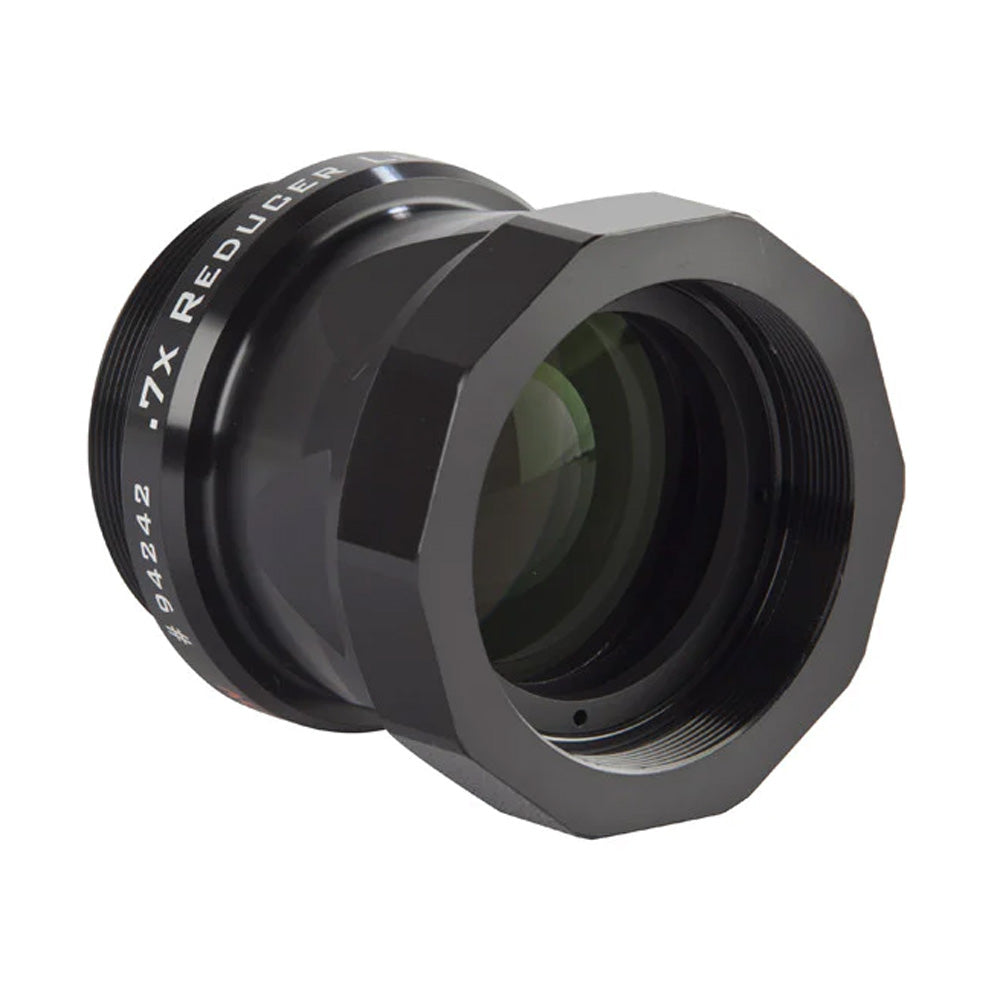

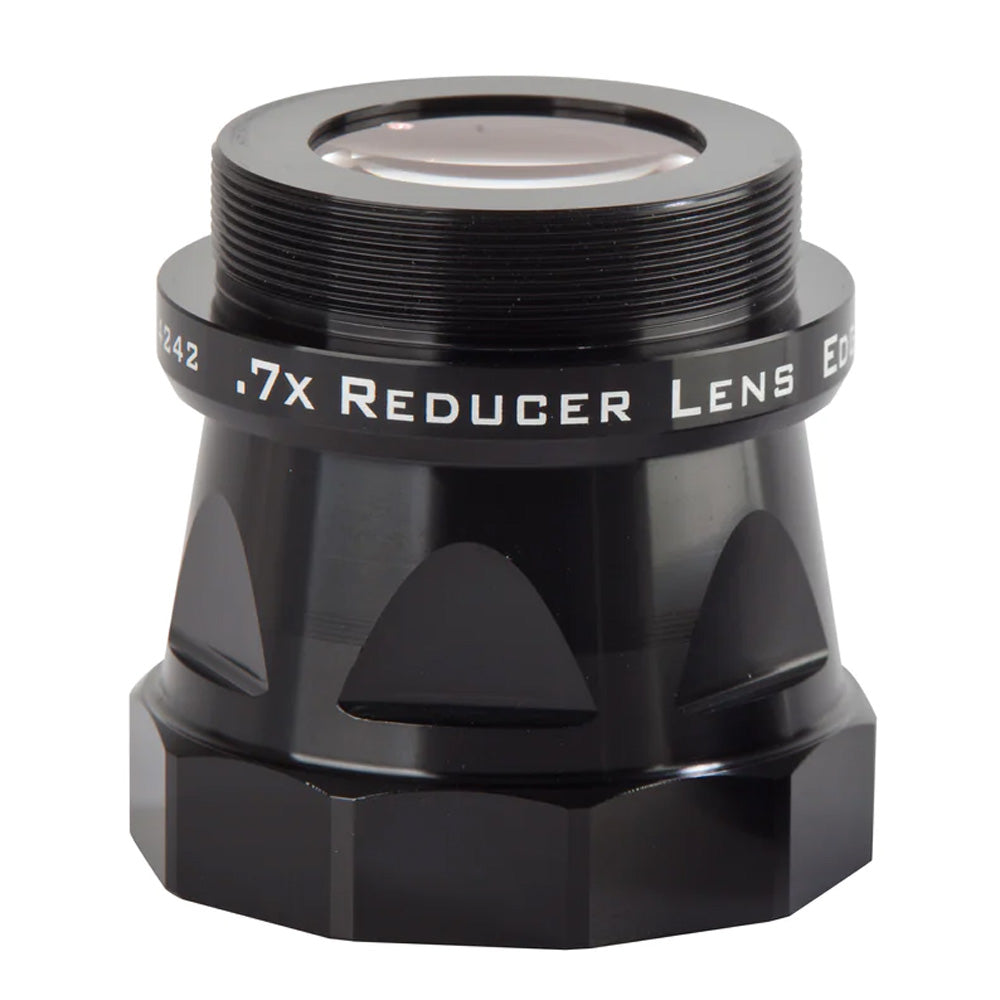

CELESTRON 0.7x REDUCER FOR EDGEHD 800

Regular price $799.00AUD
SKU: CE-94242

Celestron




The Celestron EdgeHD 800 0.7x Reducer is a 4-element corrector for the EdgeHD 8" telescope. The flattener/reducer uses extra-low dispersion lanthanum glass elements for excellent chromatic correction and high contrast. The 0.7x reduction factor shortens the focal ratio of the EdgeHD 8" to f/7, halving the exposure time and increasing the field of view by 43%.

When paired with this flattener/reducer, the focal length of the EdgeHD 8" becomes 1422mm, giving an excellent field of view for galaxies. The flattener/reducer has a backfocus requirement of 105mm, leaving plenty of room for accessories. The field correction is suitable for APS-C sensors such as the ASI2600.

All air-to-glass optical surfaces have multiple layers of coatings for maximum light transmission and colour correction. Additionally, each lens has blackened edges to minimize internal reflections and maximize contrast. The CNC-machined aluminium housing keeps the elements secure and precisely aligned.

Specifications



Reduction factor 0.7 x
Telescope connection 2" SC female
Camera connection 2" SC male
Image circle APS-C
Backfocus distance 105 mm
Weight 360 g
SKU CE-94242
Downloads



PDF Icon Small EdgeHD 800 0.7x Reducer manual
