Astronomy Specialist

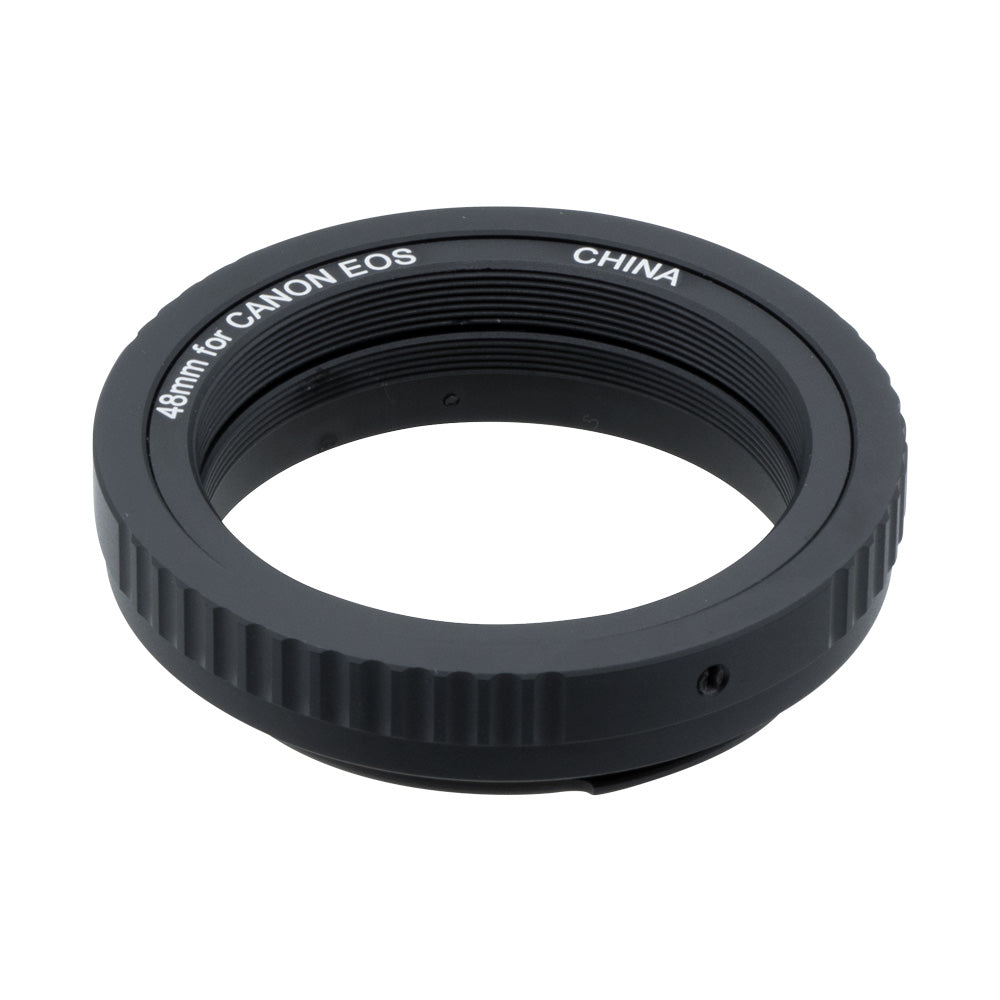

CANON WIDE T-RING ADAPTER [M48]

$49.00AUD
SKU: SWA-TM48-EOS

Skywatcher

  • Optical thickness: 10.8 mm



The Canon EOS wide T2 adapter has a M48 thread that is ideal for full frame cameras

The standard T2 ring uses a M42 thread that is suitable only for Canon Cameras with APS sensor. Full frame sensors have a diagonal of 43.3mm which which is wider than the 42mm thread of standard T2 ring. Using a T2 ring on full frame cameras will cause vignetting.

This adapter suit the majority of Canon EOS cameras.

It is not compatible with Canon cameras with M mount or RF mount.



Specifications



Telescope side connection M48 female

Camera connection

Bayonet for Canon EOS EF mount

Optical thickness

10.8mm

Material
 Anodised aluminium
Weight 41 gr

SKU

SWA-TM48-EOS



CANON WIDE T-RING ADAPTER [M48].

CANON WIDE T-RING ADAPTER [M48]

$49.00AUD

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Optical thickness: 10.8 mm

Threads

M48 x 0.75 Female
