BAADER T2 FOCAL ADAPTER FOR 2" RECEPTACLE

$40.00 USD
SKU: BA2408150

Baader Planetarium

  • 2" Barrel
  • M42 x 0.75 Male
  • M42 x 0.75 Female
  • M48 x 0.75 Male
  • M42 x 0.75 Female
  • Optical thickness: 2.5 mm

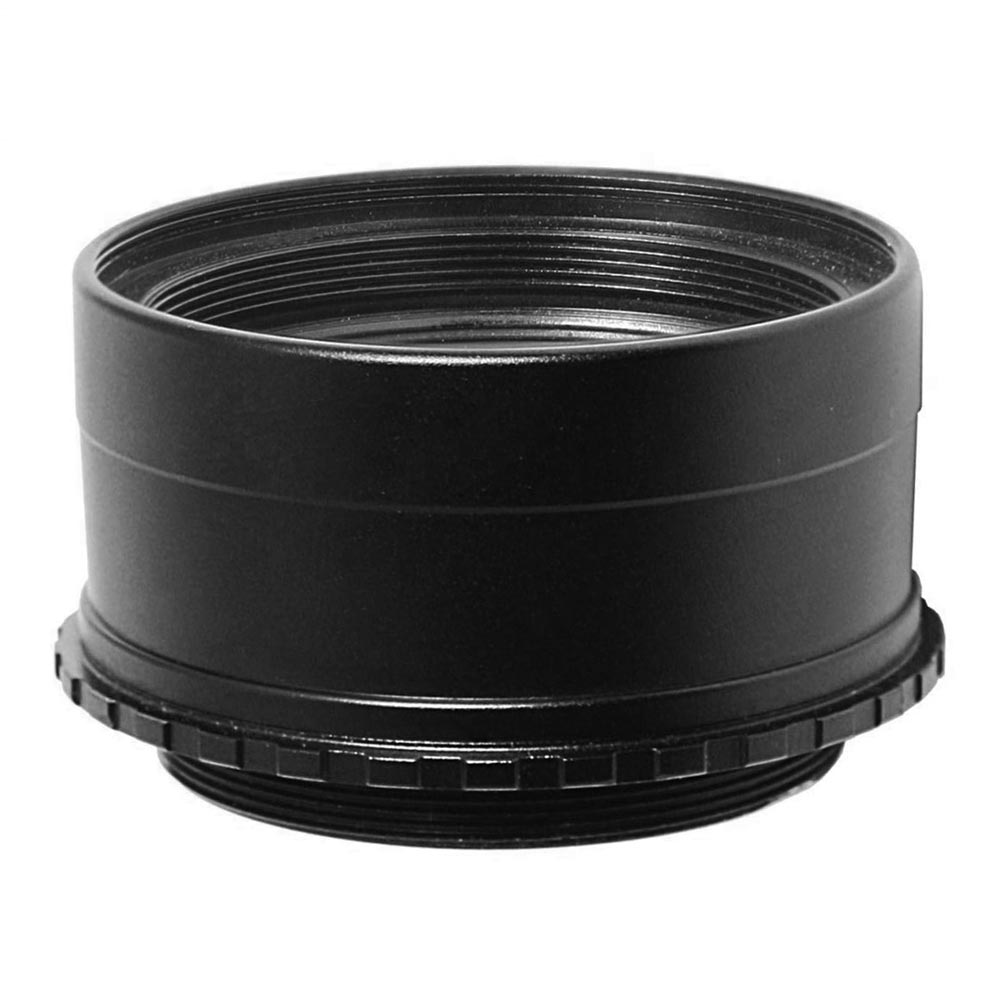

The Baader T2 focal adapter fits into any 2" receptacle and has a T2 male thread on the camera side. This allows you to adapt any cameras via the T2 connection. The T2 (M42x0.75) thread allows easy connection of all commercially available cameras via a T2 ring.

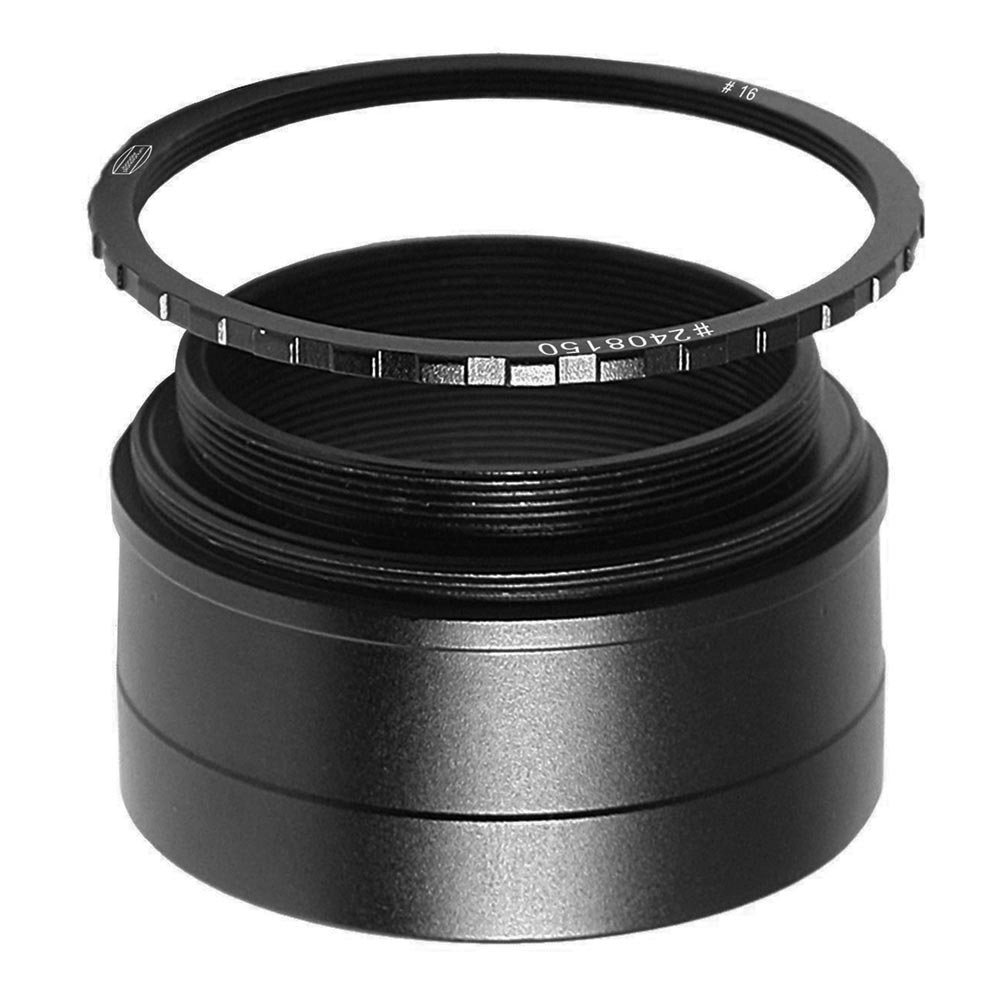

The adapter has a screw-in thread at the base for 2" filters. The adapter offers a T2 internal thread also on the telescope side. The 2" nose piece barrel with safety groove has a thread for 2" filters (M48 thread) and a countersunk T2 thread for a variety of adaptions such as adapting to T2 binoviewers.





Telescope connection inner
Filter thread M48 x 0.75, T2 (M42 x 0.75)
Telescope connection outer Barrel, 2" (50.8 mm)
Camera connection outer T2 (M42 x 0.75), M48 x 0.75
Inner diameter 38 mm
Outer diameter 54 mm
Optical thickness 2.5 mm
SKU BA2408150

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
BAADER T2 FOCAL ADAPTER FOR 2" RECEPTACLE.

BAADER T2 FOCAL ADAPTER FOR 2" RECEPTACLE

$40.00 USD

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Optical thickness: 2.5 mm

Threads

2" Barrel, M42 x 0.75 Male, M42 x 0.75 Female, M48 x 0.75 Male, M42 x 0.75 Female
