Astronomy Specialist

BAADER T-RING FOR SONY ALPHA / MINOLTA AF DSLR CAMERAS

$36.00 USD
SKU: BA2408334

Baader Planetarium

  • M42 x 0.75 Female
  • S52 Dovetail
  • Optical thickness: 8.3 mm

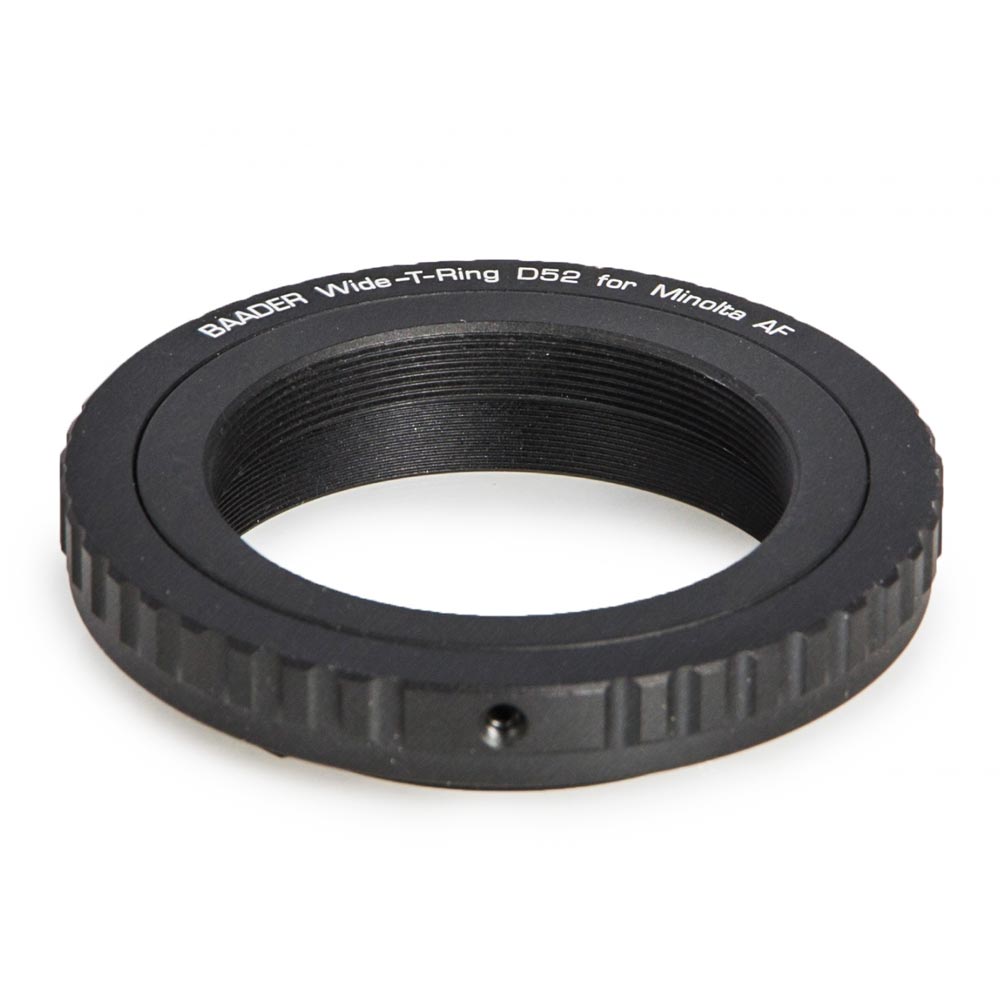

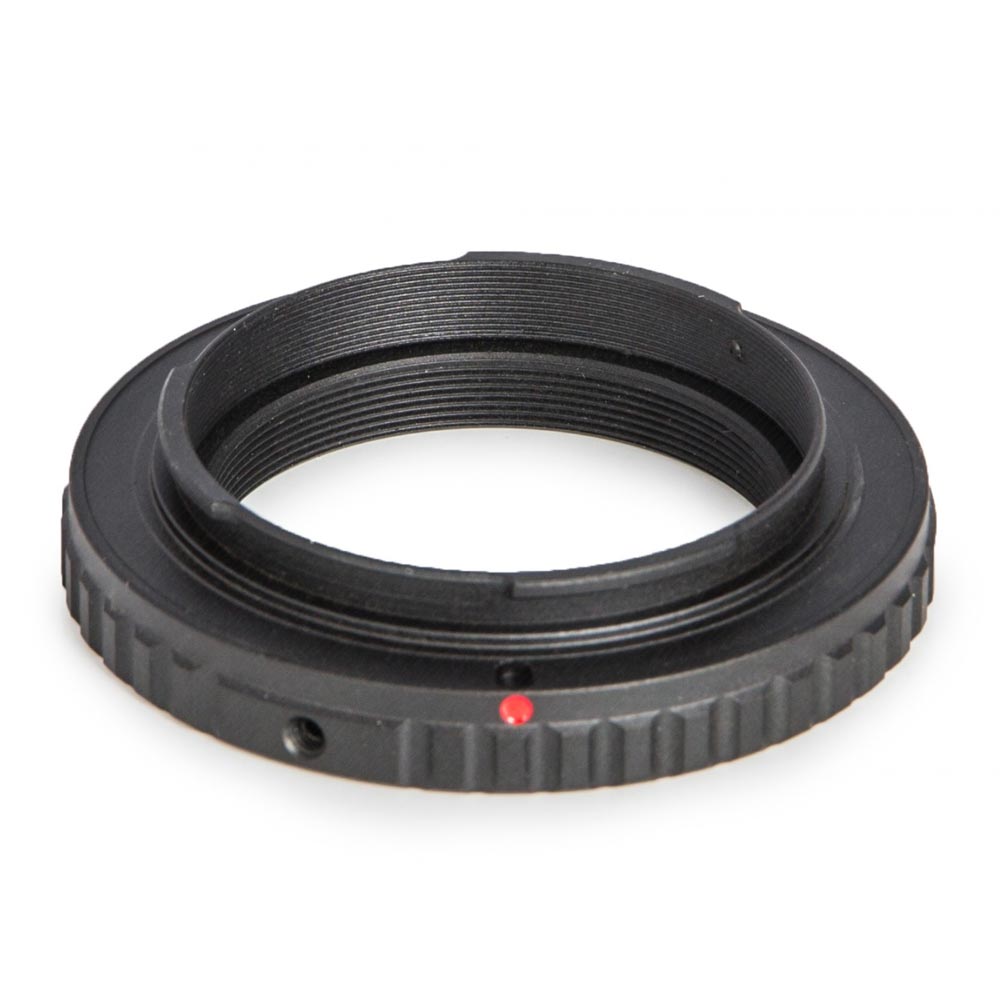

The Baader Wide-T-Ring allows connecting Sony Alpha cameras to the T2 thread. You can remove the T2 insert with the supplied hex wrench, then an S52 dovetail receptacle for various connections is at your disposal.


The ring can be replaced with various other connections (sold separately):

  • 2" adapter with M48 x 0.75 filter thread. With adapter # 2958551 you can attach the Wide-T-Ring directly to the 2" without the T2 bottleneck. The M48 x 0.75 thread on the other side of this adapter allows to screw standard 2" filters.
  • Connection to the M68 x 1 (Zeiss type) thread. With adapter # 2458252 you can attach the Wide-T-Ring directly to focusers and adapters with the female M68 x 1 thread.
  • Connection to the Baader UFC Filter Chamber System. With adapter # 2459119 you can attach the Wide-T-Ring directly to the Baader UFC (Universal Filter Changer) System.



Camera connection

Minolta AF mount

Telescope connection

T2 (M42 x 0.75) female thread and S52 dovetail ring

Optical thickness

8.3 mm




BAADER T-RING FOR SONY ALPHA / MINOLTA AF DSLR CAMERAS.

BAADER T-RING FOR SONY ALPHA / MINOLTA AF DSLR CAMERAS

$36.00 USD

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Optical thickness: 8.3 mm

Threads

M42 x 0.75 Female, S52 Dovetail
