BAADER SOLAR CONTINUUM FILTER 540nm 7.5nm

$189.00
SKU: BA2961580

Baader Planetarium

  • 7.5 nm


Diameter



The Baader 7.5nm Solar Continuum filter is designed for high resolution solar observation and imaging of the photosphere.

Warning: The Solar Continuum Filter may be used for purely VISUAL observation ONLY in conjunction with the Baader Herschel Prism or with the Baader AstroSolar Safety Film OD 5.0. For photography, you must use AstroSolar Photo Film OD 3.8.





The filter has an 7.5nm half-bandwidth around 540nm. As the blue and red ends of the spectrum are excluded, the finest surface detail and granulation in the photosphere can be captured. This is particularly noticeable in refractors and SCTs, where the optics are sharpest at this wavelength and free of chromatic aberrations. Compared to the previous 10nm version, this new filter has much more contrast and gives comparable performance to the previous double-stacked 10nm continuum filters.

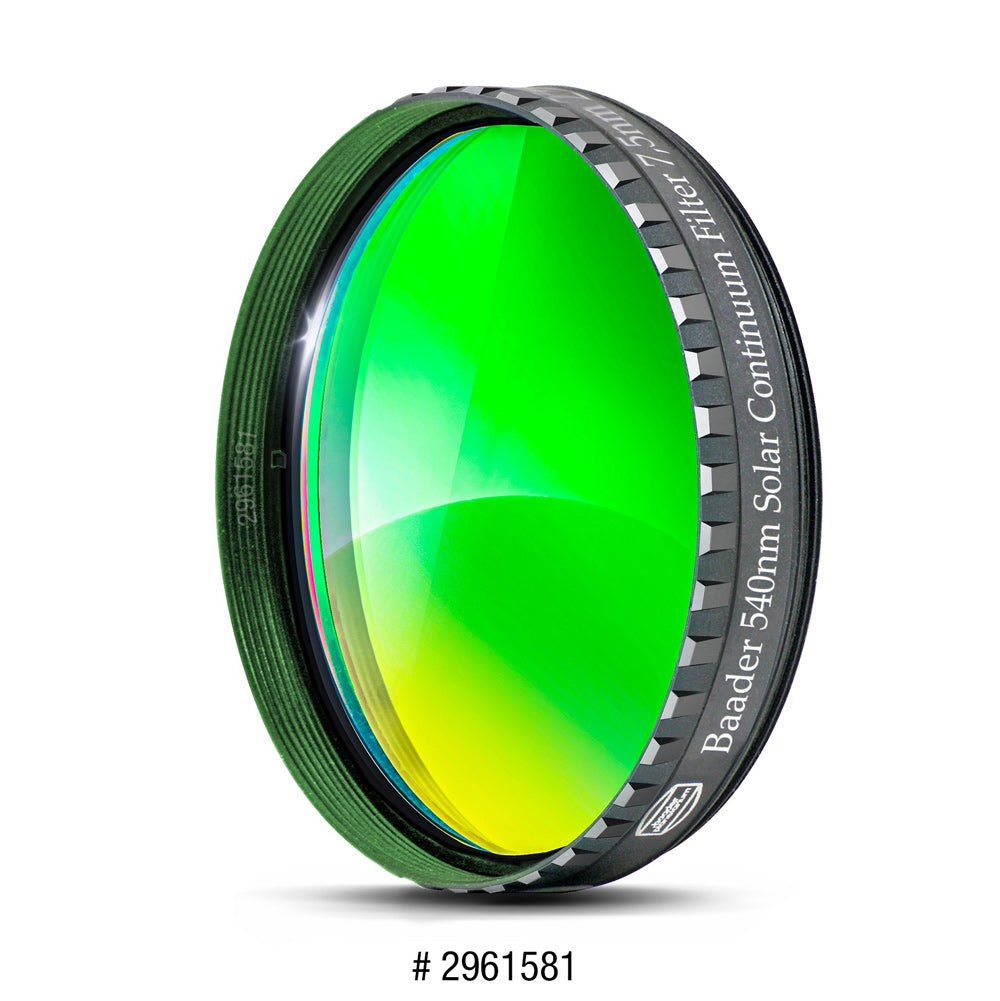

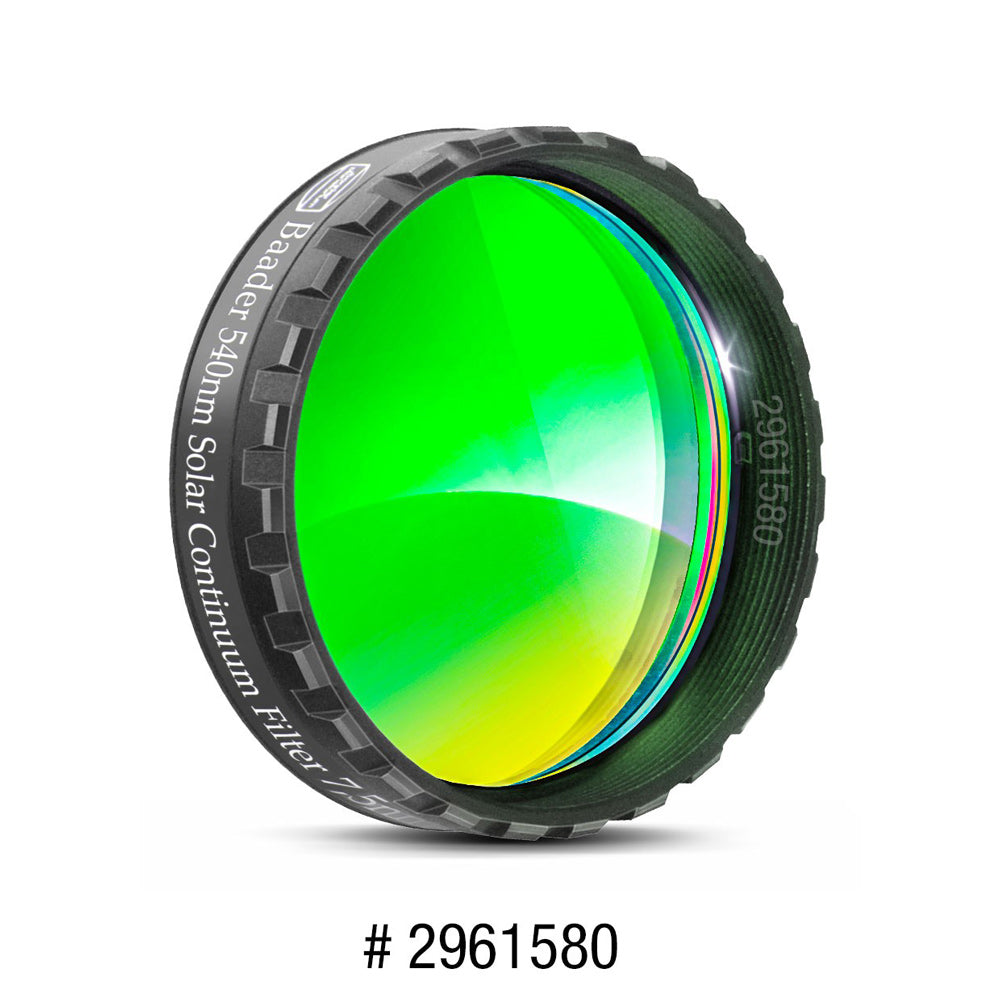

Available in either 1.25" or 2" mounted. All Baader filters (excluding 100 x 100mm) come in stackable labelled filter boxes which can be attached to each other to form a sturdy filter library. The 7.5nm Solar Continuum filter is included as standard with the new Baader Herschel Prism Mark II.

Specifications



Transmission range
535 - 544 nm
Half-bandwidth 7.5 nm
Central wavelength
540 nm
AR-coating
Dielectrically coated, planeoptically polished
Filter thickness 2 mm (without cell), 6 mm with cell
Filter size 1.25" / 2" mounted
SKU BA2961580 (1.25"), BA2961581(2")
BAADER SOLAR CONTINUUM FILTER 540nm 7.5nm.

BAADER SOLAR CONTINUUM FILTER 540nm 7.5nm

From $189.00

Diameter

  • 1¼"
  • 2"

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Threads

Cooled

Colour or Mono

Pixel size

Sensor dimensions

Resolution

Sensor diagonal

Quantum efficiency

Read noise

Fullwell capacity

Bit depth

FPS

Camera backfocus

Filter size

1.25", 2"

Filter size

1.25", 2"

Bandpass (FWHM)

7.5 nm

Bandpass (FWHM)

7.5 nm

Glass thickness

2 mm
