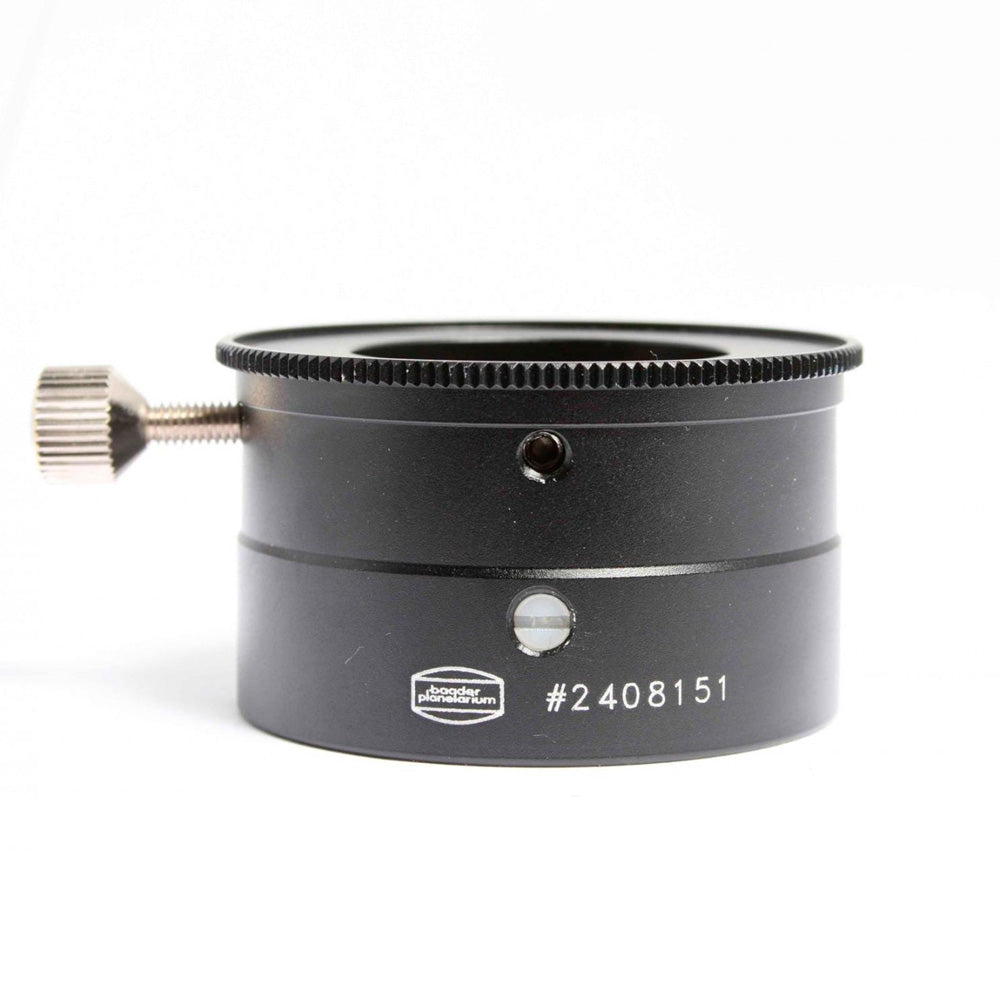

The Baader Pushfix adapter 2" to 1.25" securely holds 1.25" eyepieces and accessories and adapts them to a 2" barrel. Its low profile of only 1mm makes it ideal for Newtonian Crayford focusers which have limited outward focus. The Pushfix offers three different ways for securing a 1.25" accessory:
- Classic reducing piece: clamping with thumbscrew and bronze compression ring.
- Semi-Permanent 1.25" to 2" conversion with counter-sunk locking screw against bronze compression ring.
- The Pushfix quick changer: three radiused nylon pressure screws that can be easily adjusted. Allows pushing eyepiece with little pressure into the Pushfix adapter - holds the eyepiece without needing to turn additional clamping screws.
The side clamping screw and brass clamping ring allow for a secure grip. Also includes countersunk grub screws for permanent or quick release operation of the brass clamping ring.
The countersunk Delrin grub screws allow for the pressure to be set correctly. This acts as a quick release without relying on set screws. When an eyepiece is inserted it is held securely and safely while still allowing the eye piece to be removed.
||31.75 mm (1.25")
|Connection telescope side||M42 x 0.75 (T2), M48 x 0.75, 2" barrel|
|Connection eyepiece side||1.25" with 3 clamping screws|
