BAADER PAN-EQ-CLAMP V190 SADDLE
Baader Planetarium
BAADER PAN-EQ-CLAMP V190 SADDLE is backordered and will ship as soon as it is back in stock.

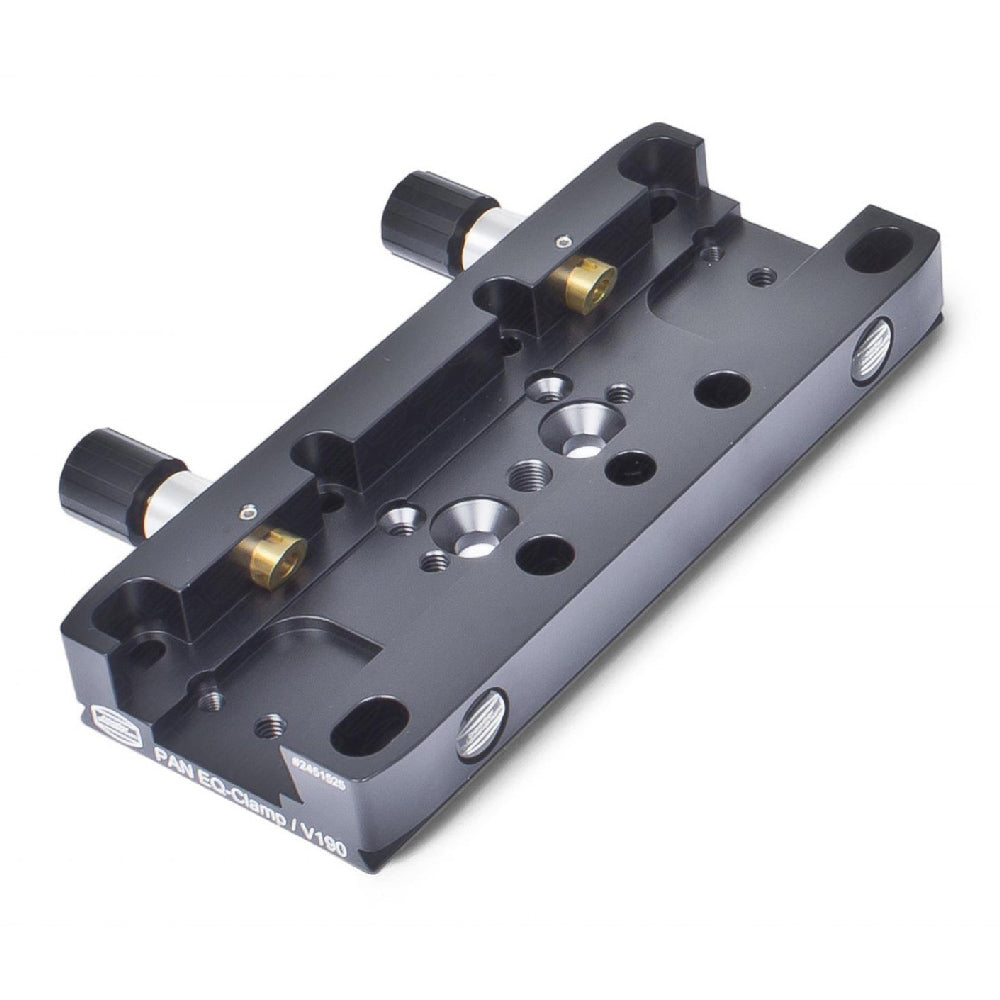

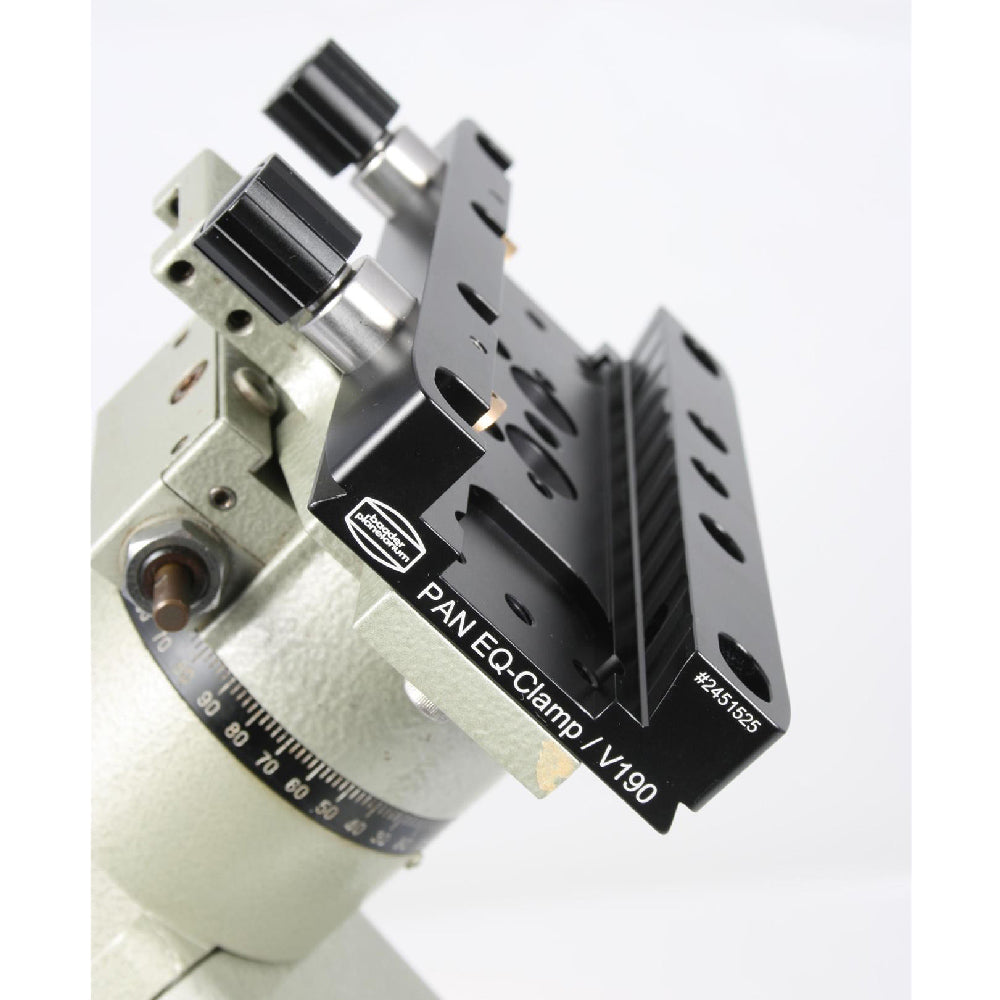

The Baader PAN-EQ-Clamp V190 is an ultra-rigid saddle for Vixen-style dovetail bars. The bottom side is pre-drilled to be compatible with a variety of premium mounts such as Takahashi, Vixen, 10 Micron, Astro-Physics, Celestron and more.
The shape of the saddle is optimized to have as many contact points as possible for a perfect grip. The two stepped brass terminal blocks are wide enough to provide enough clamping force for large telescopes. The thumb knobs are positioned above the mounting surface so they do not interfere with the mount.

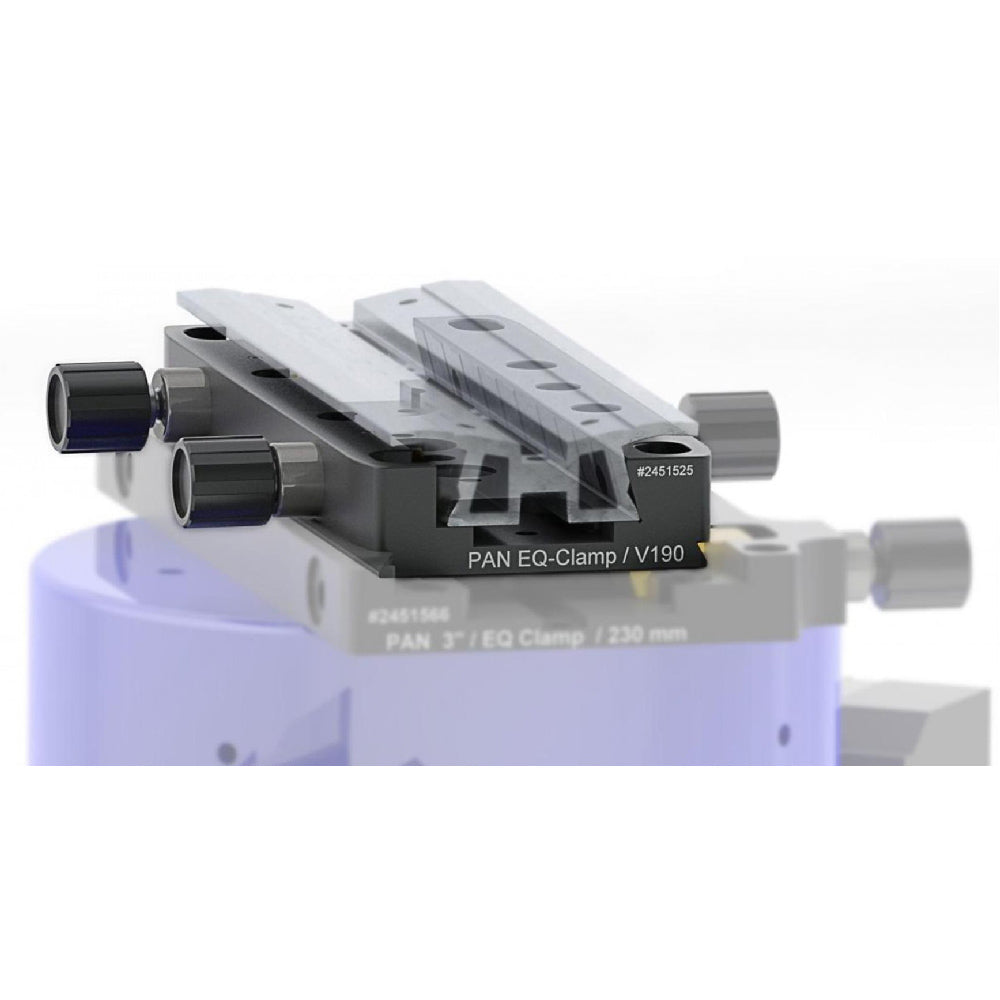

The PAN-EQ-Clamp V190 can also be attached to standard Losmandy-type dovetail saddles thanks to the bottom side being effectively a 3" dovetail plate. This allows you to easily adapt a Losmandy-type saddle to a Vixen-type dovetail bar.
Specifications
| Length |
190 mm |
|---|---|
| Width |
81 mm (total), 3" (bottom) |
| Weight |
640 g |
| Compatible dovetails |
44 mm Vixen |
| Threads drilled for |
10 Micron, Astro-Physics, Baader GuideScope Rings, Baader Stronghold, Celestron C8, Takahashi, Vixen |
| SKU | BA2451525 |
Downloads
 Instruction manual
|
