BAADER NEODYMIUM MOON & SKYGLOW FILTER

$145.00AUD
SKU: BA2458305A

Baader Planetarium


Size



The Baader Neodymium Moon & Skyglow filter increases contrast drastically without loss of brightness, making surface detail on Jupiter, Mars, the Moon as well as many deep sky objects much more prominent. Based on the original filter by Carl Zeiss, neodymium glass cuts through skyglow and boosts the red parts of the spectrum. It also cuts UV/IR, letting through light only where optics are their sharpest (especially with refractors). Unlike many light pollution filters available, these filters do not introduce any halos.

The optical surface is fine-optically polished so that there is no loss of sharpness at high magnifications, even when the filter is positioned far in front of the focal point. They can even be put in front of a binoviewer without introducing astigmatism. The surfaces feature 7-layer Phantom Group and 27-layer dielectric UV/IR coatings to minimize ghosting, reflections and stray light scattering, which can ruin the fine details on planets.





Note: Baader Neodymium filters are only 1mm thick, so will change backfocus requirements when used with more common 2-3mm thick imaging filters. This is because the absorption of the extra neodymium ions would be too great in thicker glass, which would lead to less brilliance in the resulting image.

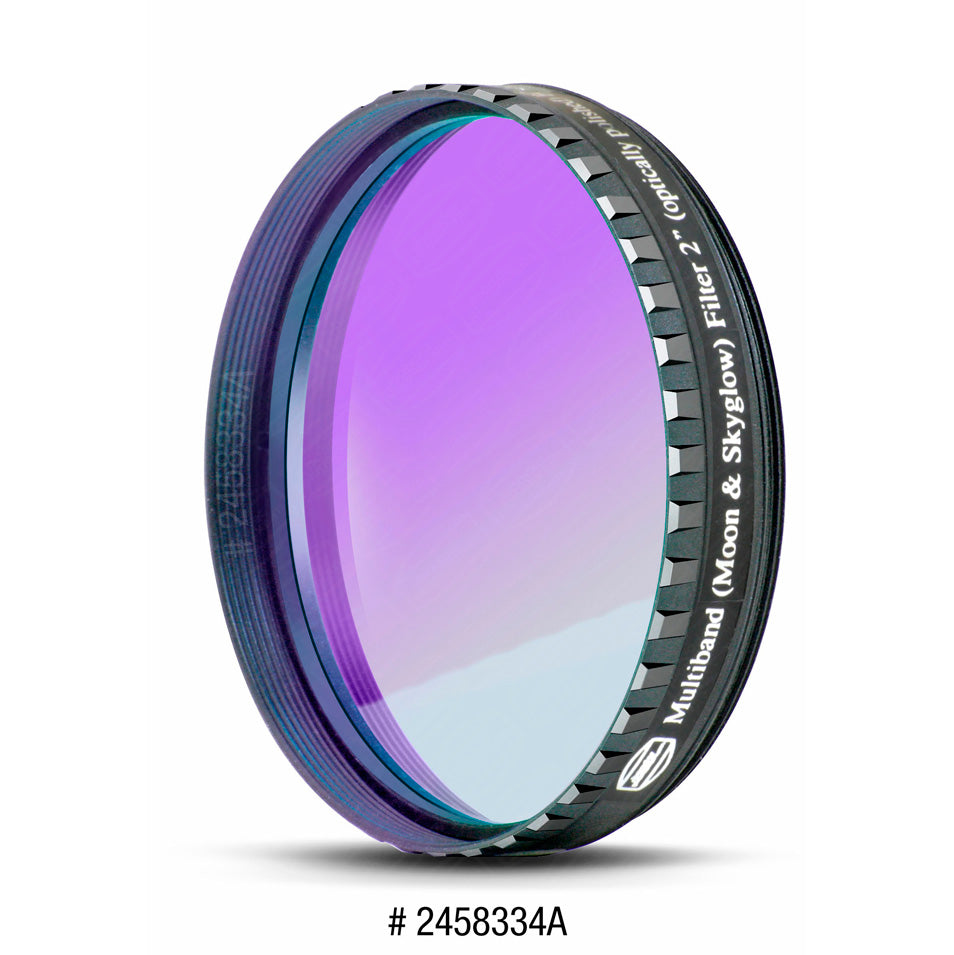

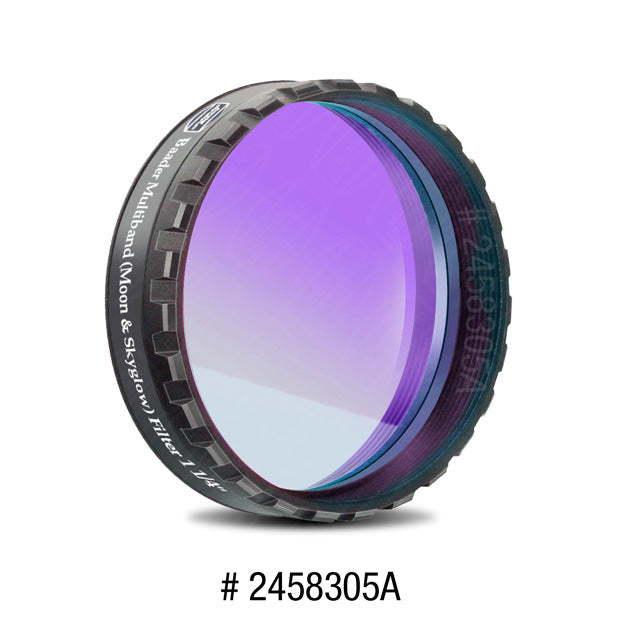

Available in either 1.25" or 2" mounted. The filter cell is threaded on both ends so that multiple filters can be stacked. All Baader filters (excluding 100 x 100mm) come in stackable labelled filter boxes which can be attached to each other to form a sturdy filter library.

Specifications



Transmission range

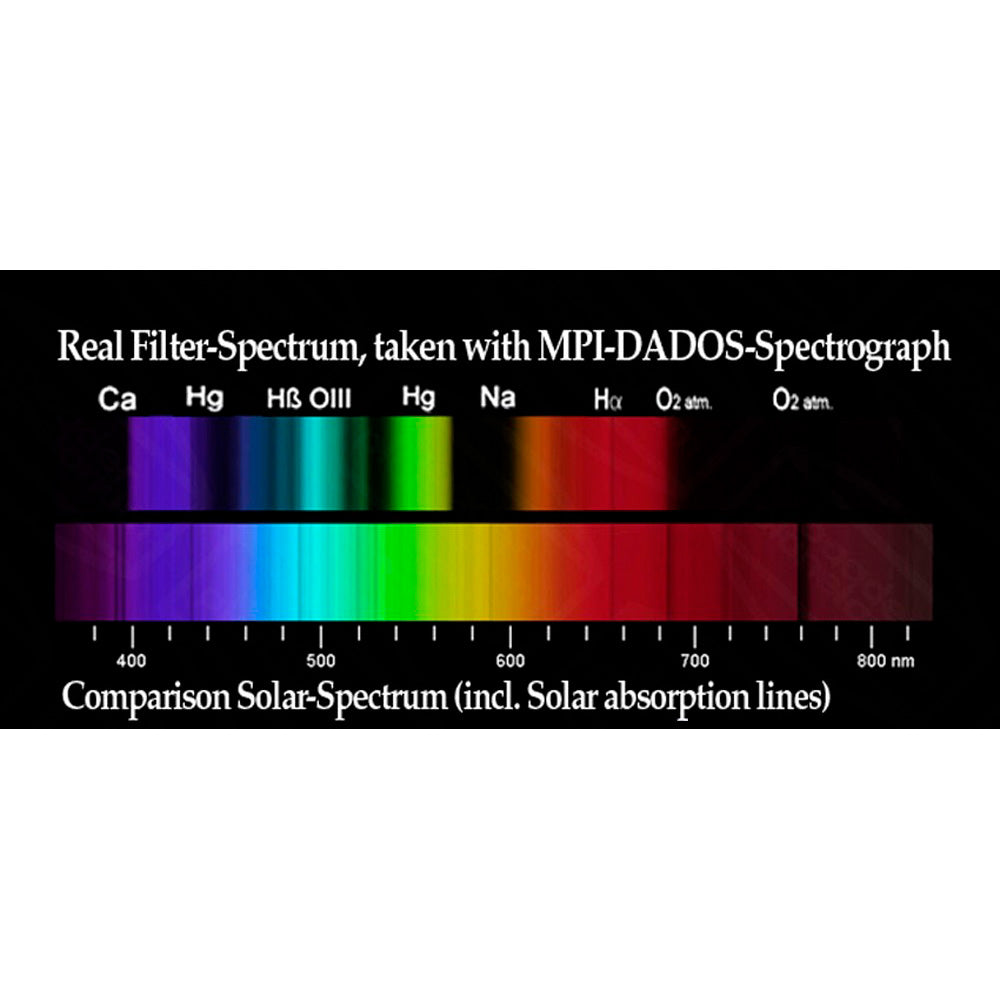

Multiple bands - see spectrum image
Type of filter
Bandpass
Usage
Contrast enhancement, light pollution reduction
AR-coating
Phantom Group coating, planeoptically polished
Filter thickness 1 mm (without cell), 6 mm with cell
Filter size 1.25" / 2" mounted
SKU

BA2458305A (1.25"), BA2458334A (2")
