BAADER FOUR-IN-ONE ADAPTER M68/T-2/M68

$98.00 USD
SKU: BA2458225

Baader Planetarium

  • 2" Barrel
  • M56 x 1 Female
  • M60 x 0.75 Male
  • M68 x 1 Male
  • 2.7"-24 Male
  • M68 x 1 Female
  • 2" SC Male
  • M42 x 0.75 Male
  • M42 x 0.75 Female
  • Optical thickness: 14 mm

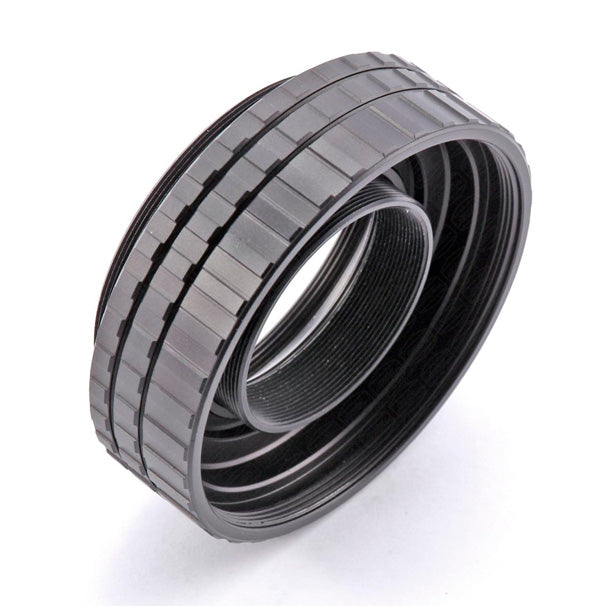

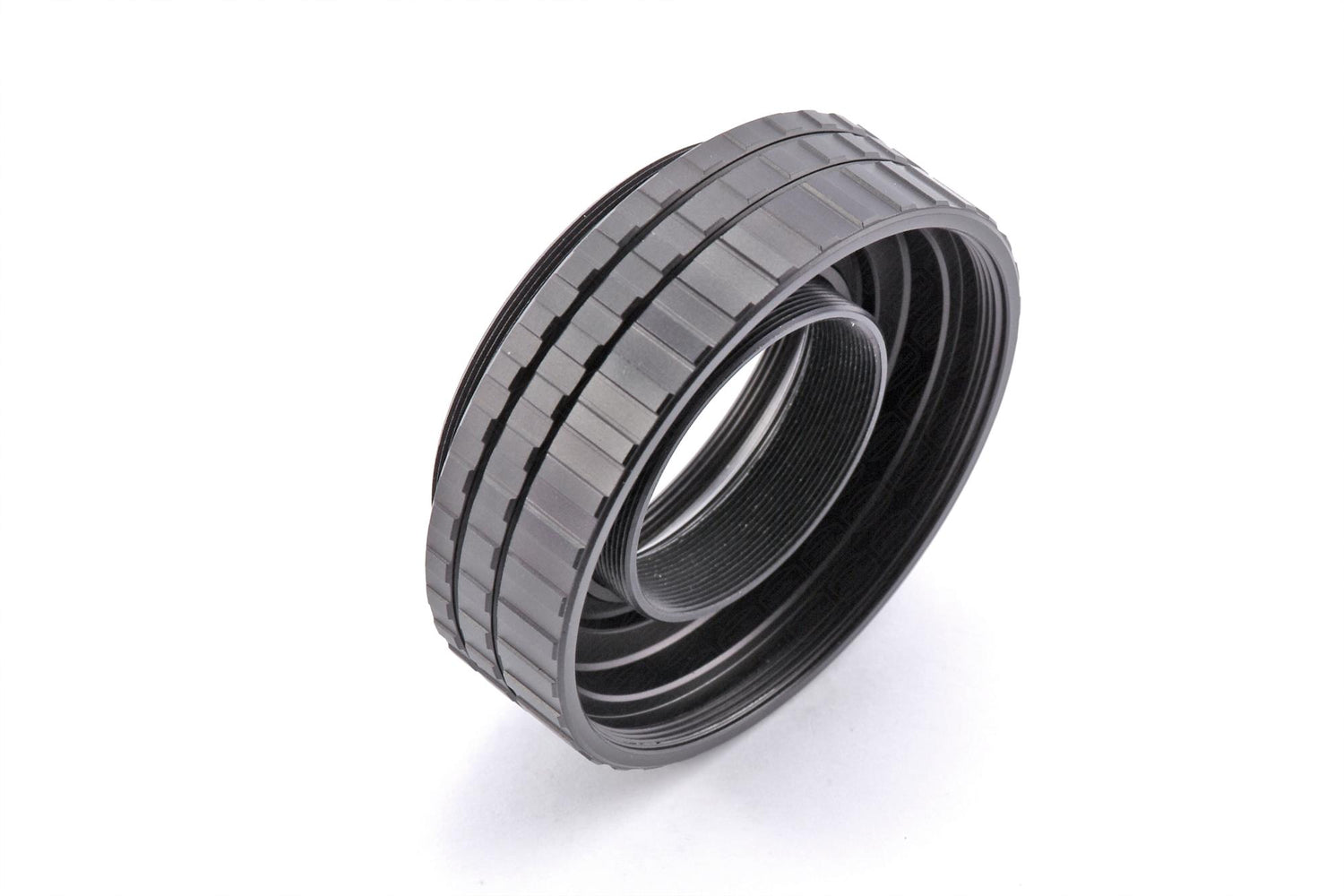

The Baader M68/T2/M68 four-in-one adapter allows you to connect accessories with T2 (M42 x 0.75) or male M68 x 1 threads to telescopes with a variety of thread types.

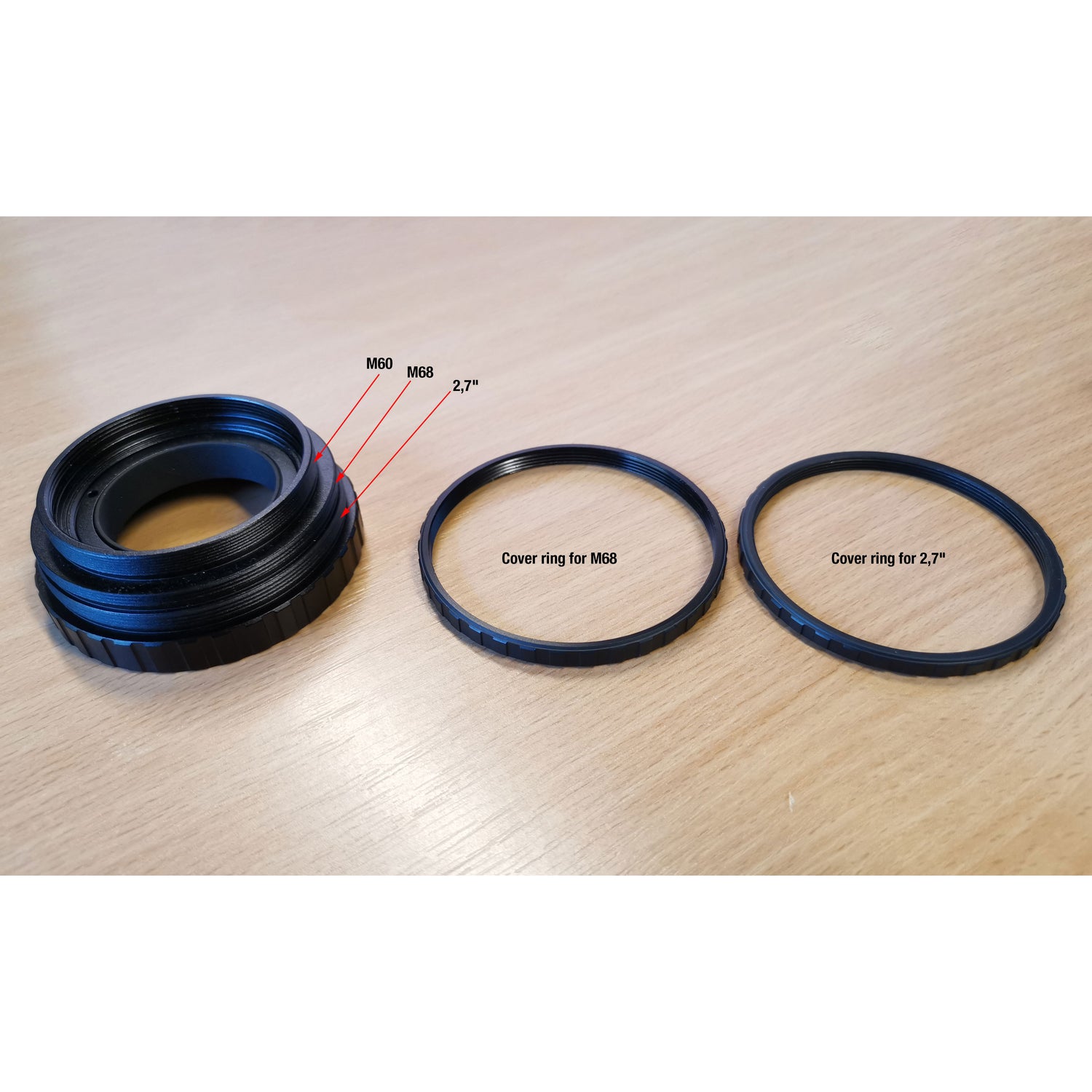

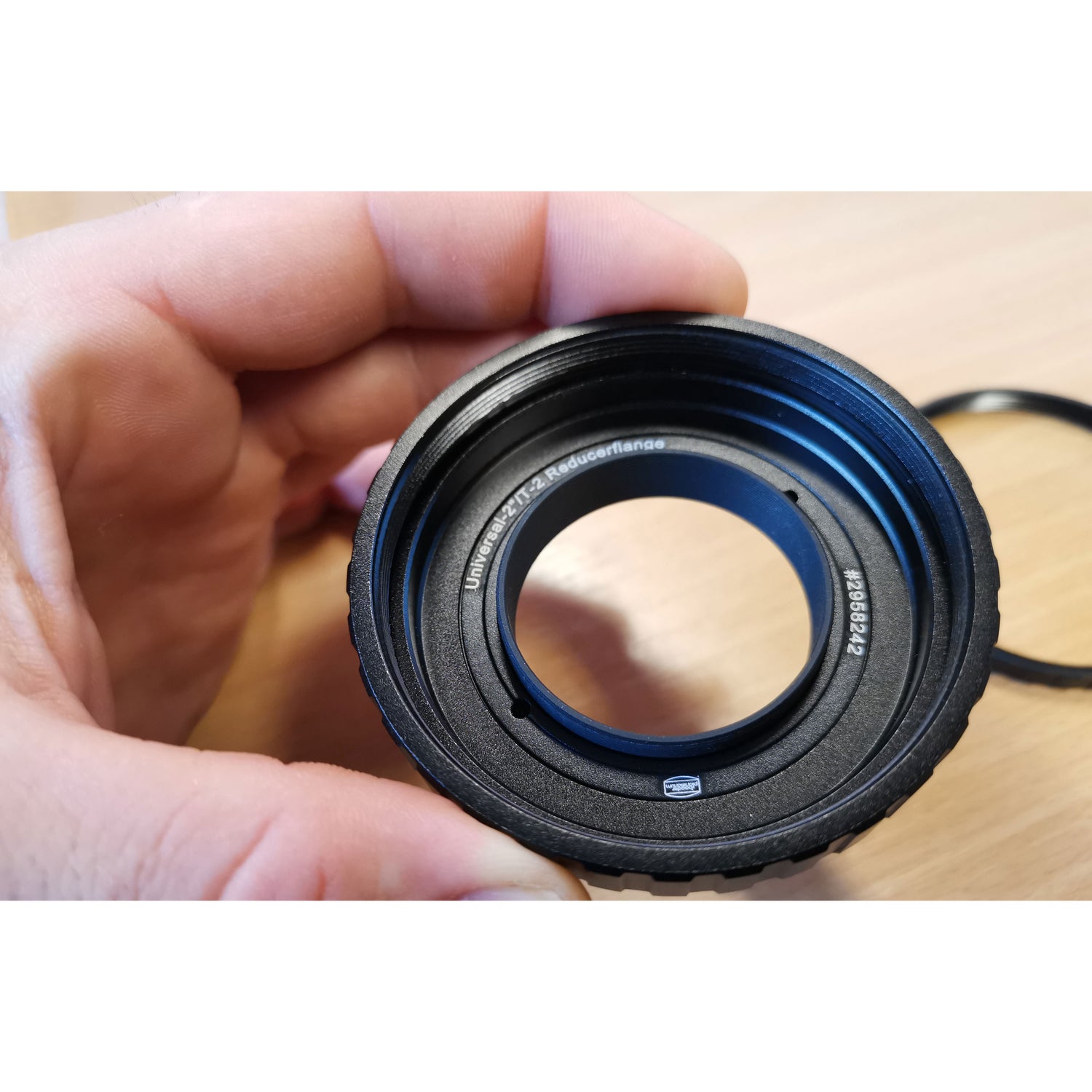

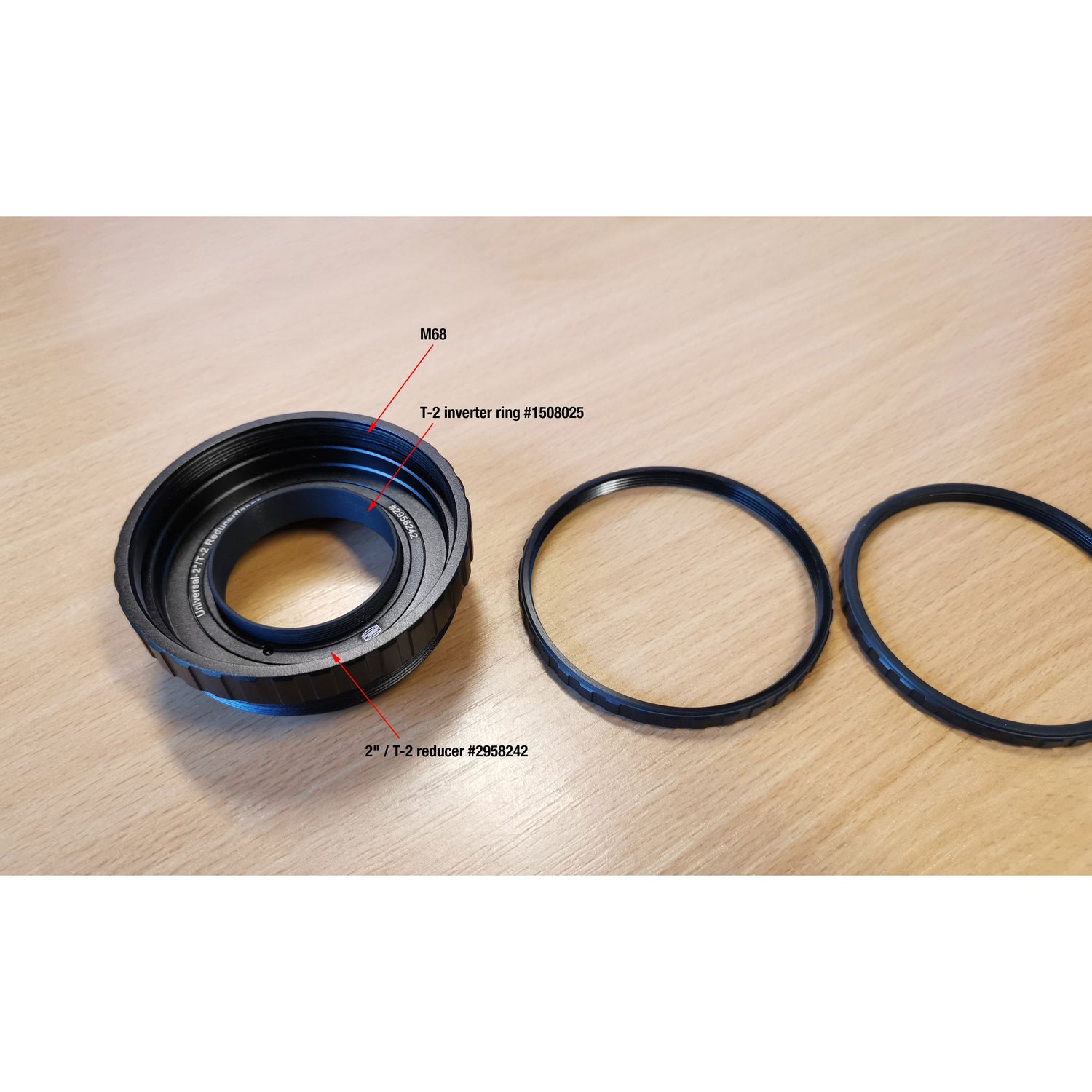

The adapter centres Baader's Fluorite Flatfield Converter, Solar TZ Telecentric systems and accessories with T2 male threads within M68 spacer rings. The outer threads consist of M68 x 1, 2.7" for Astro-Physics accessories, M60 for Vixen accessories and M56 x 1 for Sky-Watcher accessories.



Optical length
 14 mm
Clear aperture
 39 mm
Outer diameter
 74 mm
Inner connection telescope side M56 x 1
Outer connection telescope side M60, M68 x 1, 2.7"
Inner connection camera side T2 (M42 x 0.75), M68 x 1, 2"
Outer connection camera side T2 M42 x 0.75
Compatible brands UNC, Astro Physics, Baader Planetarium, Celestron, Skywatcher, Vixen, Zeiss
Weight 100 g
SKU BA2458225
