BAADER DUAL DOVETAIL SADDLE 370mm

$509.00AUD
SKU: BA2451565

Baader Planetarium

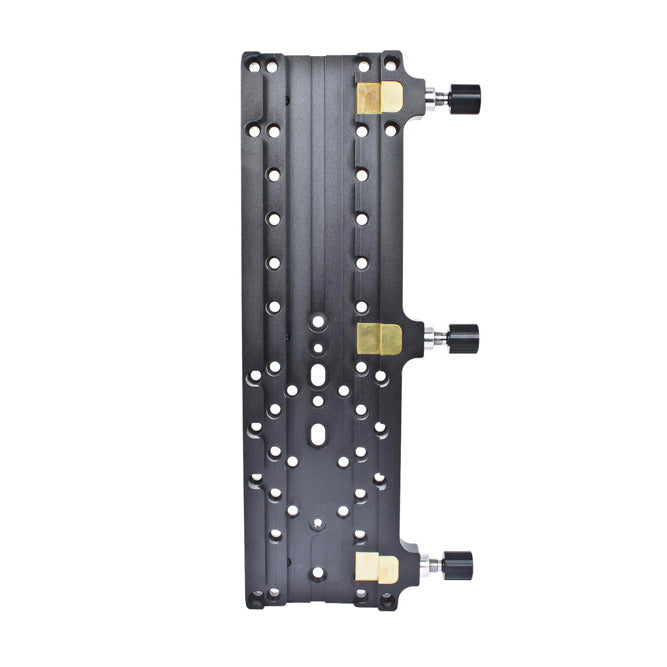

The Baader 370mm Dual Saddle securely holds all Vixen & Losmandy style dovetail bars (with a minimum length of 190mm) and is designed to be compatible with as many premium mounts as possible, including 10 Micron, Astro-Physics, Takahashi, Vixen and more.

The shape of the saddle is optimized to have as many contact points as possible for a perfect grip. The three stepped brass terminal blocks are wide enough to provide enough clamping force for the largest telescopes. The thumb knobs are positioned above the mounting surface so they do not interfere with the mount and have stainless steel inserts with 5mm hex slots for maximum security. There are cutouts for safety screws on one end of the saddle.

Specifications



Length
370 mm
Width
153 mm
Weight
1350 g
Compatible dovetails
76 mm (3") Losmandy, 44 mm Vixen
Threads drilled for
10 Micron, Astro-Physics, Baader GuideScope Rings, Baader Stronghold, Celestron C8, Celestron C925, Takahashi, Vixen
SKU BA2451565



Downloads



 Instruction manual
