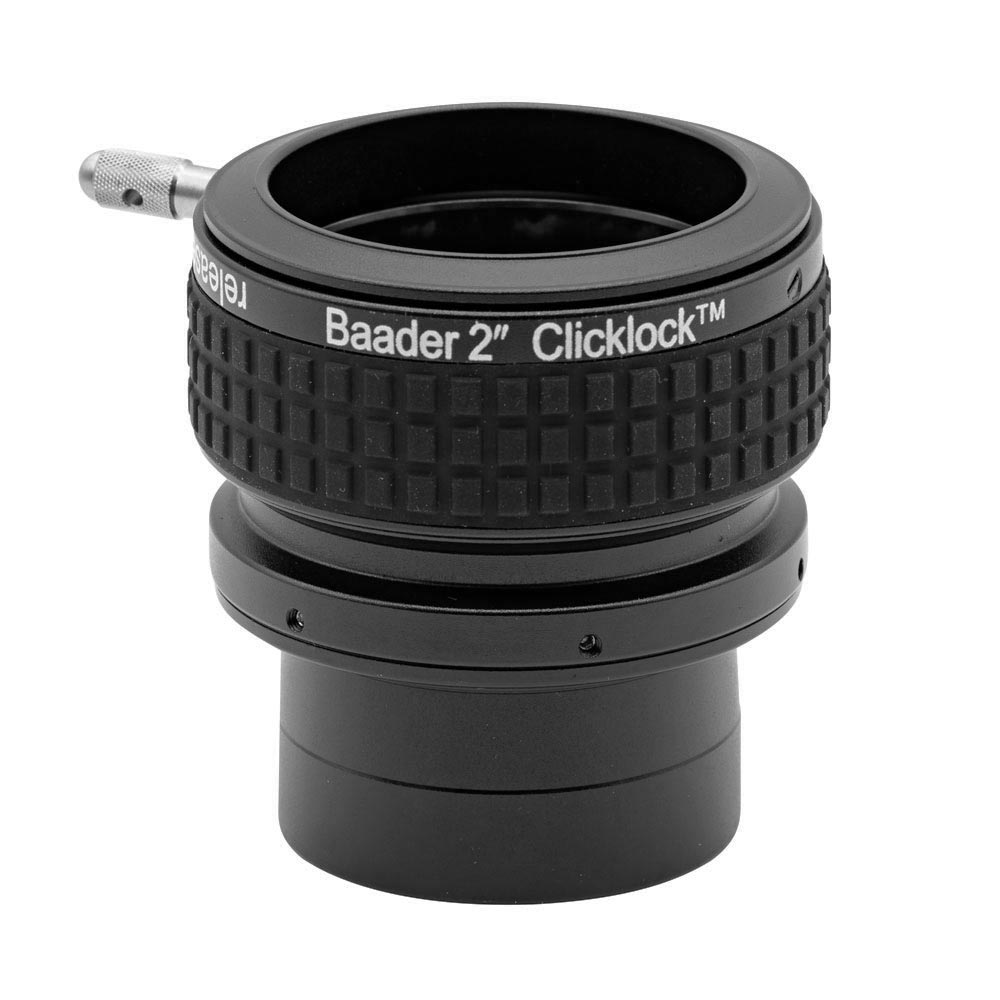

BAADER 2" CLICKLOCK EXTENSION 47 mm

$169.00

Quantity
- +


The Baader ClickLock© System is a precise accessory clamp without locking screws. The eyepiece, diagonal or accessory used is held without the inconvenience of the thumbs screws which causes tilt and therefore changes the collimation of the optical system.

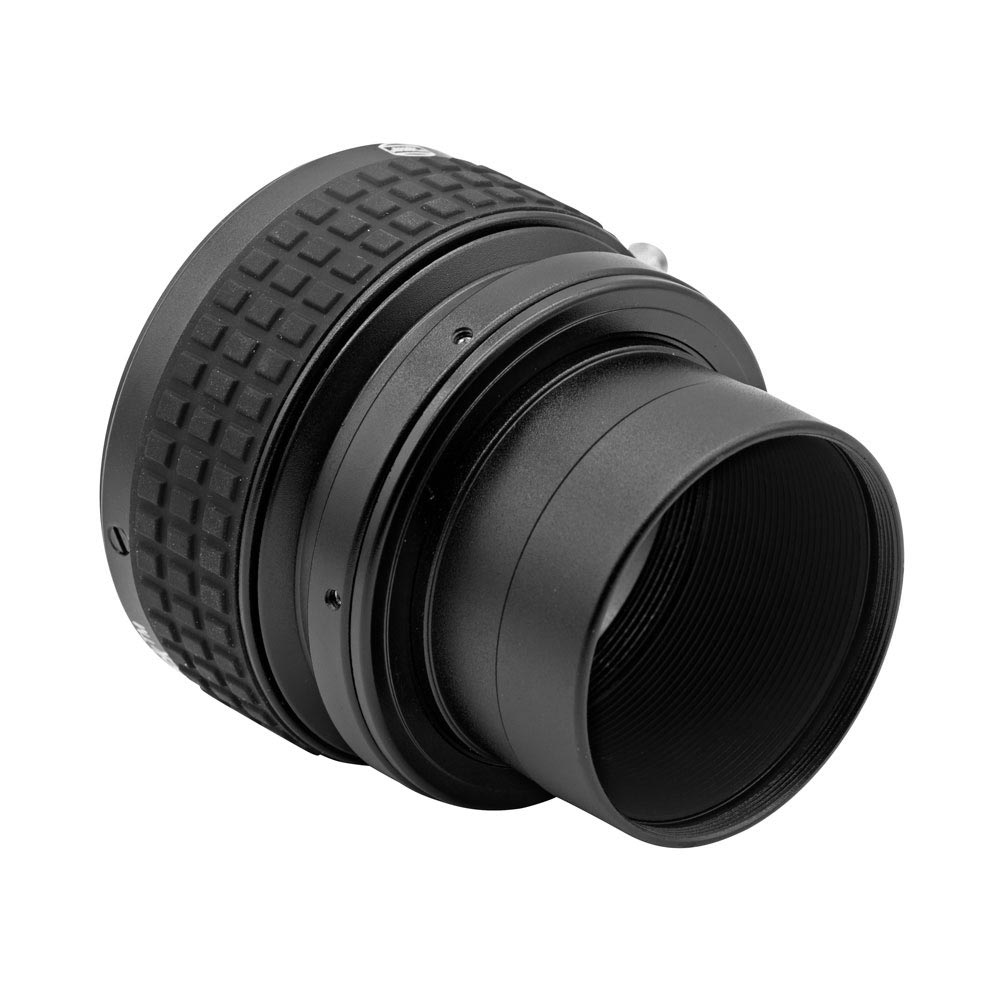

This model works as a tube extension with an optical thickness of 47mm (without the barrel). The bottom of the barrel on the telescope side has a M48 x 0.75 female thread so it allows to screw 2" filters. The barrel fits on 2" eyepiece holders and it holds 2" accessories.

Standard eyepiece holders use thumb screws to hold the accessory in place. While tightening, these screws turn the accessory and therefore alter the collimation. You can notice this effect with a laser collimator: the more you tighten the thumb screws, the more the laser dot will move across the mirror. If you repeat this test, the laser dot will move to another position so the collimation can never be precise.

The Baader ClickLock secures your 2" accessories using its clamping system that holds the part at three sides, thus not introduces tilting movements.

The Baader ClickLock© System at a glance:

  • A 20° rotation of the external collar is sufficient to securely hold 2" accessories while staying safe and firm.
  • The compression ring holds your most expensive accessory without leaving scratches and marks on the barrels.
  • The locking lever position can be set with 6 screws in different positions making the clamp usable for both right-handers and left-handers.



Baader Click Lock System




Connection on telescope side

Male 2" barrel / M48 x 0.75 female

Connection on eyepiece side

2" female

Optical length

47 mm (without the barrel)

Weight 187 gr



×
