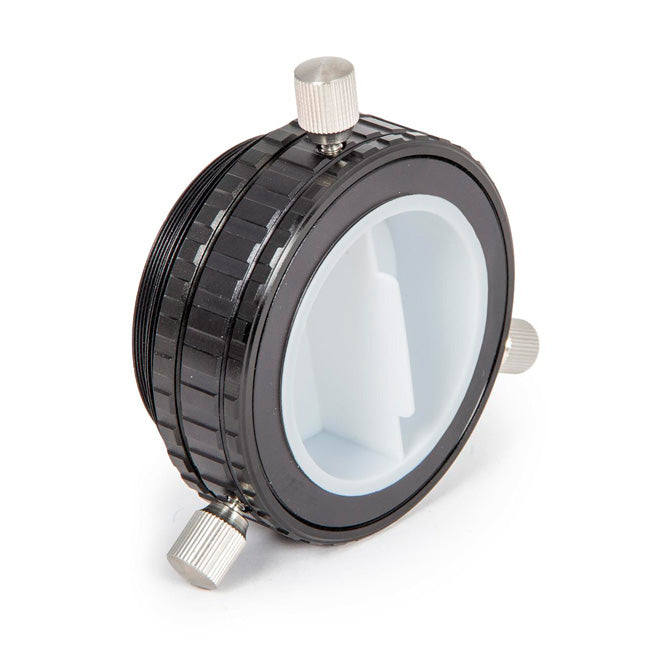

BAADER 2" M68 FOUR-IN-ONE ADAPTER
$149.00
Unit price
/
Unavailable
SKU:
BA2458190
Baader Planetarium
BAADER 2" M68 FOUR-IN-ONE ADAPTER is backordered and will ship as soon as it is back in stock.
The Baader 2" M68 four-in-one adapter allows you to connect accessories with a 2" barrel or female M68 x 1 threads to accessories with a variety of thread types.
- Holds all all Zeiss devices - with 68mm thread (with 19mm optical height)
- Keeps all Vixen Optics - with 60mm thread on the focus tube (with 24mm optical height)
- Keeps all Astrophysics refractors with 2.7 "thread (with 13mm optical height)
- Keeps all Skywatcher- / Celestron refractors, all Synta optics - with 56mm thread on 2 "eyepiece holder (with 31mm optical height)
Specifications
| Optical length |
19 mm, 13 mm, 24 mm, 31 mm |
|---|---|
| Clamping system |
Screw clamps |
| Screw type |
2 x M4 clamping screws |
| Clear aperture |
50.8 mm (2") |
| Outer diameter |
75 mm |
| Inner connection telescope side | M56 x 1 |
| Outer connection telescope side | M60, M68 x 1, 2.7" |
| Inner connection camera side | 2" clamp |
| Outer connection camera side | M68 x 1 |
| Compatible brands | UNC, Astro Physics, Baader Planetarium, Celestron, Skywatcher, Vixen, Zeiss |
| Weight | 170 g |
| SKU | BA2458190 |
