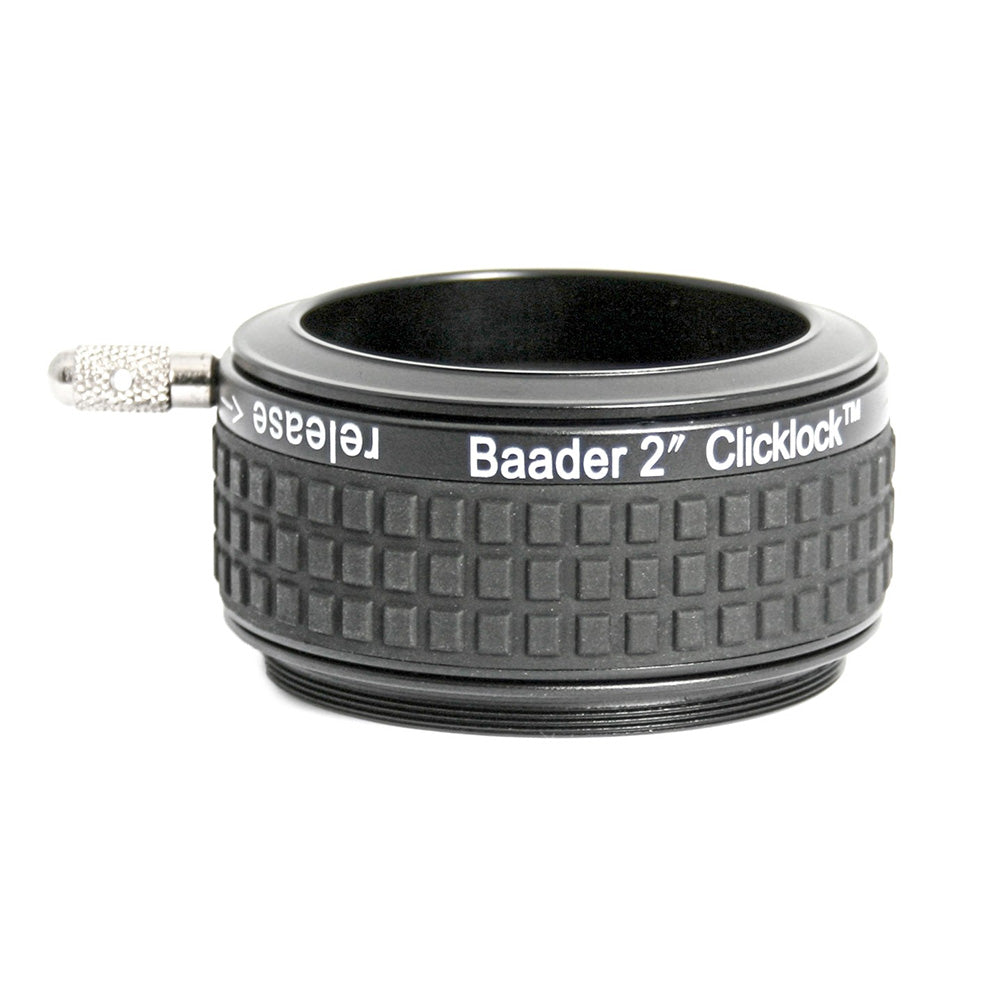

BAADER 2" CLICKLOCK M60 x 0.75 MALE

$149.00
SKU: BA2956260

Baader Planetarium

  • Optical thickness: 30 mm




The Baader ClickLock© System is a precise accessory clamp without locking screws. The eyepiece, diagonal or accessory used is held without the inconvenience of the thumbs screws which causes tilt and therefore changes the collimation of the optical system.

This model fits on Vixen focusers which feature M60 x 0.75 female threads and holds 2" accessories

Standard eyepiece holders use thumb screws to hold the accessory in place. While tightening, these screws turn the accessory and therefore alter the collimation. You can notice this effect with a laser collimator: the more you tighten the thumb screws, the more the laser dot will move across the mirror. If you repeat this test, the laser dot will move to another position so the collimation can never be precise.

The Baader ClickLock secures your 2" accessories using its clamping system that holds the part at three sides, thus not introduces tilting movements.

Make sure you double check the optical length of the Baader Clicklock before you purchase, in case the extra space puts the focal point to far out. This is especially important for Newtonians where space is limited.

The Baader ClickLock© System at a glance:

  • A 20° rotation of the external collar is sufficient to securely hold 2" accessories while staying safe and firm.
  • The compression ring holds your most expensive accessory without leaving scratches and marks on the barrels.
  • The locking lever position can be set with 6 screws in different positions making the clamp usable for both right-handers and left-handers.



Baader Click Lock System



Specifications



Connection (telescope side)
M60 x 0.75 male
Connection (camera side) 2"
Optical thickness 30 mm
Weight 140 g
SKU BA2956260
BAADER 2" CLICKLOCK M60 x 0.75 MALE.

BAADER 2" CLICKLOCK M60 x 0.75 MALE

$149.00

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Optical thickness: 30 mm

Threads

2" Barrel, M60 x 0.75 Male
