BAADER 2" AMICI ERECTING PRISM 45°

$236.00 USD
SKU: BA2956151

Baader Planetarium

  • 2" SC Female
  • 1.25" Barrel
  • 2" Barrel
  • Optical thickness: 121 mm (2" barrel)
  • Optical thickness: 131 mm (1.25" barrel)

0.47 kg

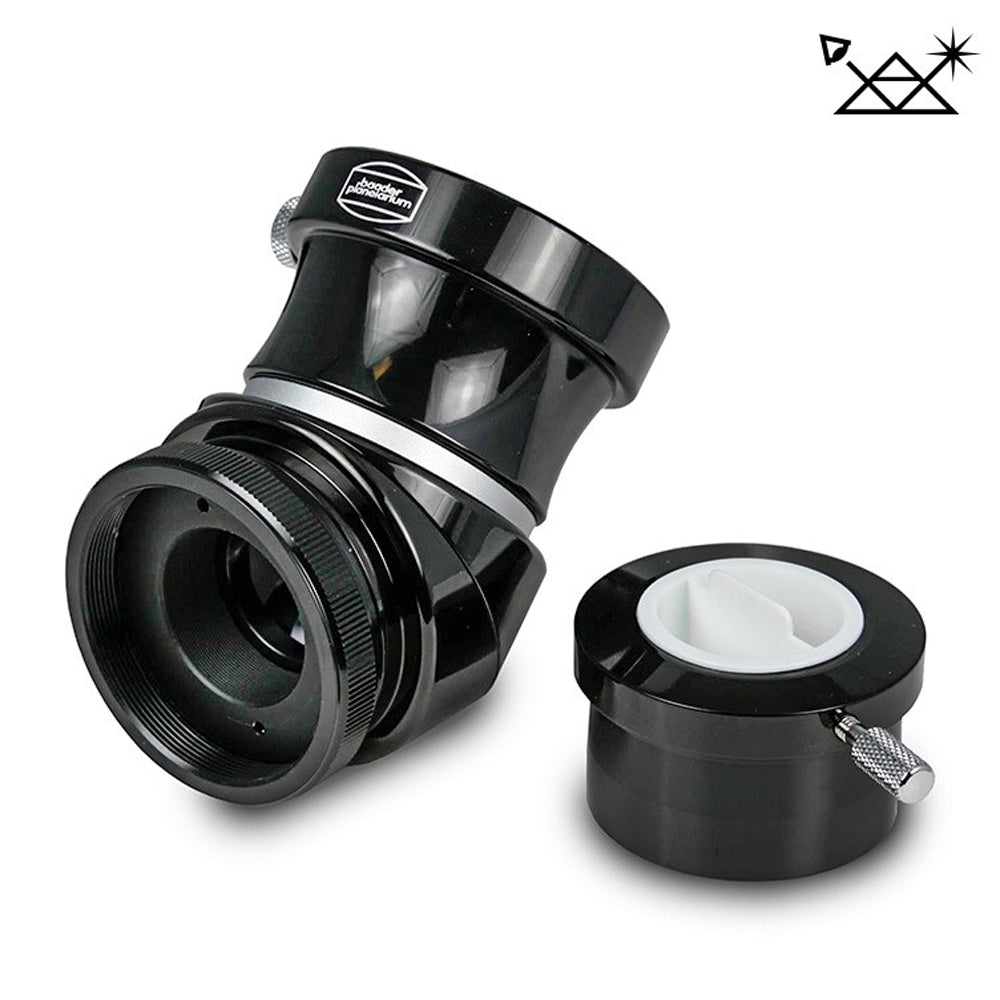

The Baader 2" 45° Amici Erecting Prism is a high quality prism diagonal for low - medium magnification and terrestrial viewing with 2" eyepieces. This model is designed to screw directly onto a Schmidt-Cassegrain or similar telescopes which have a 2" SC male thread.

The Amici prism has anti-reflection multi-coatings for high contrast and stray light suppression. Included is a 2" to 1.25" barrel adapter.




Optical design Amici erecting prism
Reflection surface AR multi-coating
Image orientation Erect image, non-reversed
Optical length
121 mm with 2" barrel, 131 mm with 1.25" reducer
Deflection angle
45 degrees
Clear aperture 26 mm
Connection telescope side
2" SC female thread
Connection eyepiece side
2" clamp, 1.25" clamp
Weight 470 g
SKU BA2956151
