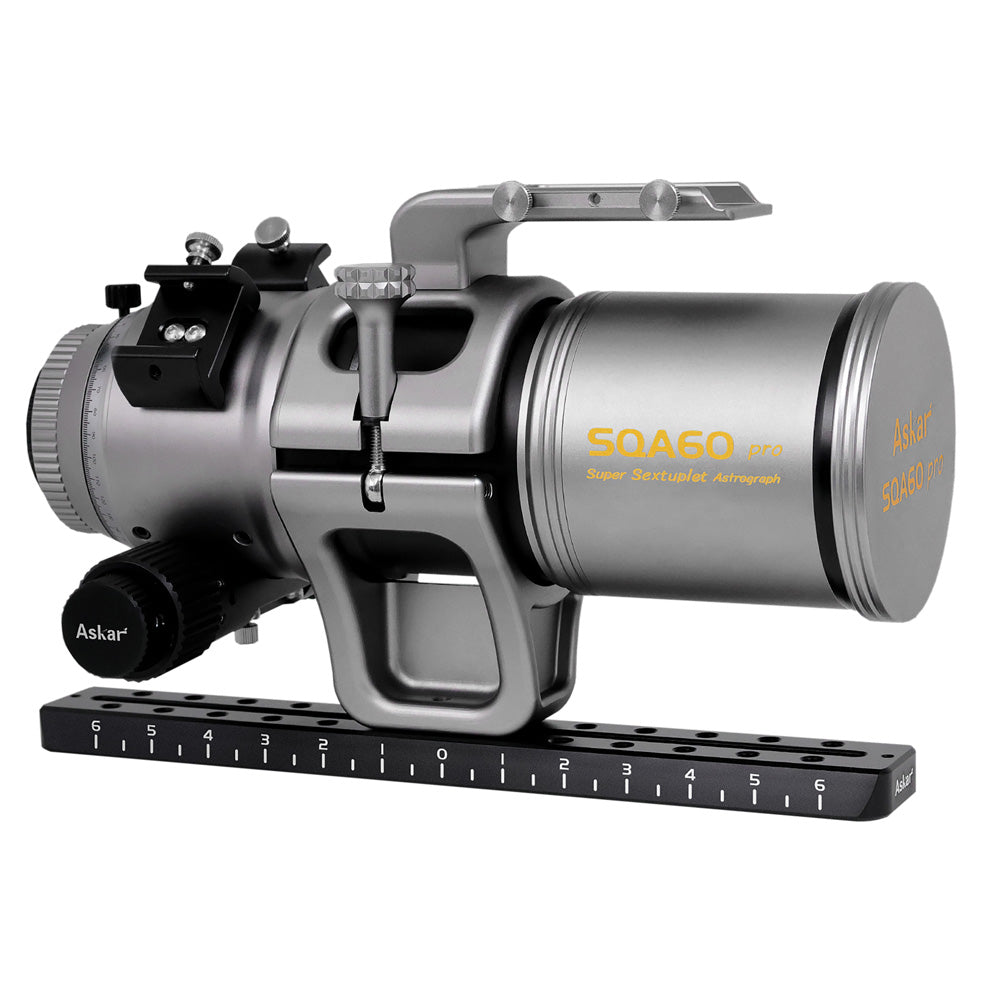

ASKAR SQA60 PRO f/4.6 APO REFRACTOR

$2,049.00AUD
SKU: AS-SQA60-PRO



The Askar SQA60 Pro is an apochromatic sextuplet flat-field astrograph that offers high performance thanks to its air-spaced lens design with 2 SD elements. Being a Petzval, the SQA60 Pro does not require the camera to be at a specific backfocus distance.





With a 44mm full frame image circle, central star size RMS radius of less than 1µm and less than 2.4µm at 22mm off-axis, plus full-field illumination of over 95% at the edge of the field, the SQA60 Pro has superb image quality.




The SQA60 Pro has a 2.8" dual-speed rack & pinion focuser which is compatible with most motorized focusers on the market, such as the ZWO EAF, Touptek AAF or QHY Q-Focuser. The entire focuser barrel is CNC-machined for a superior strength and rigidity. Anti-reflective matte paint inside the tube ensures that the stray light is kept to a minimum.





The SQA60 Pro includes a standard M48 x 0.75 rear thread for an easy connection to most off axis guiders, filter wheels and cameras. The high-precision 360 degree rotator is engraved with a micrometric scale, making repeatable framing of astronomical targets straightforward.





Two finder brackets on the focuser as well as a finder saddle on the top of the clamshell ring allow you to connect a variety of accessories such as guide scopes and control units. The 290 mm Vixen style dovetail plate gives you plenty of room to balance the scope with most imaging trains.





A durable water resistant resin case with EVA foam interior keeps the telescope safe and offers plenty of space for additional accessories.





Specifications



Optical design

Apochromatic air-spaced sextuplet with two SD elements

Objective diameter

60 mm

Focal length

276 mm

Focal ratio

f/4.6

Mount attachment

290 mm Vixen style dovetail plate, integrated tube ring

Focuser

Dual-speed 2.8" rack & pinion

Tube weight

2.79 kg (3.54 kg with dovetail and rings)

Tube length

283 mm

Tube diameter

84 mm

Dew shield diameter

92 mm

Connections

 M48 x 0.75 Male with internal 2" filter thread, M62 x 1 Female

Backfocus range

66 mm from M48 thread

Image circle

 44 mm

SKU

AS-SQA60-PRO



 Items included





  • SQA60 OTA
  • Padded soft case
  • Tube rings and 290 mm Vixen style dovetail plate
  • Manual
Downloads



 Instruction manual
