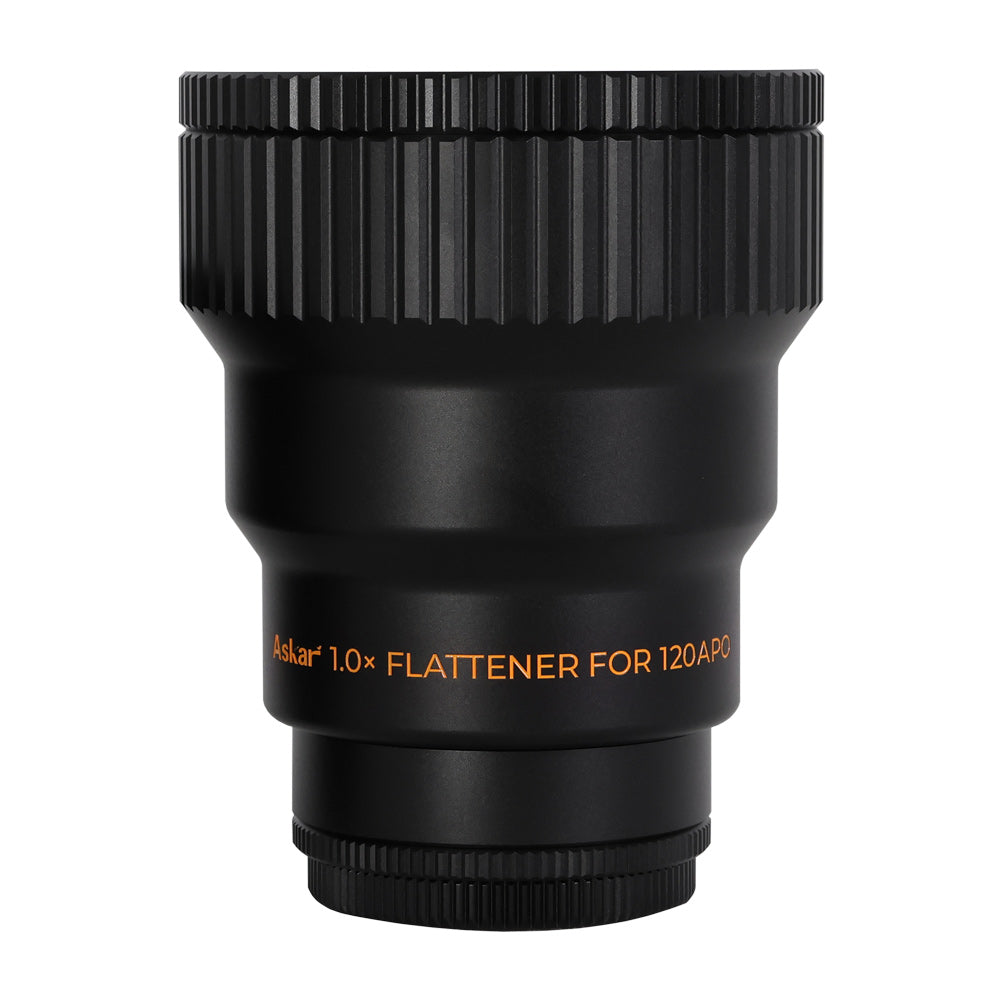

ASKAR 1x FLATTENER FOR 120APO
Askar
0.75 kg
ASKAR 1x FLATTENER FOR 120APO is backordered and will ship as soon as it is back in stock.
The 1x field flattener for the ASKAR 120APO is a dedicated corrector which transforms the telescope into a premium astrophotography instrument with a 44mm image circle. The working distance between the flattener and the sensor is 55mm.
The flattener can be connected to the focuser of the Askar 120APO using an M84 x 1 male thread. On the camera side there is both M54 x 0.75 and M48 x 0.75 male threads. The flattener has an internal M48 x 0.75 thread to accept any standard 2" filter.
Specifications
| Optical design |
Triplet |
|
Focuser connection |
M84 x 1 male |
|
Camera connection |
M54 x 0.75 male, M48 x 0.75 male |
|
Backfocus distance |
55 mm from base of M48 thread, 73 mm from M54 thread |
|
Length |
89 mm |
|
Weight |
750 gr |
|
Outer diameter |
88 mm |
|
SKU |
ASA-120APOX1 |
Downloads
 Instruction manual
|
Gallery
Soul Nebula | Askar 120APO + 1x flattener, ZWO ASI6200MM Pro, Antlia 3nm SHO filters.
Magnified view showing the typical correction of the 120APO with optional 1 x flattener.
