ASKAR 1x FLATTENER FOR 103APO

$399.00
SKU: ASA-103APOX1

Askar

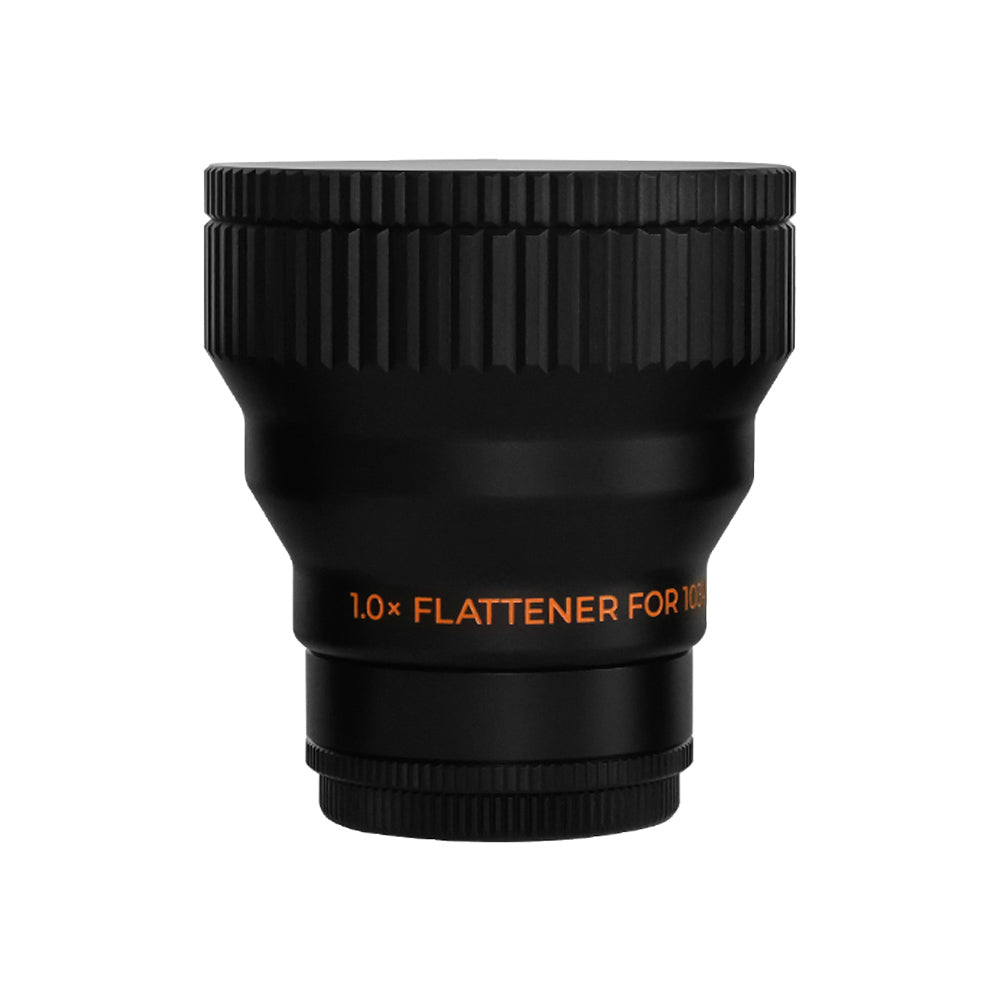

The 1x field flattener for the ASKAR 103APO is a dedicated corrector which transforms the telescope into a premium astrophotography instrument with a 44mm image circle. The working distance between the flattener and the sensor is 55mm.

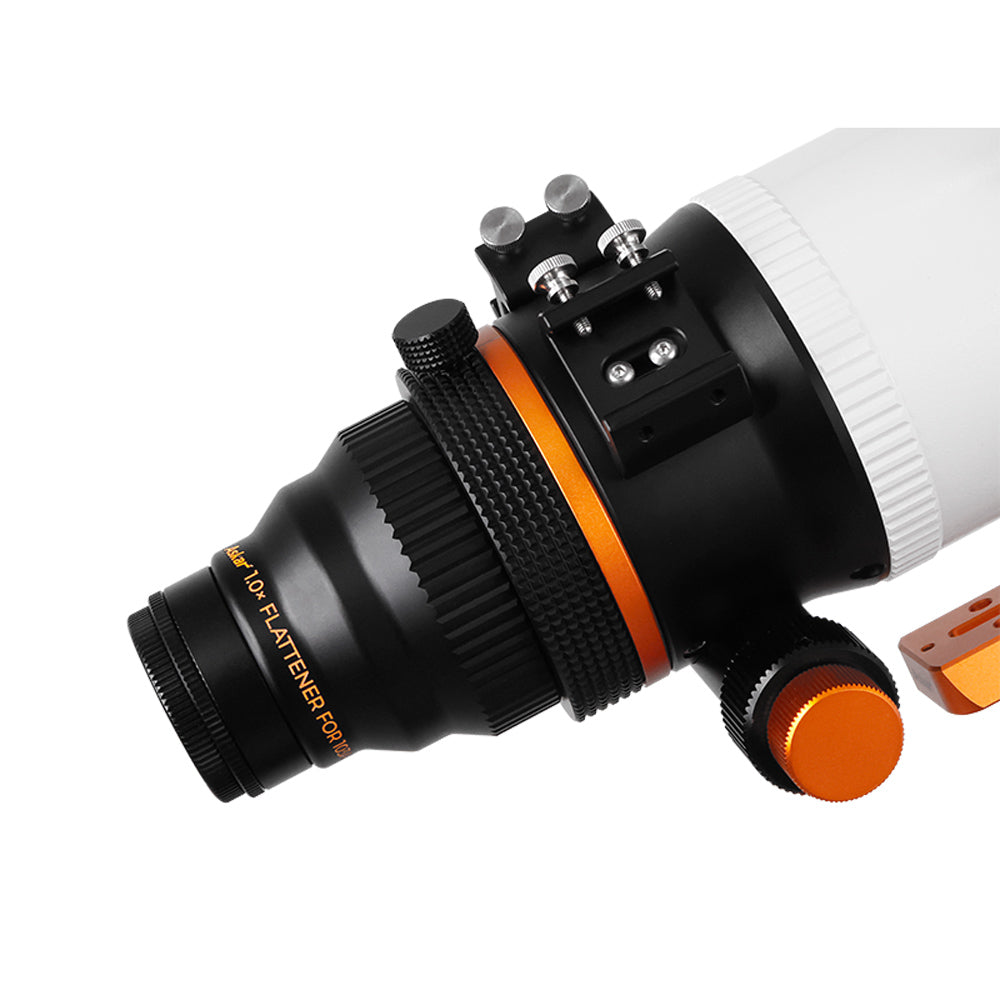

The flattener can be connected to the focuser of the Askar 103APO using an M84 x 1 male thread. On the camera side there is both M54 x 0.75 and M48 x 0.75 male threads. The flattener has an internal M48 x 0.75 thread to accept any standard 2" filter.



Specifications



Optical design

Triplet

Focuser connection

M84 x 1 male

Camera connection

M54 x 0.75 male, M48 x 0.75 male

Backfocus distance

55 mm from base of M48 thread, 73 mm from M54 thread

Length

71.7 mm

Weight

580 gr

Outer diameter

88 mm

SKU

ASA-103APOX1




Downloads



 Instruction manual
Gallery





M27 by Chong Yang | Askar 103APO + 1x flattener, ZWO ASI2600MC Pro.
