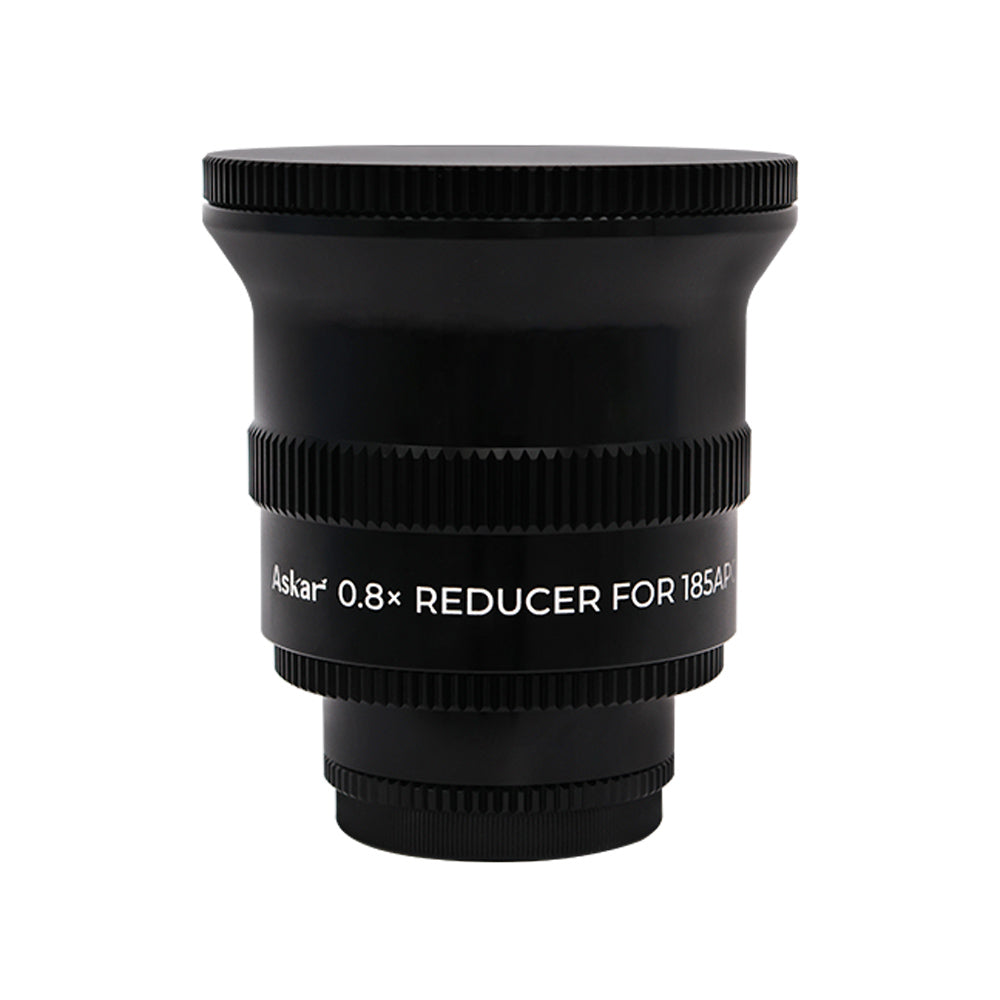

ASKAR 0.8x REDUCER FOR 185APO
Askar
0.95 kg
ASKAR 0.8x REDUCER FOR 185APO is backordered and will ship as soon as it is back in stock.
The 0.8x reducer for the ASKAR 185APO is a dedicated corrector which transforms the telescope into a 1036mm f/5.6 astrograph with a 44mm image circle. The working distance between the reducer and the sensor is 55mm from the M48 x 0.75 thread.
The reducer can be connected to the focuser of the Askar 185APO using an M92 x 1 male thread. On the camera side there are M68 x 1, M54 x 0.75 and M48 x 0.75 male threads. The flattener has an internal M48 x 0.75 thread to accept any standard 2" filter.
Specifications
| Optical design |
Triplet |
|
Focuser connection |
M92 x 1 male |
|
Camera connection |
M68 x 1 male, M54 x 0.75 male, M48 x 0.75 male |
|
Backfocus distance |
55 mm from base of M48 thread, 73 mm from M54 thread, 79.5 mm from M68 thread |
|
Length |
110 mm |
|
Weight |
950 gr |
|
Outer diameter |
TBD |
|
SKU |
ASA-185APOX0.8 |
Downloads
 Instruction manual
|
Gallery
M45 by Mr Zhu Li Qun | Askar 185APO + 0.8x reducer, ZWO ASI6200MM Pro.
Magnified view showing the typical correction of the 185APO with optional 0.8x reducer.
