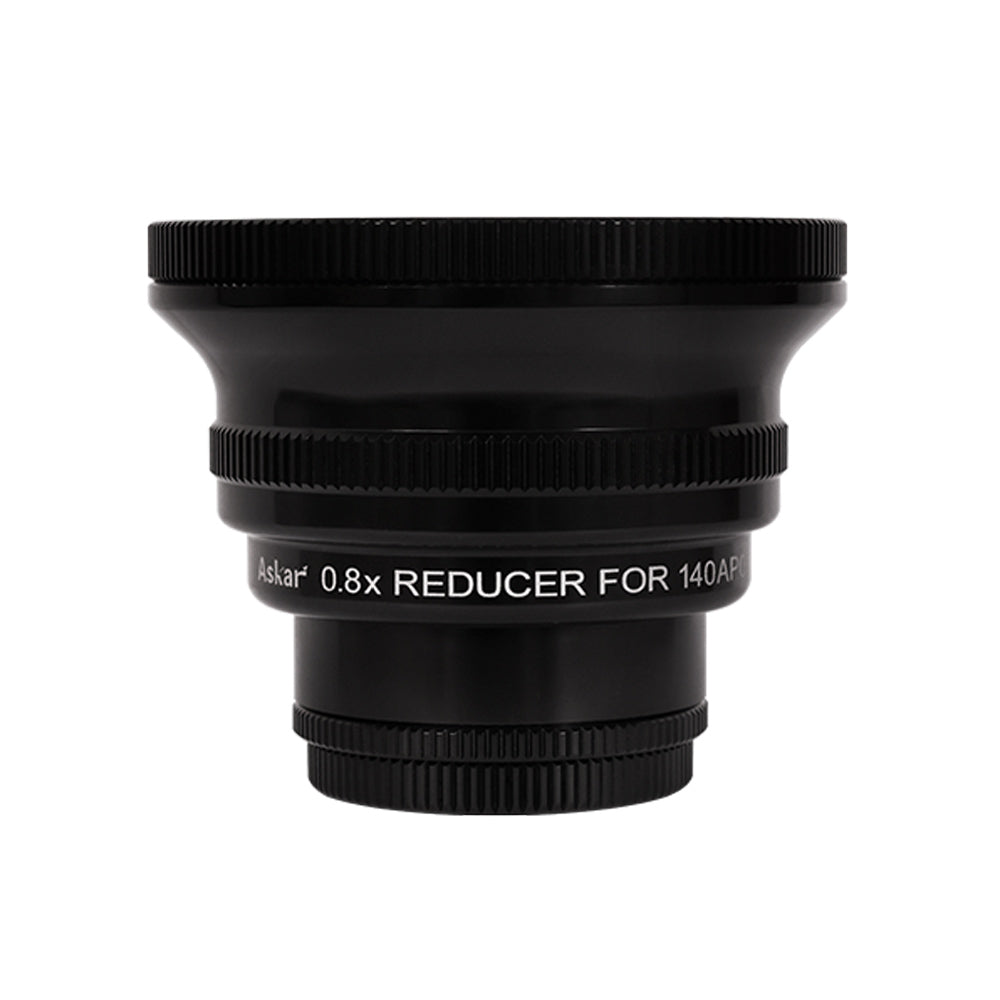

ASKAR 0.8x REDUCER FOR 140APO
Askar
0.63 kg
ASKAR 0.8x REDUCER FOR 140APO is backordered and will ship as soon as it is back in stock.
The 0.8x reducer for the ASKAR 140APO is a dedicated corrector which transforms the telescope into a 784mm f/5.6 astrograph with a 44mm image circle. The working distance between the reducer and the sensor is 55mm from the M48 x 0.75 thread.
The reducer can be connected to the focuser of the Askar 140APO using an M92 x 1 male thread. On the camera side there are M54 x 0.75 and M48 x 0.75 male threads. The flattener has an internal M48 x 0.75 thread to accept any standard 2" filter.
Specifications
| Optical design |
Triplet |
|
Focuser connection |
M92 x 1 male |
|
Camera connection |
M54 x 0.75 male, M48 x 0.75 male |
|
Backfocus distance |
55 mm from base of M48 thread, 73 mm from M54 thread |
|
Length |
117.5 mm |
|
Weight |
630 gr |
|
Outer diameter |
96 mm |
|
SKU |
ASA-140APOX0.8 |
