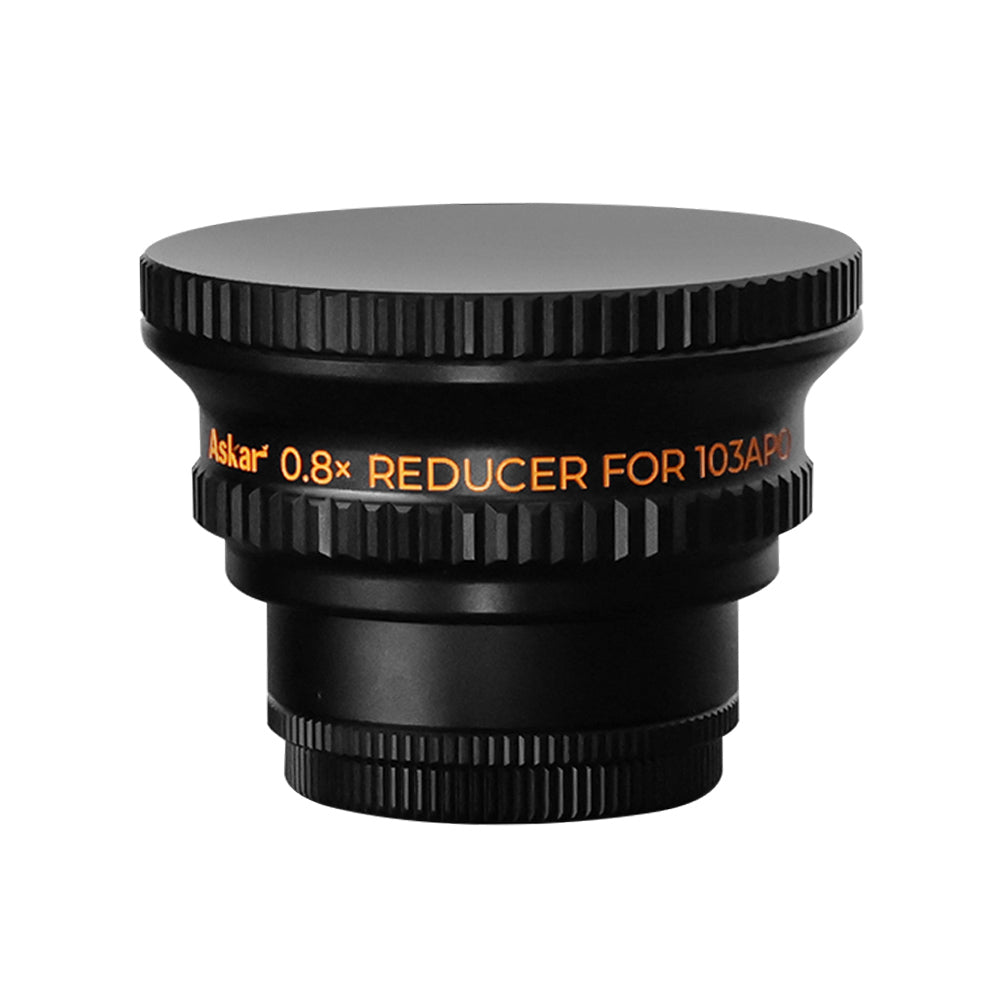

ASKAR 0.8x REDUCER FOR 103APO
Askar
0.48 kg
ASKAR 0.8x REDUCER FOR 103APO is backordered and will ship as soon as it is back in stock.
The 0.8x reducer for the ASKAR 103APO is a dedicated corrector which transforms the telescope into a widefield 560mm f/5.44 astrograph with a 44mm image circle. The working distance between the reducer and the sensor is 55mm.

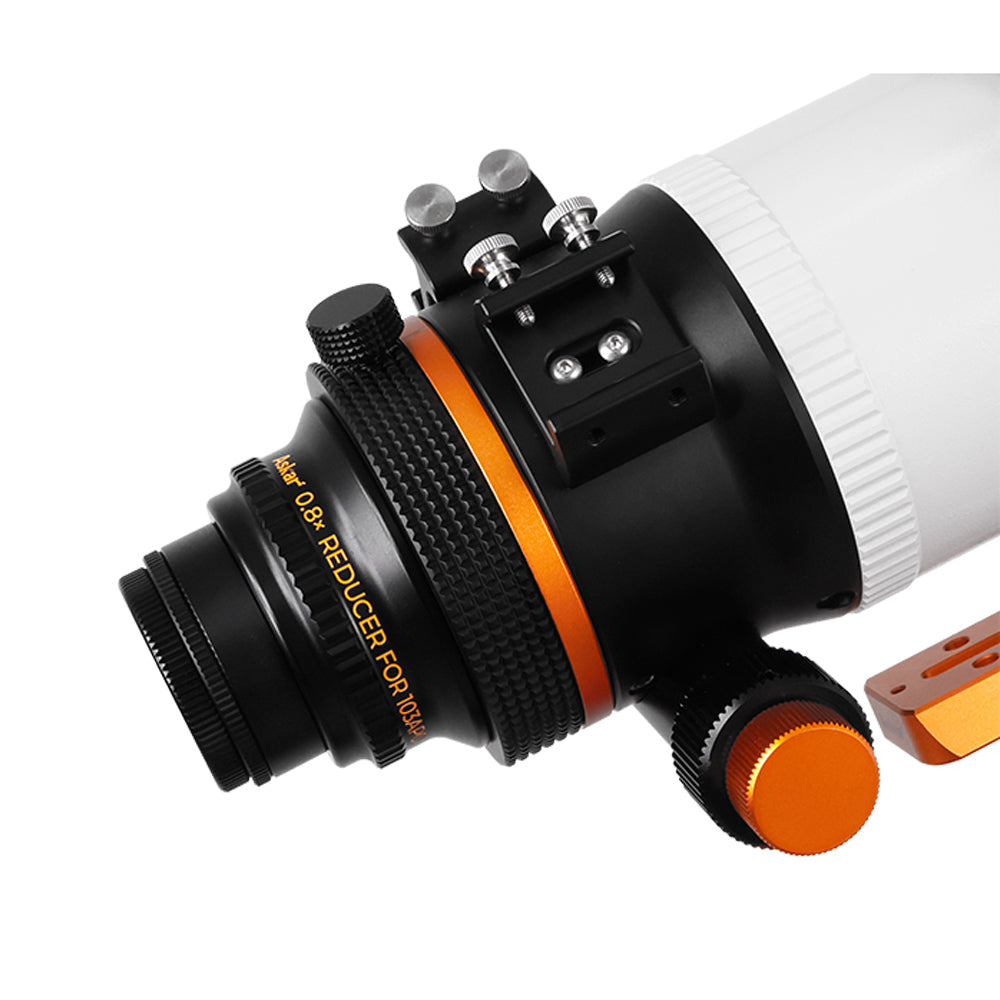

The reducer can be connected to the focuser of the Askar 103APO using an M84 x 1 male thread. On the camera side there is both M54 x 0.75 and M48 x 0.75 male threads. The flattener has an internal M48 x 0.75 thread to accept any standard 2" filter.
Specifications
| Optical design |
Triplet |
|
Focuser connection |
M84 x 1 male |
|
Camera connection |
M54 x 0.75 male, M48 x 0.75 male |
|
Backfocus distance |
55 mm from base of M48 thread, 73 mm from M54 thread |
|
Length |
41.5 mm |
|
Weight |
480 gr |
|
Outer diameter |
88 mm |
|
SKU |
ASA-103APOX0.8 |
Downloads
 Instruction manual
|
