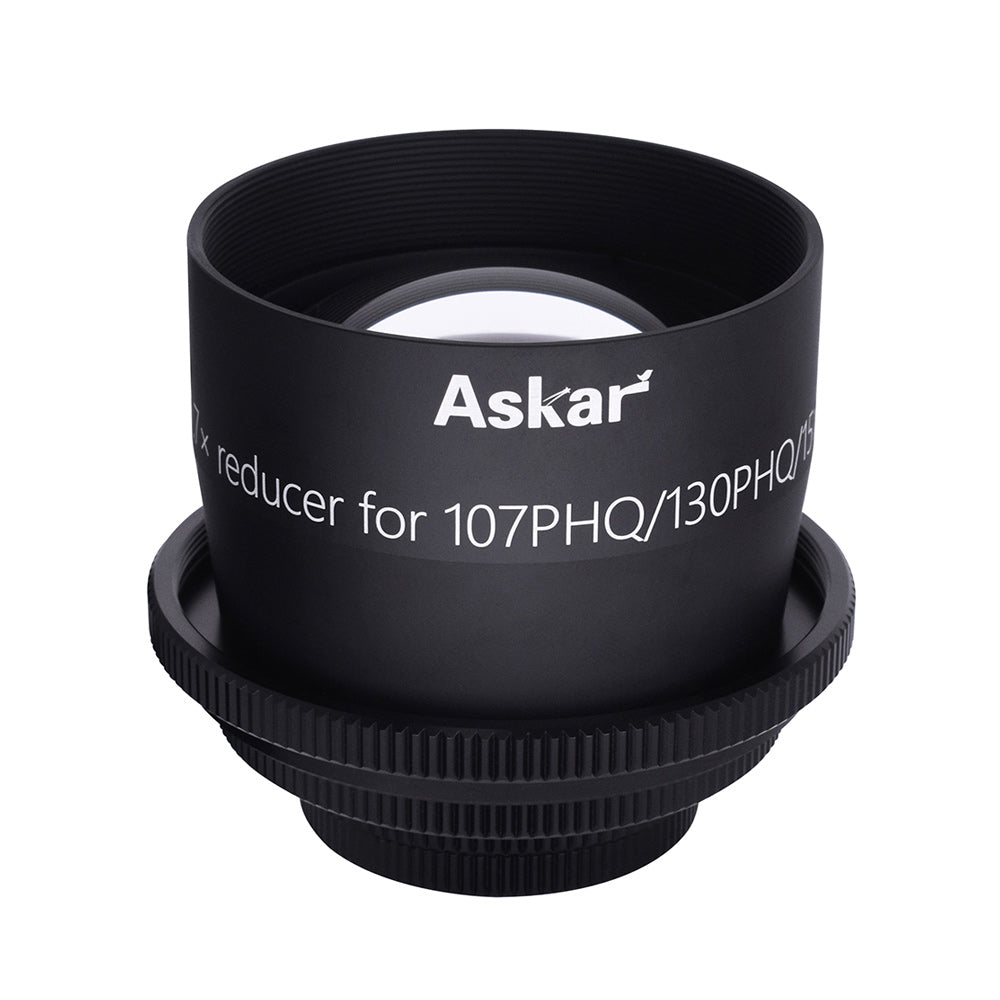

ASKAR 0.7x REDUCER FOR 107PHQ, 130PHQ & 151PHQ

$399.00 USD
SKU: ASA-107-130-150PHQ-R

Askar

  • M77 x 1 Female
  • M68 x 1 Male
  • M54 x 0.75 Male
  • M48 x 0.75 Male




The Askar 0.7x Flattener/Reducer for 107PHQ, 130PHQ & 151PHQ telescopes is a 3" corrector for full frame sensors. The flattener/reducer is a triplet design with one element of ED (Extra-low Dispersion) glass. The 0.7x reduction factor shortens the focal ratio of the 107PHQ to f/4.9,the 130PHQ to f/5.4 and the 151PHQ to f/4.9, shortening the exposure time and increasing the field of view.

When paired with this flattener/reducer, the focal length of the 107PHQ becomes 524mm, the 130PHQ becomes 700mm and the 151PHQ becomes 740mm, transforming them into extremely capable widefield astrographs. The flattener/reducer has a backfocus requirement of 55mm, making it straightforward to connect common imaging trains.











Reduction factor 0.7 x
Telescope connection M86 x 1, M77 x 1
Camera connection M68 x 1, M54 x 0.75, M48 x 0.75
Image circle Full frame
Backfocus distance 55 mm
Weight TBD
SKU ASA-107-120-150PHQ-R
