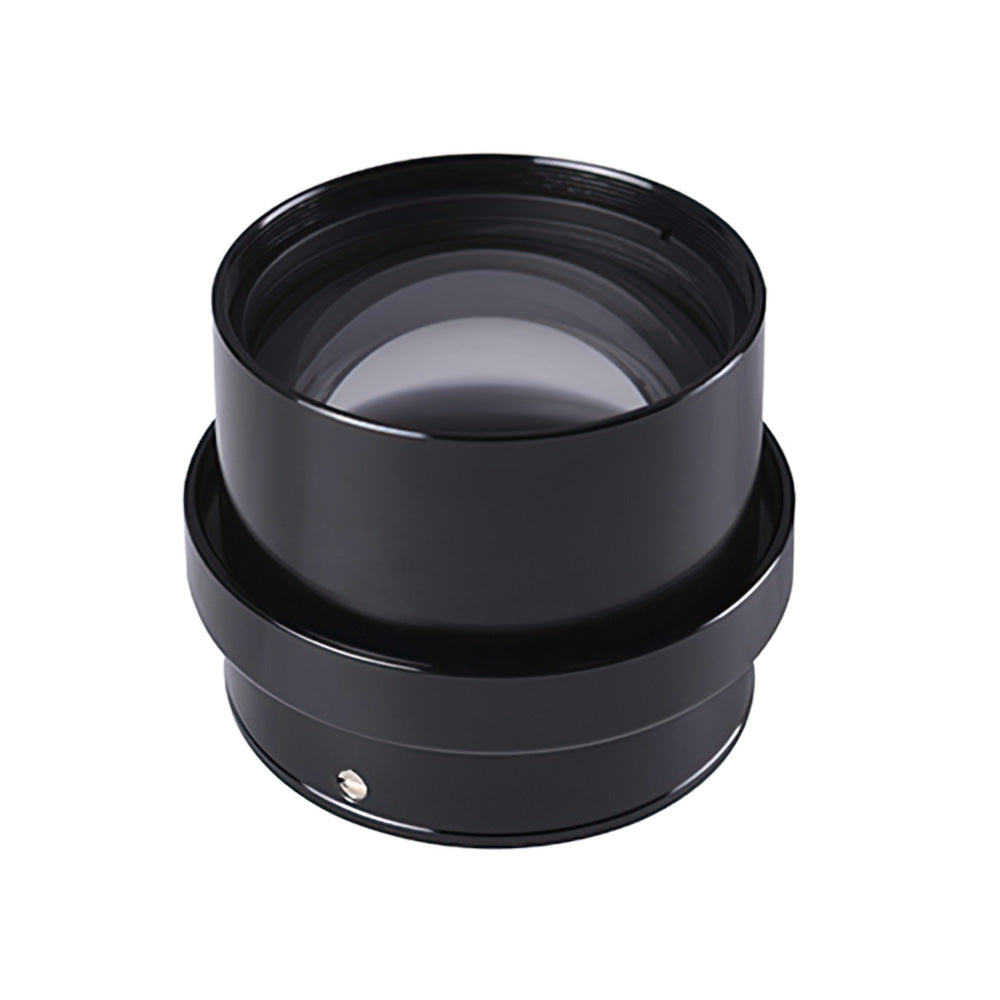

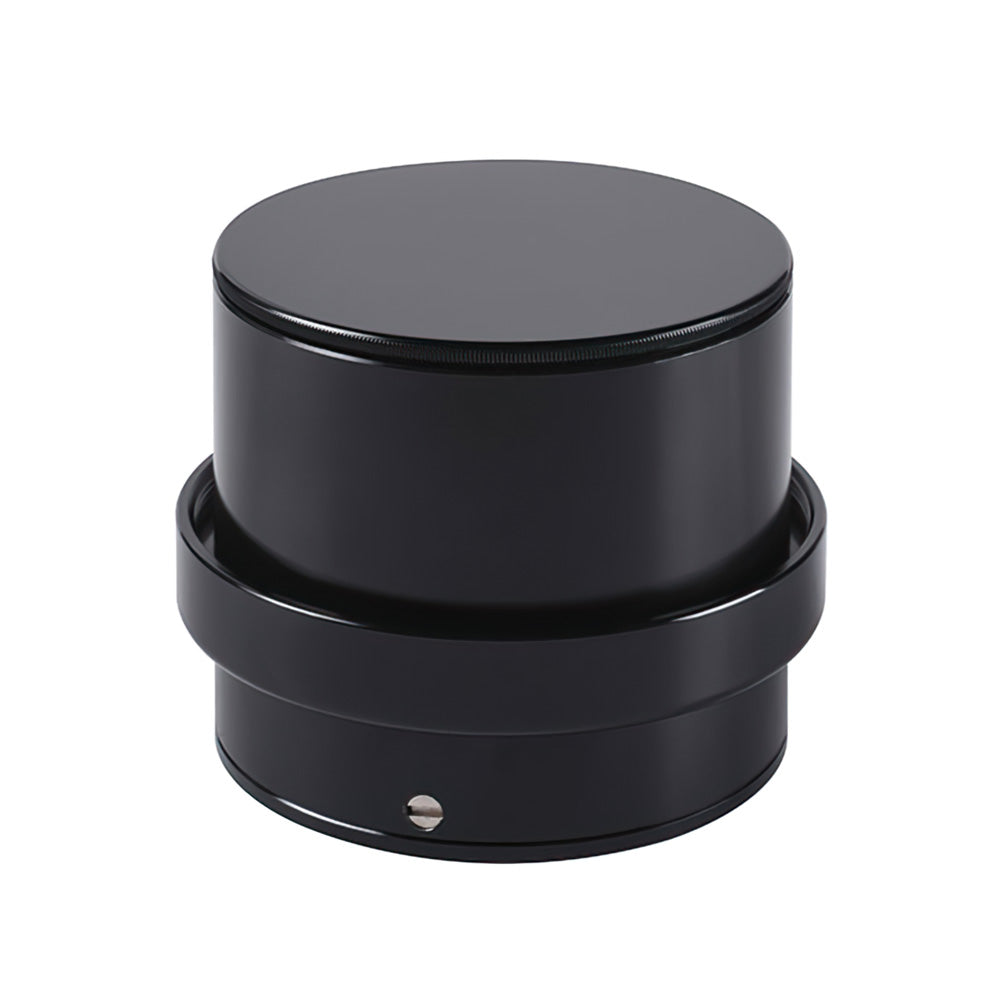

ASKAR 0.7x FLATTENER AND REDUCER FOR FRA600

The field flattener & reducer for the ASKAR FRA 600 is a dedicated corrector with a reducing power of 0.7X. It shortens the focal length from 600mm to 420mm and the focal ratio from f/5.6 to f/3.9 halving the exposure time. The working distance between the flattener and the sensor is 55mm.

The flattener/reducer can be connected to the focuser of the Askar FRA 600 using the 600's M90 x 1 male thread, on the camera side there is the universal M48 x 0.75 male thread. The flattener has an internal M48 x 0.75 thread to accept any standard 2" filter.

Spot diagram Askar FRA600 + 0.7x dedicated reducer

Specifications
