ZWO ASI183MC PRO [COLOUR]

$1,349.00 AUD
SKU: ASI183MC-P

ZWO

19 FPS

12-bit

13.2 x 8.8 mm

2.4 µm

FREE SHIPPING

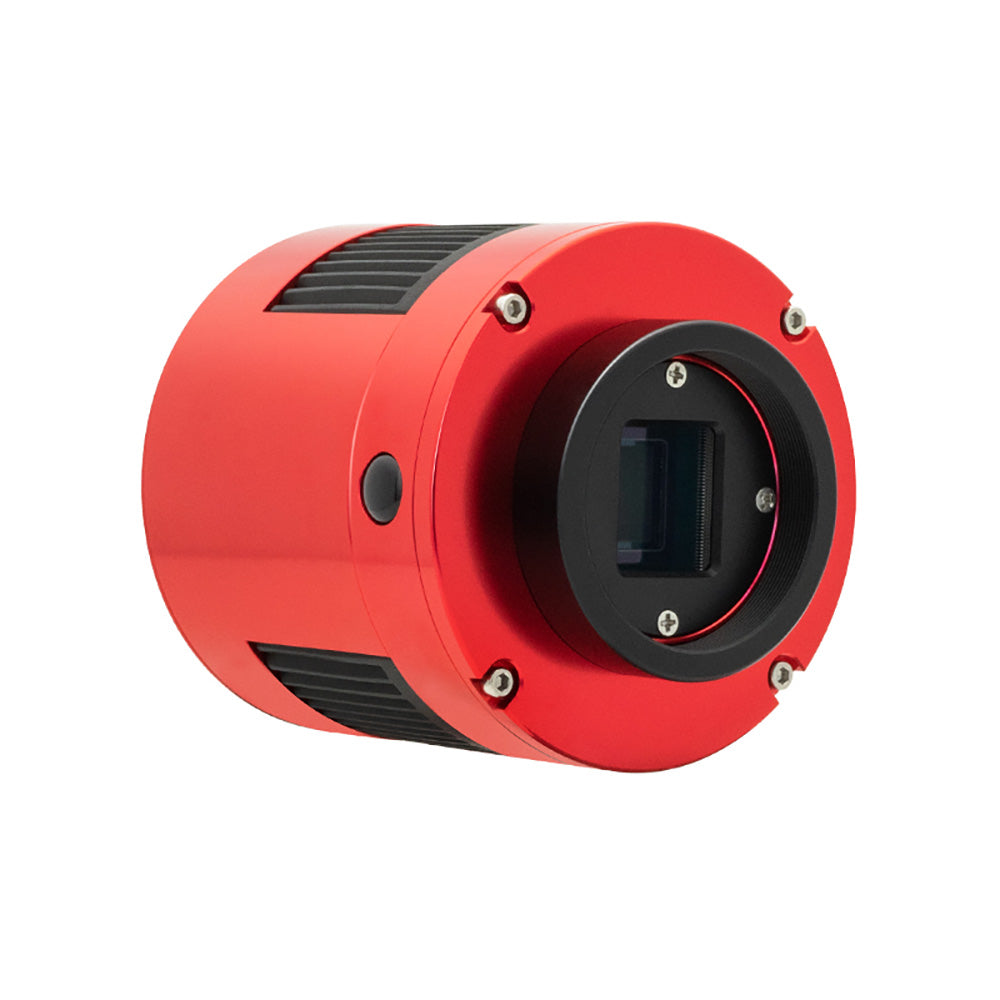

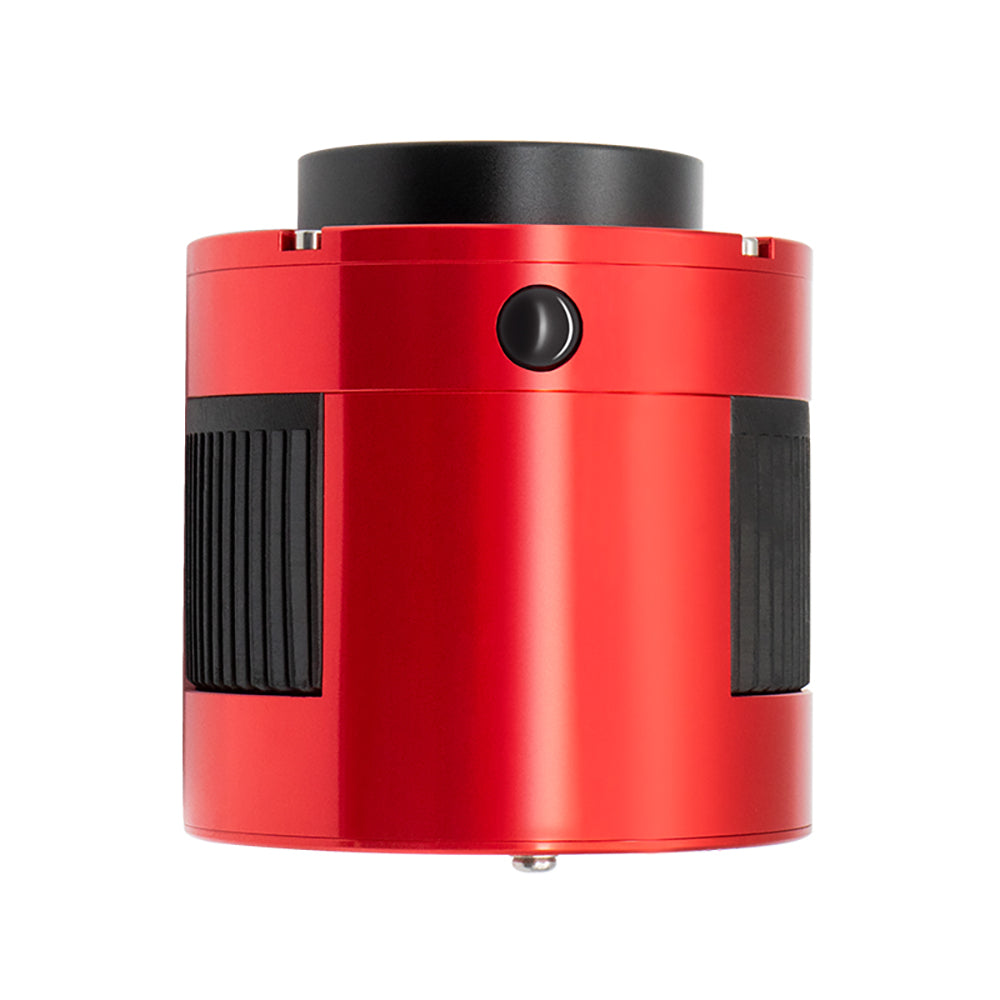

The ZWO ASI 183MC PRO is a cooled colour deep sky camera with the Sony IMX183 CMOS colour sensor. The 183MC has 2.4 micron pixels, a sensor diagonal of 15.9mm and a resolution of 20.18MP.

   ASI 183MC


The ZWO PRO cameras incorporate a 256MB DDR3 memory buffer that improves data transfer reliability and it minimizes the amp-glow caused by slow data transfer speeds.

The Sony’s back-illuminated Exmor R technology allows to push the ASI183 QE peak to a remarkable 84% (for the monochrome version). In Ha channel, the QE is over 60%.

A higher QE means more light converted into signal. Across the entire visible spectrum, the QE is never below 50%.

The USB 3.0 Port provides 5Gbps bandwidth and lets the camera run at 19fps (12bit, normal mode) or 19fps (10bit, high speed mode) at full resolution (20.18 Mega).

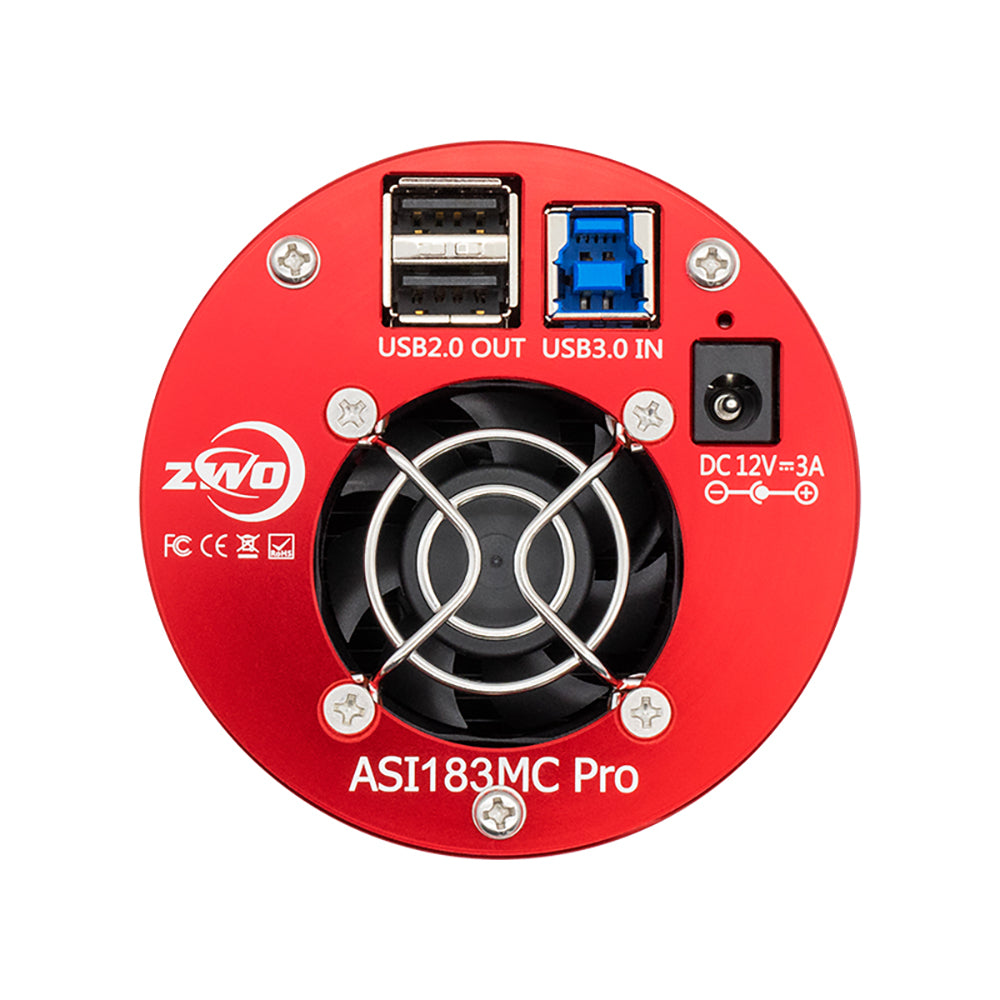

The USB 2.0 Hub allows to connect 2 USB controlled accessories such as a filter wheel, a guiding camera or an electronic focuser, reducing the amount of cables that run directly from your computer.

The 2 stages TEC cooling system allows a ΔT of 40°C-45°C below air temperature.

Note: All cooled ZWO cameras require an external power supply of 12V at 3-5A with a 2.1×5.5 mm connector (positive tip).

ASI 183MC

The dark current of the ASI183 is extremely low, based on our test results.



Sensor

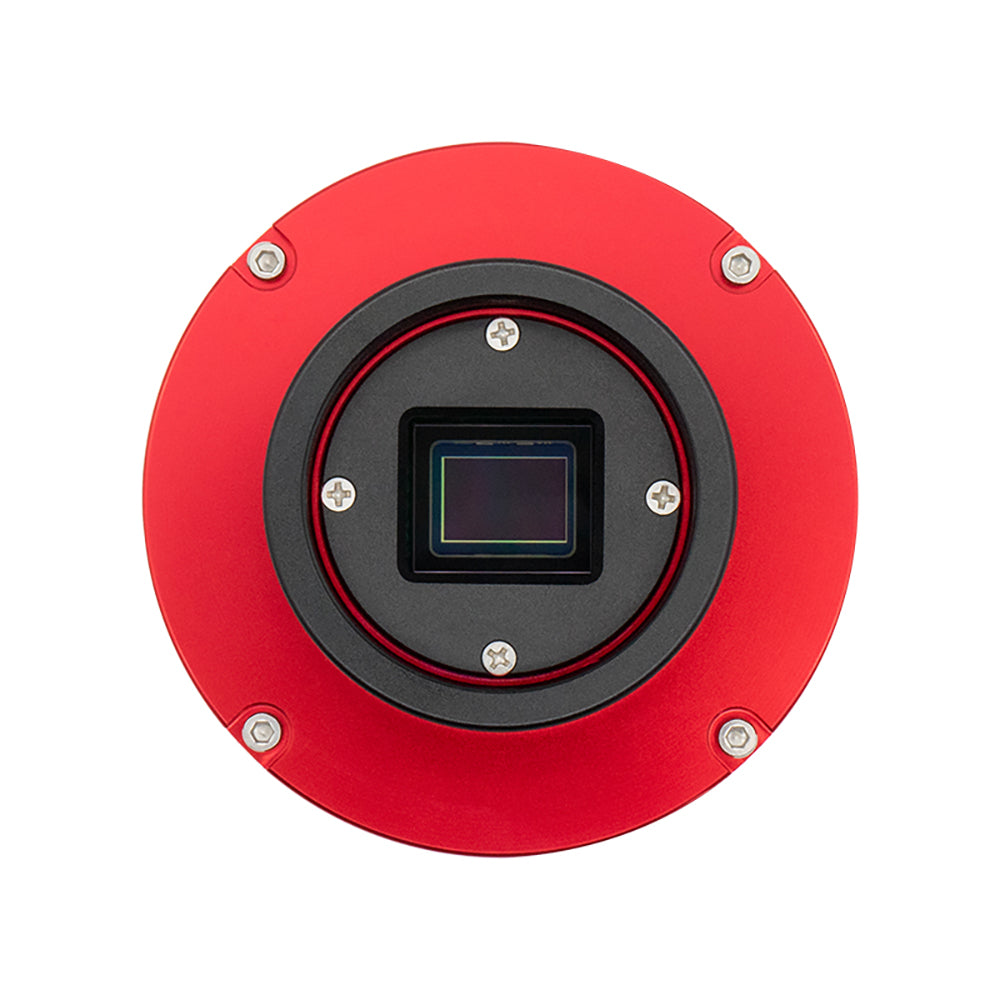

1″ CMOS Sony IMX183CLK-J/CQJ-J - colour

Resolution

20.18 Megapixels 5496 x 3672

Pixel size

2.4 µm

Sensor size

13.2 mm x 8.8 mm (15.9 mm diagonal)

Quantum efficiency

84%

Exposure range

32µs-2000s

Read noise

1.5 ~ 3.0 e (@ 30 dB)

Full Well Capacity

15,000 e

Bit rate

12 bit

Speed

19 fps

Shutter type

Rolling shutter

Cooling

ΔT of 40°C-45°C

Memory buffer

256Mb DDR III

ROI

Supported

Compatibility

Mac, Windows, Linux

Protecting window

D32-2-AR coated

Ports

USB 3.0 / USB 2.0

Back focus

6.5 mm

Connections

2" / 1.25" / M42 x 0.75

Dimensions

Ø 78 mm; ↨ 77.5 mm

Weight

410 gr

Power supply

9-15V 3 A  (2.1×5.5 mm  connector)

SKU

ASI183MC-P


ASI 183MC

1. M43-T2 adapter

2. EOS-T2 adapter

3. 2”Filter (optional)

4. 1.25” T-Mount

5. 1.25” Filter (optional)

6. M42-1.25” adapter (optional)

7. T2 extender 11mm

ASI 183MC

ASI 183MC

  • Camera bag
  • Camera body
  • USB 3.0 cable 2m
  • 21mm extender (M42 male - M42 female)
  • 16.5mm extender (M48 female - M42 male)
  • 11mm M42 female extender (screwed to the camera)
  • Nose piece (M42 male to 1.25" female)
  • Internal adapter M42 (female) to M48 (male)
  • 2x USB 2.0 cables 0.5m
  • M42 male to 1.25" filter thread (necessary to connect a 1.25" filter inside the 11mm extender)
  • Set of shims
  • Plastic cap for 11mm M42 extender
  • Quick start guide

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Ben Stewart

Camera has worked great so far. A big learning curve for using a dedicated Astro camera but so far I am enjoying it. Here is my first dso.

G
Greg England
Very impressed

Ordered on Wednesday arrived Thursday and imaged that night!!
Very impressed by the small sensor and good fit to the Celestron Rasa8. Image 40 X 120Sec at gain 111. (Bias/Darks/Flats used)

R
Ralph Johnson

Arrived safe and well boxed! Camera is perfectly working. Let's wait for clearer sky to test it adequately and give a more detailed feedback!

D
Deonte Schiller

The camera works excellently out of the box under Linux. The package contains all necessary accessories. A special gadget is the flat USB3-cable. This one is very flexible so it doesn't transfer movements or vibrations to the telescope.
