ZWO ASI174MM MINI [MONO]
ZWO
35 FPS
12-bit
11.3 x 7.1 mm
5.86 µm
ZWO ASI174MM MINI [MONO] is backordered and will ship as soon as it is back in stock.
- Info
- Specifications
- Items included
- Downloads
- Reviews

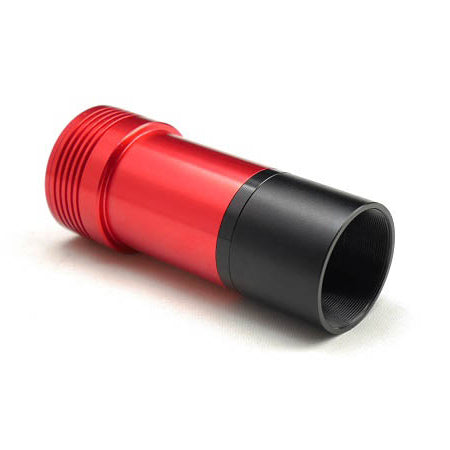

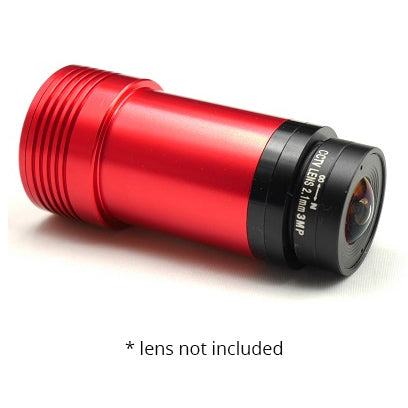

The ZWO ASI 174MM Mini is a guiding and planetary camera with a large sensor and large pixels that are ideal for telescopes with long focal lengths and off-axis guiders.
The ZWO ASI 174MM Mini contains the Sony IMX174LLJ / IMX174LQJ monochrome sensor which has a diagonal of 13.2mm and a resolution of 2.35 MPx.
The sensor has a high QE that reaches 77% at 500 Nm.

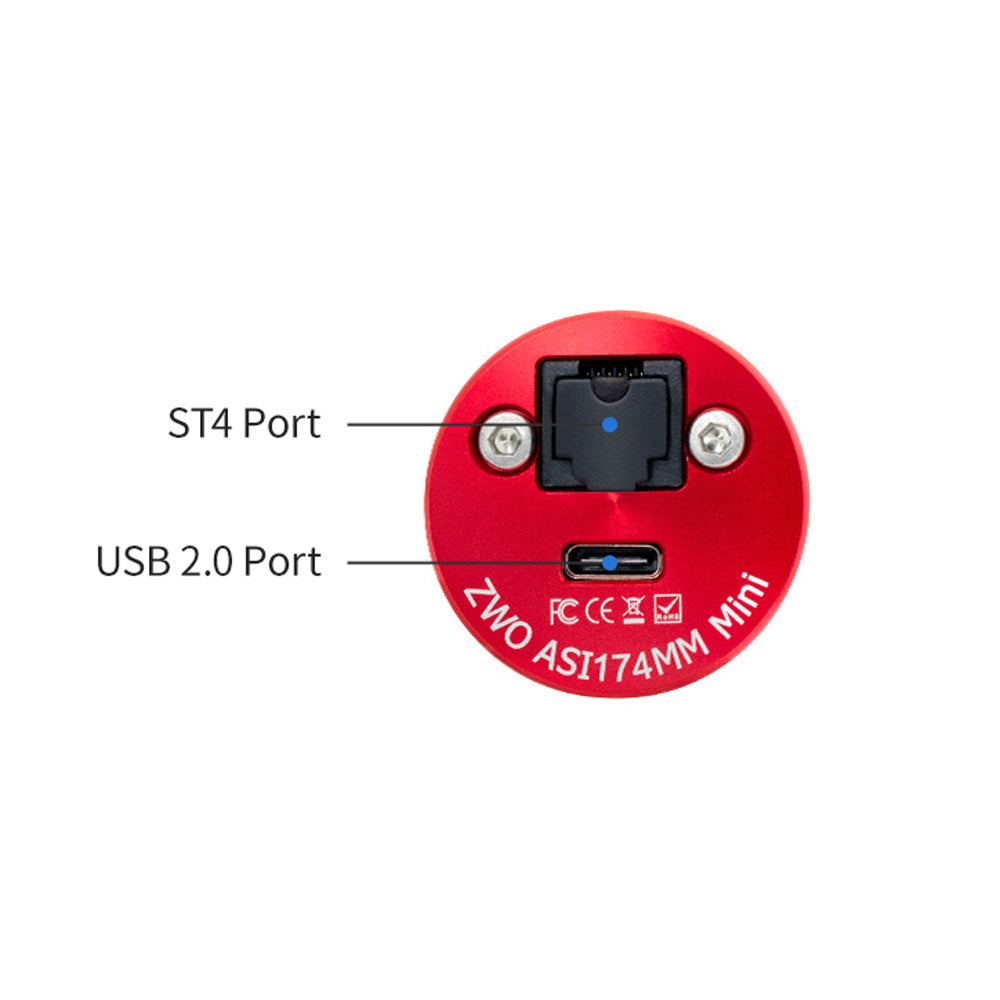

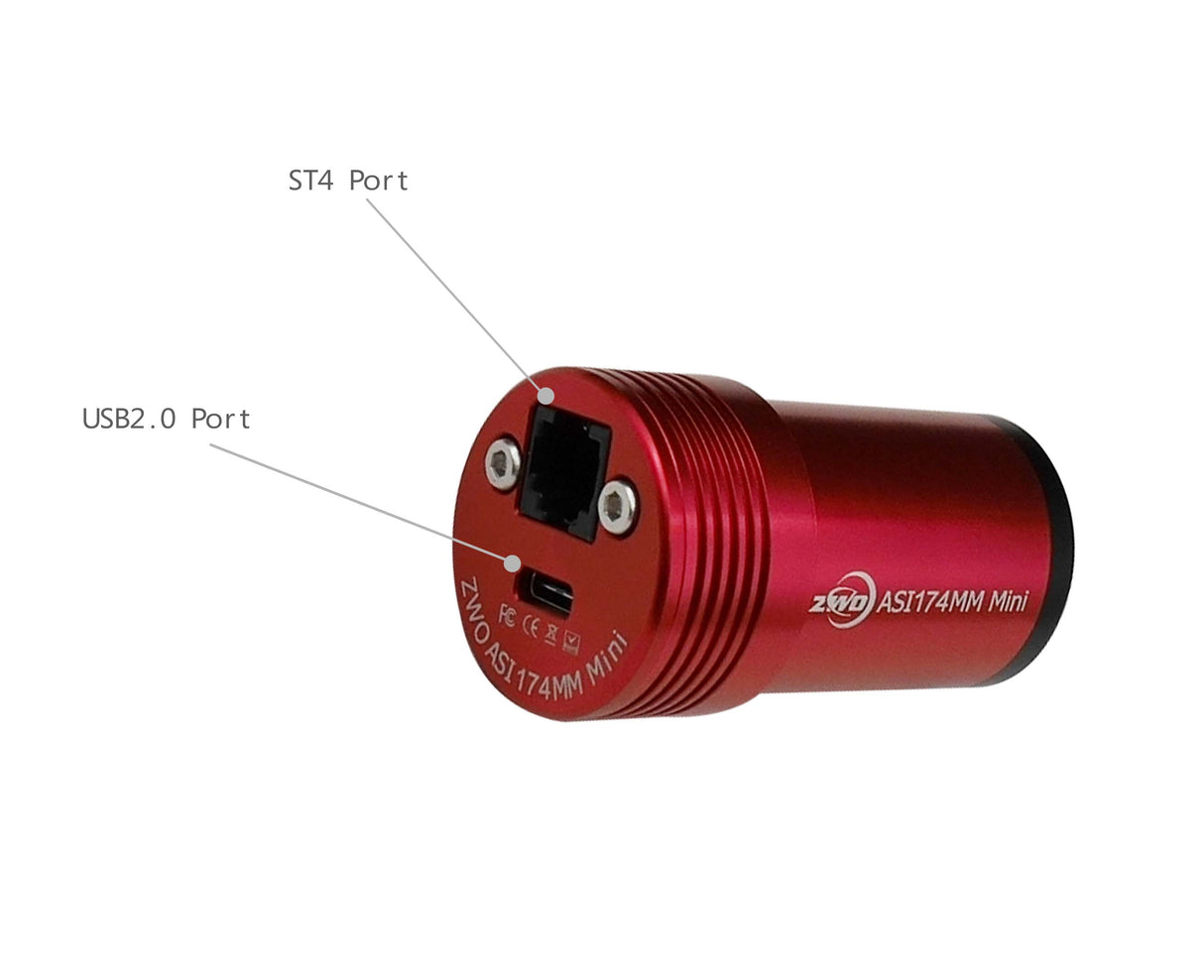

The ASI 174MM Mini uses a USB 2.0 type C port and it is also equipped with a ST4 port as guiding alternative.

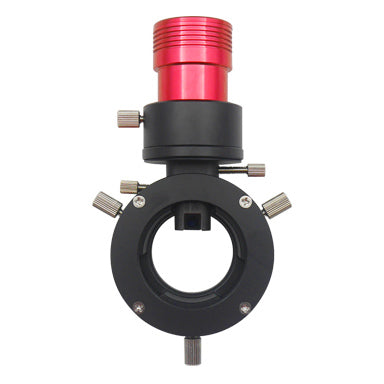

Compared to the classic ASI 174MM camera, the ASI 174 Mini is lighter, ideal for systems where there is not much back focus like off-axis guiders or finderscopes.
| Sensor |
1/1.2″ CMOS Sony IMX174LLJ / IMX174LQJ |
|
Resolution |
2.3 Megapixels 1936×1216 |
|
Pixel size |
5.86µm |
|
Sensor size |
11.3 mm x 7.1 mm (13.20 mm diagonal) |
|
Quantum efficiency |
77% |
|
Exposure range |
32µs-300s |
|
Read noise |
3.5 e (@ 30 Db) |
|
Full Well Capacity |
34,000 e |
|
Bit rate |
12 bit |
|
Speed |
35 fps |
|
Shutter type |
Rolling shutter |
|
ROI |
Supported |
|
Compatibility |
Mac, Windows, Linux |
|
Protecting Window |
AR coated |
|
Ports |
USB 2.0 / ST4 |
|
Back focus |
8.5 mm |
|
Connections |
1.25" / M28.5X0.6 |
|
Dimensions |
Ø 36 mm ; ↨ 61 mm |
|
Weight |
60 gr |
|
SKU |
ASI174MINI |
- M28.5-CS adapter
- CS-C adapter
- 1.25″ extender
- 1.25″ filter
Customer Reviews
Upgrading from 178MC to 174MM has made a real difference to my guiding. There are more stars for PHD to do multi-star guiding, better star profiles, and pixel size suits the image-scale at my FL of 1280mm. Very happy with results.
I bought this to use as a guide camera for my off axis guider . The large imaging sensor works great with the large prism to get excellent multi star guiding at longer focal lengths. Great product.
