Astronomy Specialist

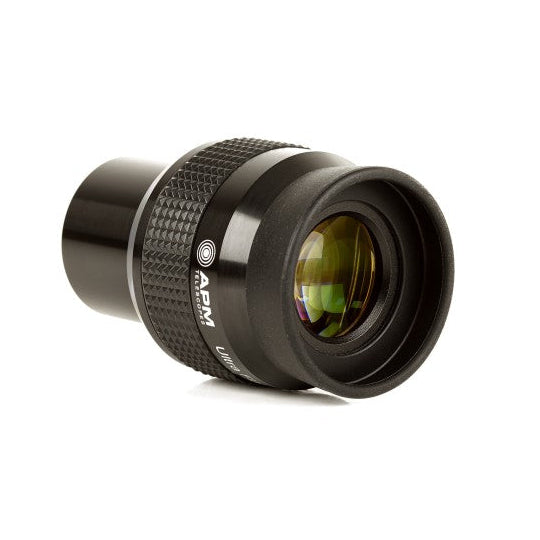

APM ULTRA FLAT FIELD 15MM EYEPIECE 65° FOV

$249.00AUD
SKU: APM-UFL15

APM

136 g

The 1.25" UltraFlat Field Eyepieces are made to a high quality standard with a very compact design, which is designed to remove the field curvature at the edge, resulting in a flat, distortion-free image within the visible field of view.

The APM Ultra Flat Field eyepiece series is a further development in field correction and viewing comfort. This series offers incredible performance, such as high-quality FMC multi-coating and effective internal blackening of the housing components which produce high-contrast, colour fidelity and a sharp image.

The UFL 15mm 1.25" delivers 15mm of focal length which can be used to view a wide range of celestial objects. The optical construction is 8 lenses in 5 groups, with an eye-relief of 16mm, which is sufficient for people who wear glasses.

Features:

  • 1.25" diameter with integrated filter thread
  • Large upper field lens for easy viewing
  • Suitable for people who wear glasses
  • Sharp-edged image (without distortion)
  • High quality multi coatings

Specifications:

Focal length
15 mm
Barrel
1.25"
Lens elements
8
Apparent field of view 65°
Eye relief 16 mm
Weight 136 g
SKU APM-UFL15



In the Box:
  • UFL eyepiece 15mm 65° 1.25"
  • Dust caps
