APM RICCARDI APO 1x FLATTENER FOR SHORT REFRACTORS

$799.00
SKU: APM-RIFLAT1

APM

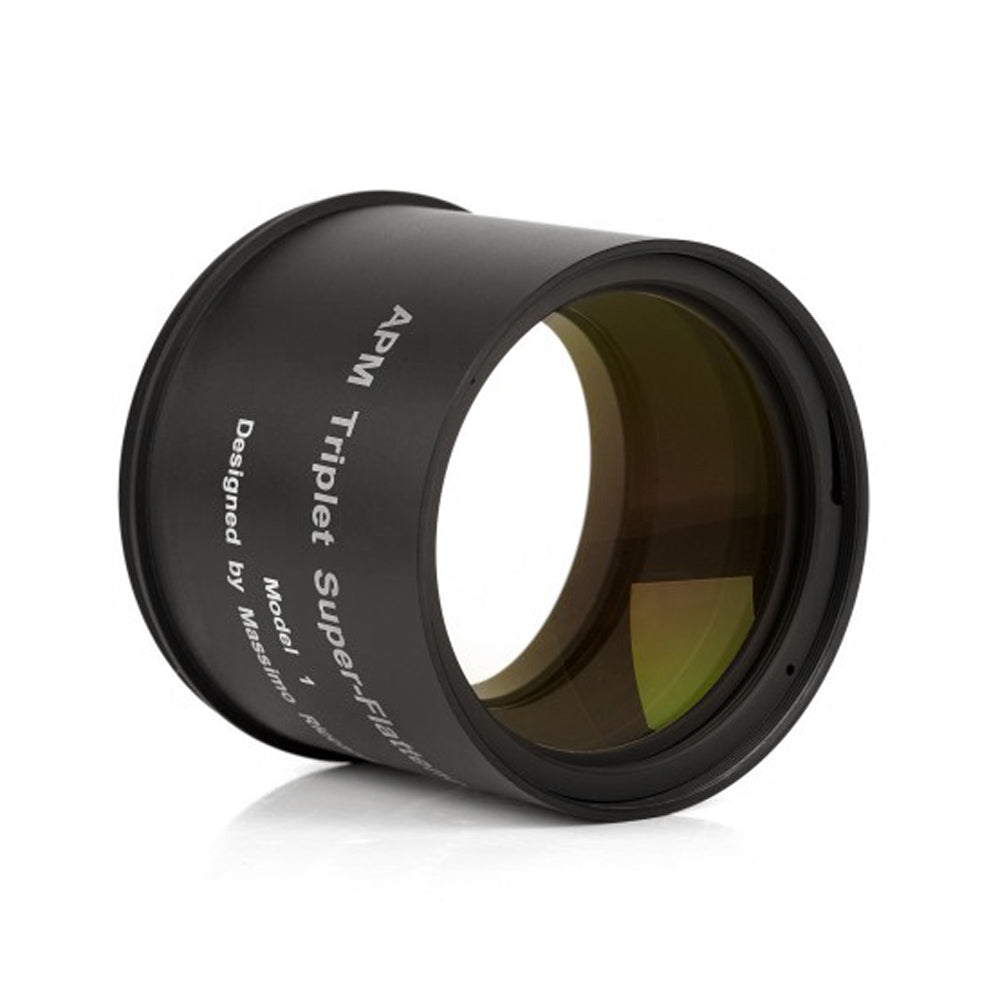

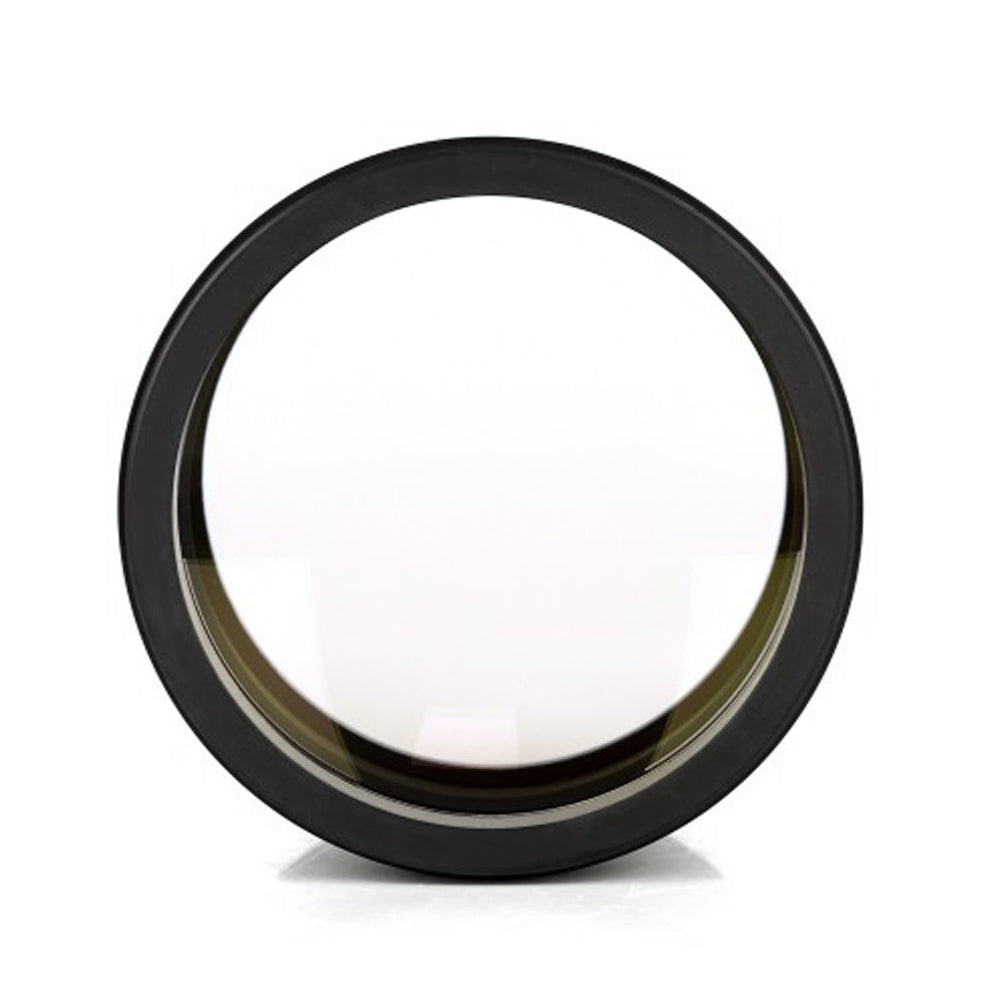

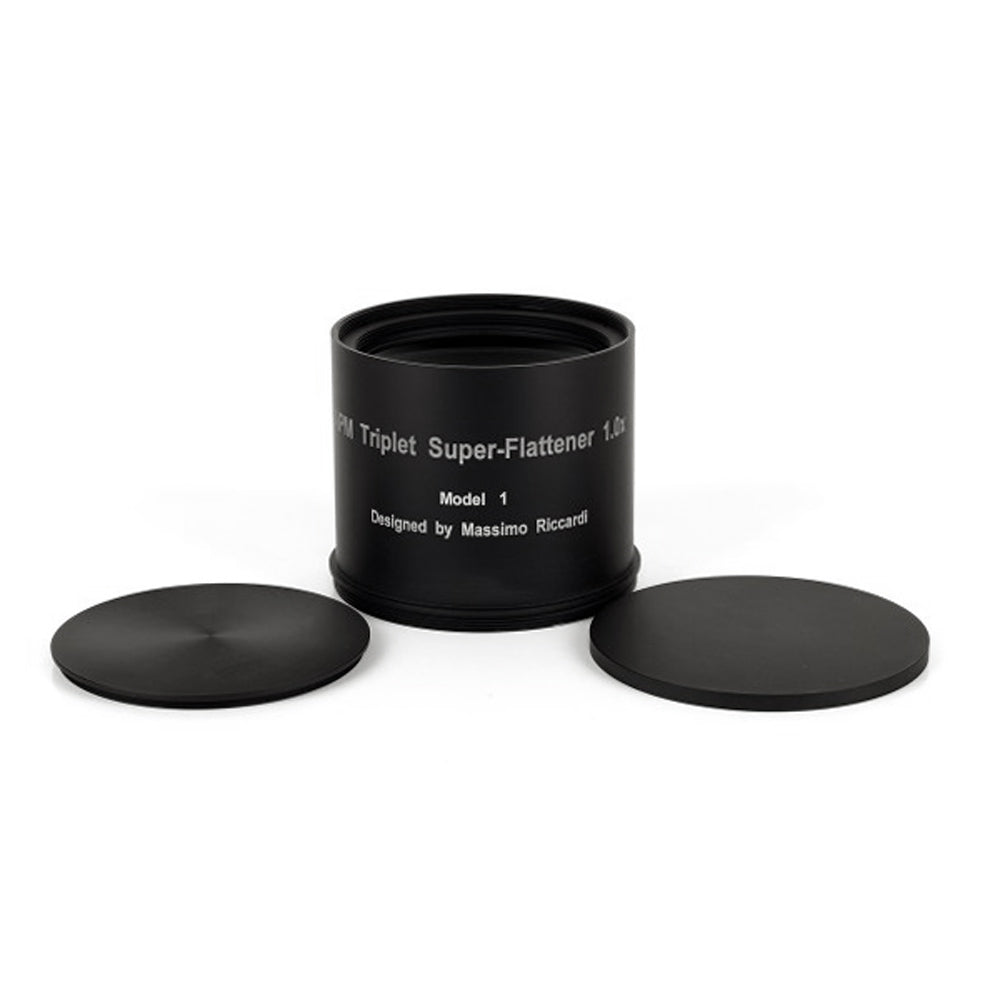

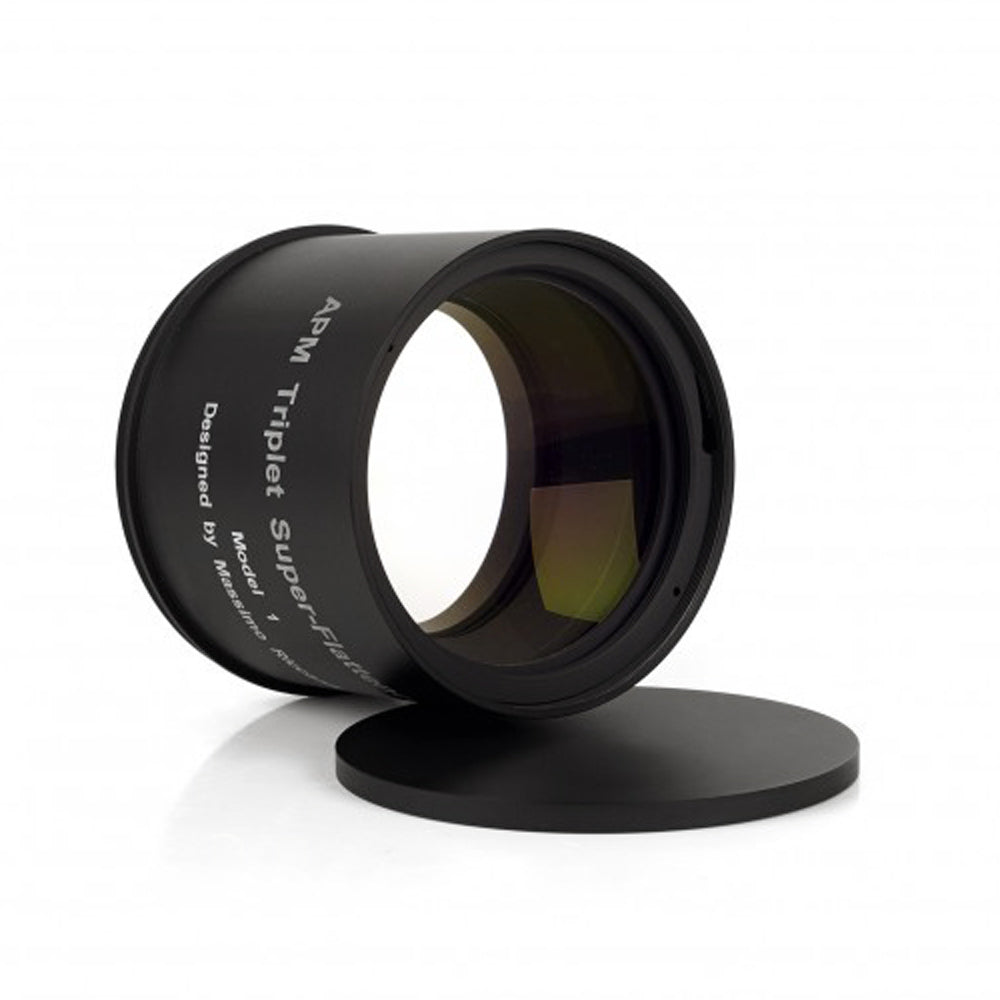

The APM Riccardi 1.0x Apo Flattener Model 1 is a high quality triplet ED flattener for short apochromatic refractors. This model is suitable for refactors with focal ratios faster than f/7 and focal lengths below 1000mm.

Designed by legendary optical designer Massimo Riccardi, this flattener provides a fully illuminated field of 60mm. It features exceptionally good correction of longitudinal and transverse aberrations with truly apochromatic performance. It has a large backfocus distance requirement of more than 90mm, making it possible to use a wide range of accessories such as rotators and off-axis guiders.

The APM Riccardi Flattener features state-of-the-art multi-coatings optimized for the spectral range of modern sensors.



Specifications



Telescope side connection
M82 x 1 male
Camera side connection
M68 x 1 female, M77 x 0.75 female
Backfocus distance Approximately 90 mm +/- 3 mm for refractors around 100 - 130 mm aperture and f/7 focal ratio
Coating
Multi-coating
Reduction factor
1.0 x
Illumination
60 mm
SKU APM-RIFLAT1



Backfocus



APM 107 / 700 with 3" or bigger focuser 92.8 mm from end of threads
APM LZOS 130 / 780 with 3" or bigger focuser
91.0 mm from end of threads
