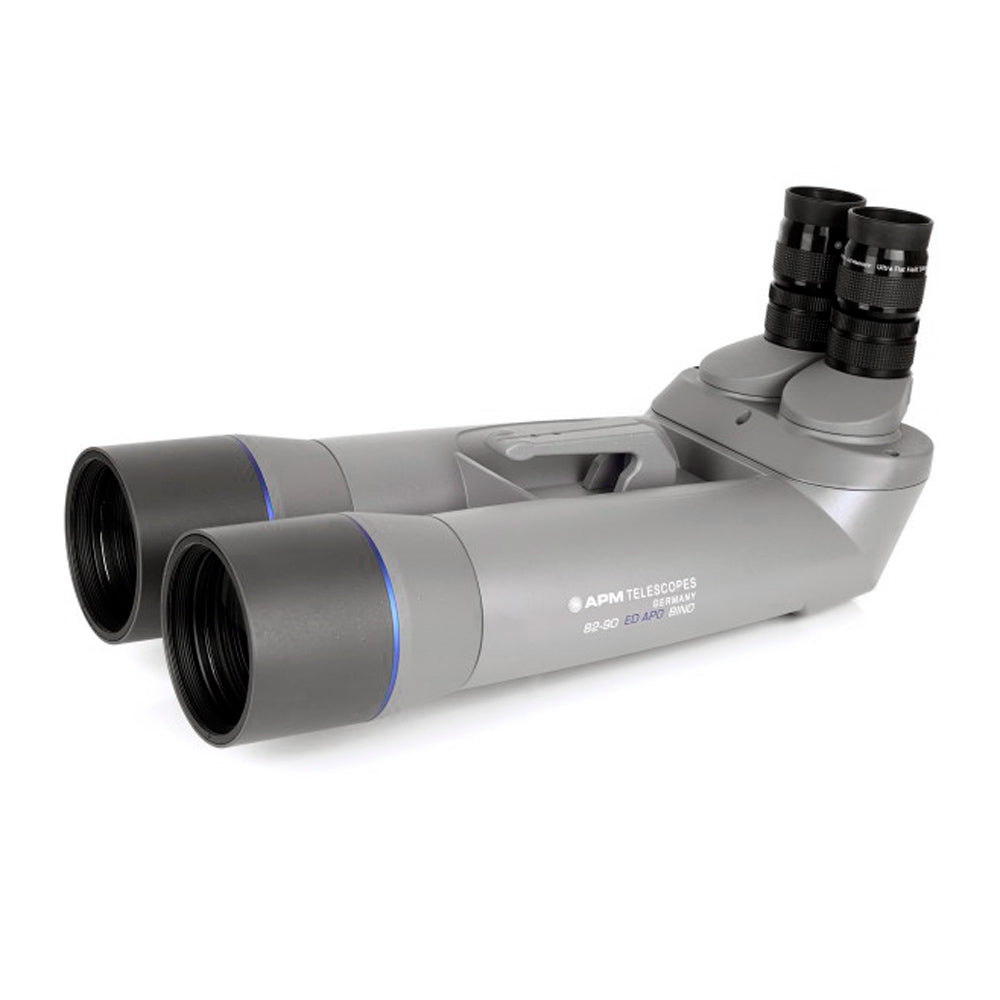

APM 82mm SD ED APO BINOCULARS 90°

$4,099.00AUD
SKU: APM-82-SD-Bino90

APM



The APM 82mm SD ED 90° Binoculars are high quality apochromatic binoculars with doublet lenses and BAK-4 prisms for high contrast views of astronomical and terrestrial objects. All optical surfaces are fully broadband multi-coated for high transmission and contrast.

The extendable dew shields protect the lenses during long observations and can be used as a light shade during daytime viewing. The binoculars include a tripod mounting connection and a heavy duty carrying handle. The nitrogen-filled housing is weatherproof and made of magnesium alloy for maximum rigidity and lightness.

APM binoculars are designed to provide comfortable focus position with common high-end 1.25" eyepieces such as those by Baader. The interpupillary distance can be adjusted and each eyepiece can be individually focused. Thanks to the standard 1.25" holders, wide-angle eyepieces can be used.

Both 90° and 45° versions are available. Typically 45° is better suited to low altitude astronomical objects and earth observation, with the 90° version providing a more comfortable position for high altitude astronomical objects.

Note: Eyepieces are not included. It is highly recommended to mount these on a tripod such as the incredibly sturdy Geoptik Binoplus Pantograph mount.

Specifications



Focusing system
Helical focuser for each eyepiece
Number of lenses
2 on each side
Tripod thread
1/4"-20 thread
Coating
All optical surfaces fully broadband multi-coated
Housing
Magnesium
Eye relief
54 - 76 mm
Field stop diameter
28 mm
Front lens diameter 82 mm
Objective angle of view Max 3.42°
Focal length 470 mm
Dimensions 470 x 225 x 180 mm
Weight 4.8 kg including tripod adapter without eyepieces
Waterproof Splashproof, nitrogen-filled
Dew shields Extendable
Dew shield inner diameter thread M90 x 1, 4mm threads
SKU APM-82-SD-Bino90
