Astronomy Specialist

APM 152mm F/7.9 APO DOUBLET WITH 2.5" ZTA

$3,241.00 USD
SKU: APM-152-1200-FPL51/La-D-2.5ZTA

APM

Apochromatic doublet

152 mm

f/7.9

1200 mm

10.7 kg

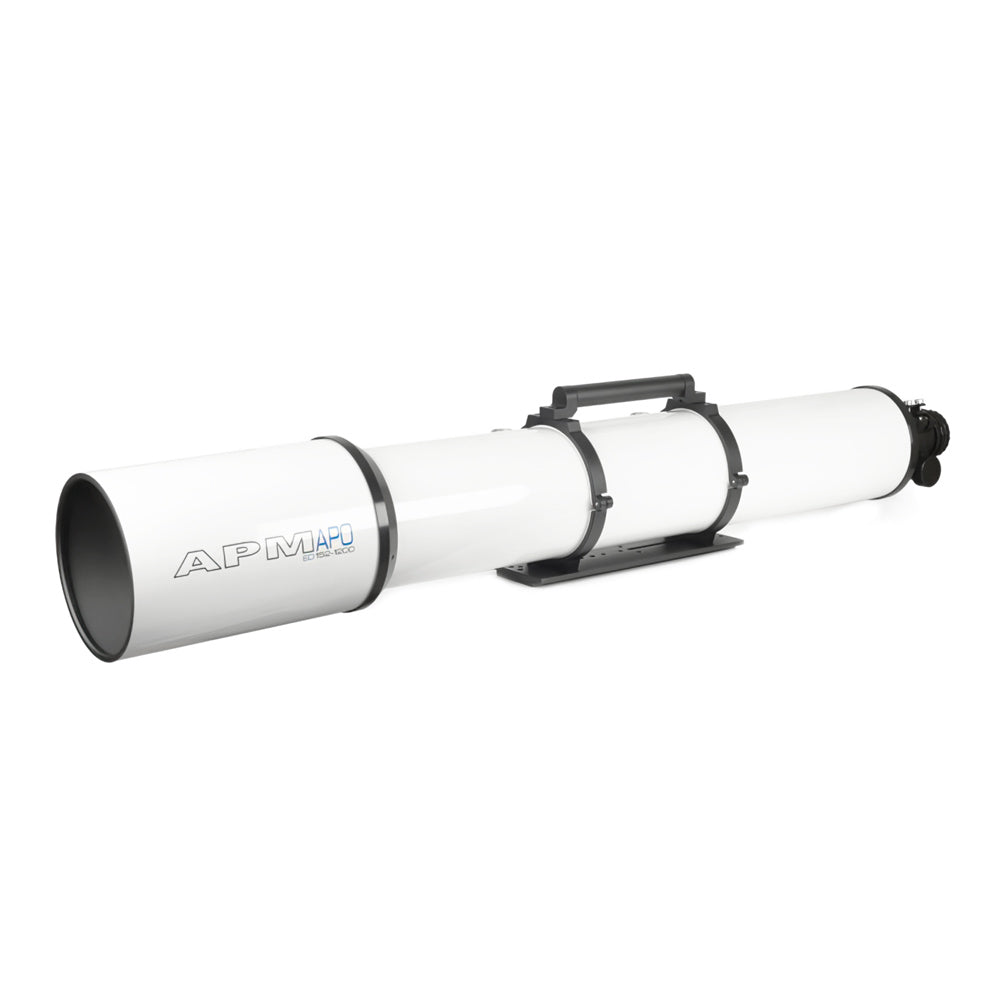

The APM 152mm F/7.9 Apo is an apochromatic doublet refractor with optics from APM's SuperED FPL51 Apo series. The air-spaced doublet lens cell provides exceptional correction for observation and astrophotography. The use of one element of FPL51 glass combined with a second lens made from lanthanum glass results in excellent control of chromatic aberration.

The APM 152mm Apo has a native focal length of 1200mm and a focal ratio of f/7.9, making it the ideal instrument for capturing a small planetary nebulae and galaxies. The optics feature broadband multi-coatings on each surface for high contrast and transmission. All APM telescopes are tested at the factory with an interferometer to guarantee their performance.

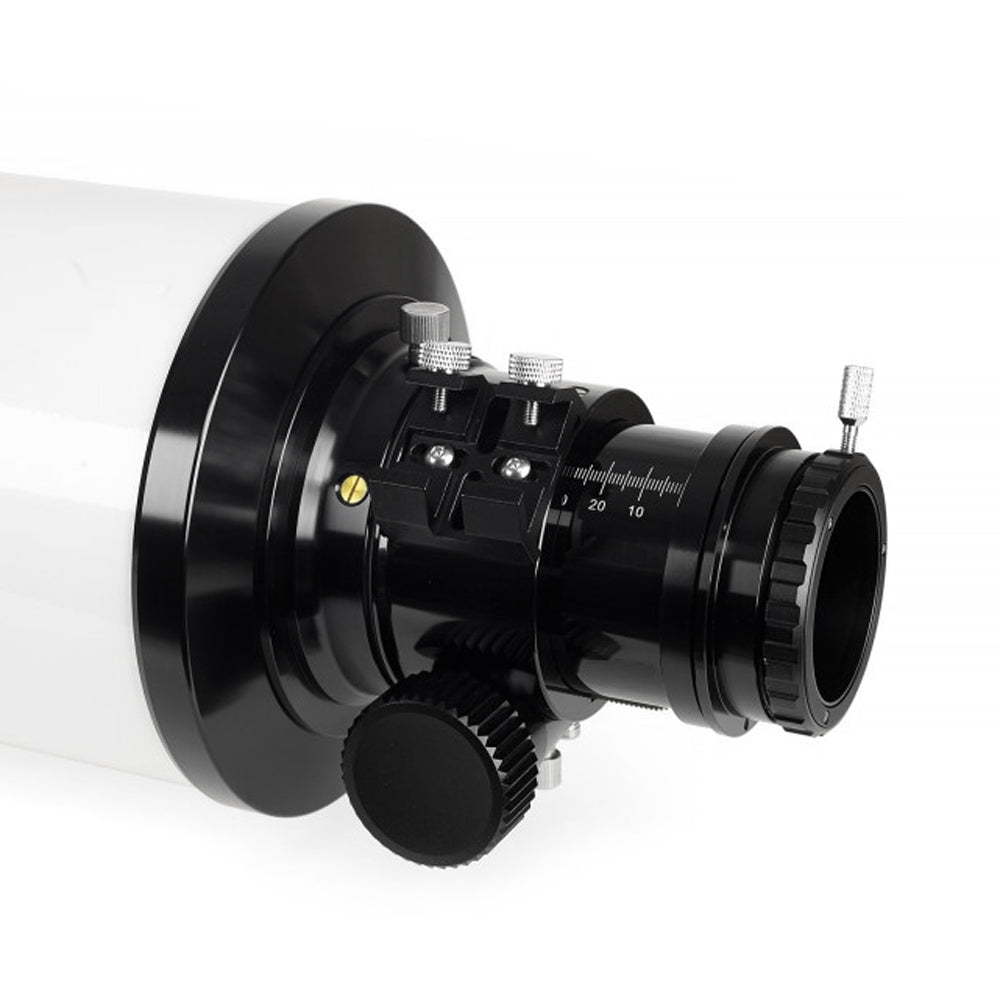

The 2.5" ZTA rack and pinion focuser is smooth and accurate with 1:10 fine focusing and integrated 360° rotator. Equipment can be securely fastened by using the included APM Fast Lock 2" & 1.25" adapter.

The telescope comes standard with a Losmandy-style bar, CNC-machined rings, carrying handle and high quality APM-LZOS aluminium tube.

With the addition of the universal APM M82 Riccardi 0.75x reducer, the telescope is transformed into a highly corrected astrograph with a large 52mm corrected image circle



Optical design Super apochromatic doublet with ED glass
Lens cell
Air-spaced doublet with 1 x FPL51 lens and 1 x Lanthanum lens
Coatings
Broadband multi-coatings
Objective diameter
152 mm
Focal length at prime focus
1200 mm
Focal ratio at prime focus
F/7.9
Backfocus distance at prime focus
230 mm from M82 x 1 adapter
Connections 2", 1.25", M68 x 1
Dovetail bar Losmandy-style bar
Dew shield diameter 186 mm
Tube diameter 156 mm
Tube length 1220 mm with dew shield extended, 1020 mm with dew shield retracted
Tube weight 10.7 kg
SKU APM-152-1200-FPL51/La-D-2.5ZTA
