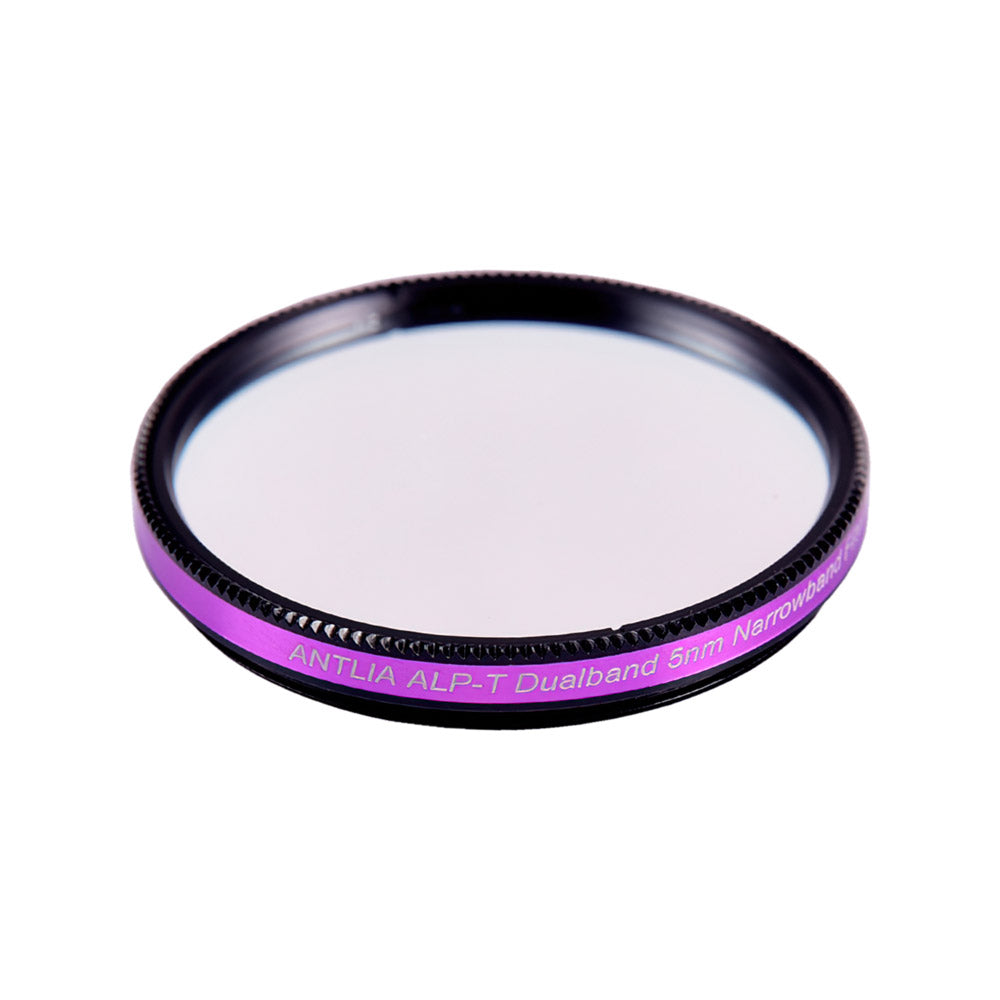

ANTLIA ALP-T FAST GOLDEN DUAL BAND FILTER

$649.00 AUD
SKU: AN-ALP-T2FAST

Antlia

  • 5 nm

FREE SHIPPING


Size



The new Antlia FAST ALP-T Golden Dual Band filter is specifically designed for astrophotography with colour DSLR, CMOS or CCD cameras with fast focal ratios between f/2.2 and f/3.6. Narrowband filters are typically designed with optics slower than f/3-4 in mind and when used with faster telescopes, the passing band can shift off-wavelength, resulting in much less of the desired signal getting through.

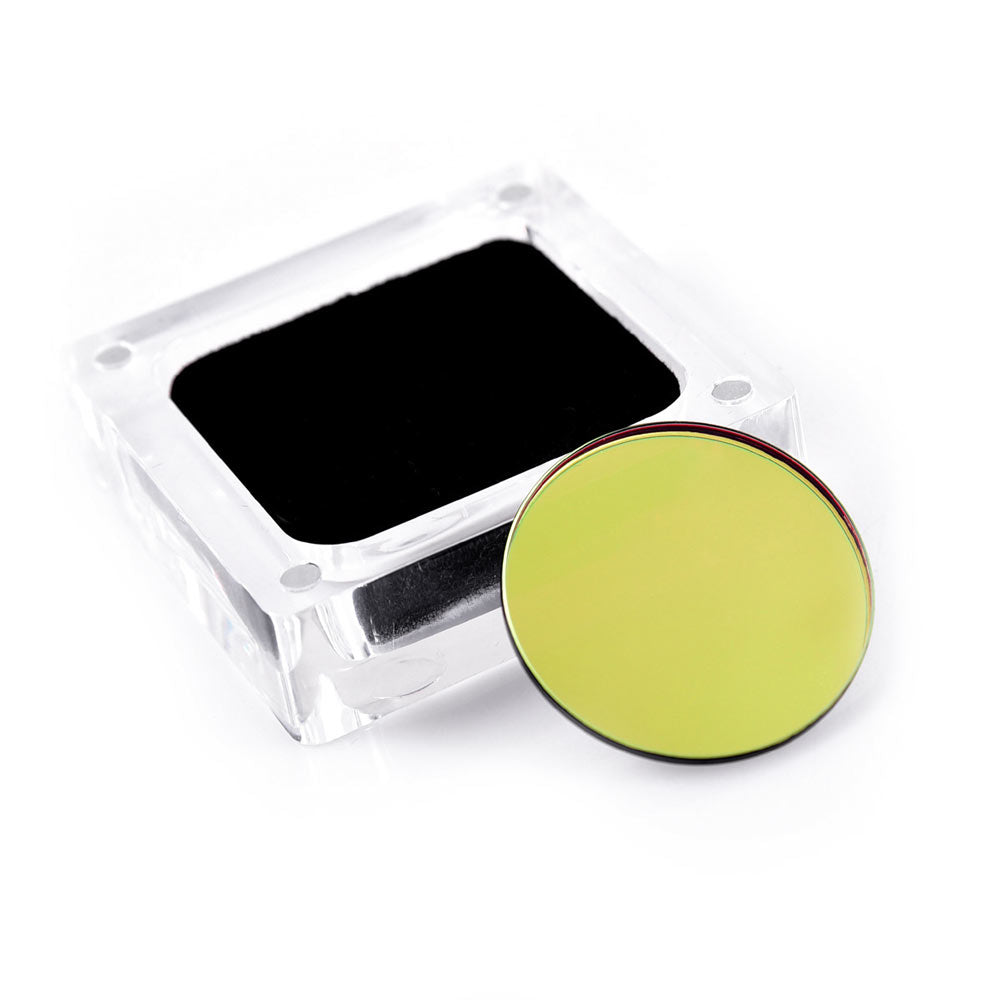

The 36mm unmounted variant comes with a handy mounting adapter so you can use it with 2" filter drawers and accessories!

Its two 5nm passing bands are exceptional at isolating nebulae emissions in H-Alpha and OIII. The optical density of 4.5 suppresses unwanted wavelengths from light pollution, moonlight and skyglow, resulting in superior signal-to-noise ratio and better contrast.

Like all Antlia filters, the Golden Dual Band filter has excellent halo suppression, making imaging of targets surrounded by bright stars such as the Horsehead Nebula pain-free.





IC 434 by Hyunsu Lee | SkyWatcher 130mm f/5 with MPCC, IMX571, 2" Antlia Golden Dual Band filter, 300 sec x 24, Bortle 5.



  • It blocks the artificial light from mercury vapour lamps, both high and low pressure sodium vapour lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. skyglow).
  • Maximum transmission of the main nebula emission lines at OIII (502.2nm) is >82% and H-alpha (657.8nm) is >90%. Good signal is still achievable with optics as fast as f/3.
  • Two transmission bands with a bandpass of 5nm. OD4.5 @ 300-1100nm.
  • Ideal for urban areas with extreme light pollution.
  • It incorporates an IR/UV-Cut filter that is necessary in astrophotography, especially for astronomy cameras that are sensitive to the infrared radiation.
  • Ultra-thin filter cell to maximise the compatibility with most filter drawers.
  • Ideal flat-top and moderate bandpass reduces spectrum down shifts.
  • Designed for best performance at focal ratios between f/2.2 and f/3.6.

To even further enhance the contrast, and suppress the stray light and internal reflections, Antlia applies edge-blackening coating on each filter. Each filter is individually tested to ensure a high quality standard. The tight tolerance of the filters substrate assure a maximum deviance of ±0.05 from specifications making these filters parfocal.

DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS. Serious eye damage will occur.





Passing band 5 nm (FWHM)
Glass thickness

2.0 mm ±0.05

Optical flatness

1/4 λ (wavefront)

Bandpass transmission H-a >90%, OIII >82%
Off-band transmission OD4.5 @ 300-1100 nm
Coating Double-sided multilayer nano-coating
Surface quality 60/40 (in accordance with US military watch MIL-O-13830)
Parallelism 30"
SKU
2" - AN-ALP-T2FAST, 36mm - AN-ALP-T36FAST






IC 63 by Hyunsu Lee | SkyWatcher 130mm f/5 with MPCC, IMX571, 2" Antlia Golden Dual Band filter, 300 sec x 32, Bortle 5.





NGC 2244 by Hyunsu Lee | SkyWatcher 130mm f/5 with MPCC, IMX571, 2" Antlia Golden Dual Band filter, 300 sec x 30, Bortle 5.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Peter Bott
First light new filter

With rain and clouds and moonlight for the last week, I ordered the ALP-T FAST GOLDEN DUAL BAND for my Rasa 8". It arrived Friday and so did the clear skies. I chose the Lagoon Nebula and was gob smacked with the first image.
Rasa 8
Asi183MC Pro
Antlia ALP-T Fast Golden Dual Band

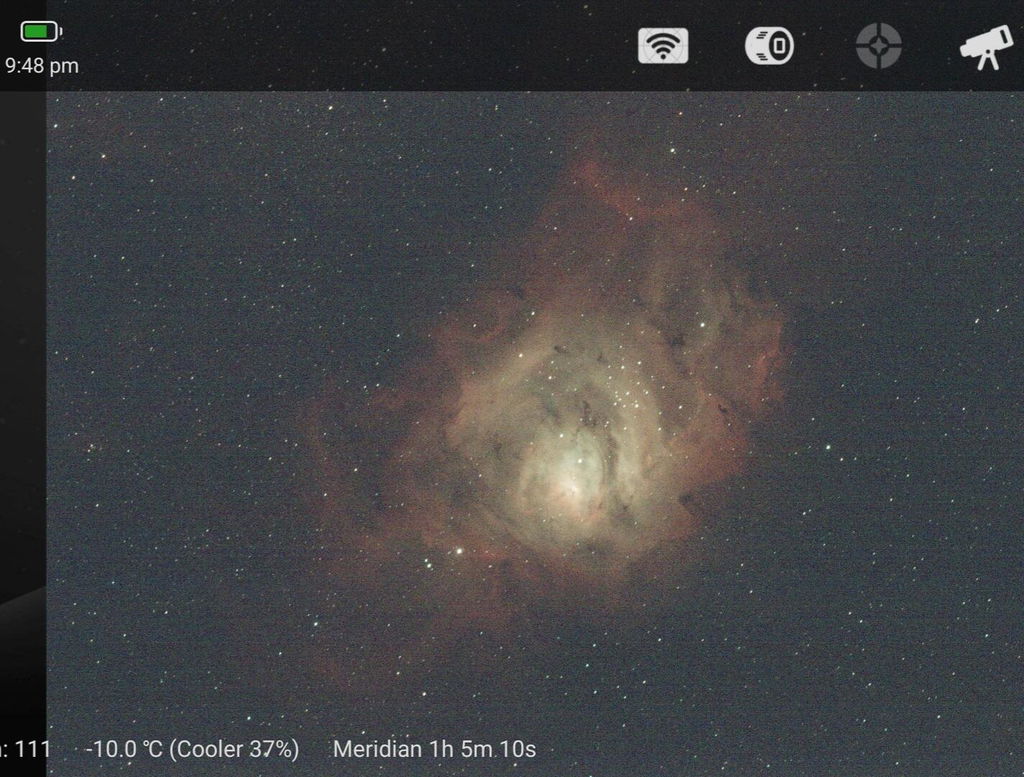

Attached photo is 1 x 15 second sub.

Best money spent, I love this filter.

c
clive garner
Shots using the Gold Fast filter

An excellent fast filter. No star halos and reduced star bloating.
Eta were done using hyperstar v4 8" 10 x 60seconds
Vela were done on a Redcat51mm with asi 071 camera
10 x 10 minute subs.

P
Paul Brown
First light with a RASA 8

A great filter for the RASA scope, great for light polluted skies and great with bloated stars! Nebulosity just pops out. Attached image is only 30x 120 seconds using a ZWO183MMC Pro! Stunning and impressed.
