ADAPTER M52 MALE - M42 FEMALE 2mm

$36.00 USD
SKU: AX-M52M-M42

Testar

  • M52 x 0.75 Male
  • M42 x 0.75 Female
  • Optical thickness: 2 mm

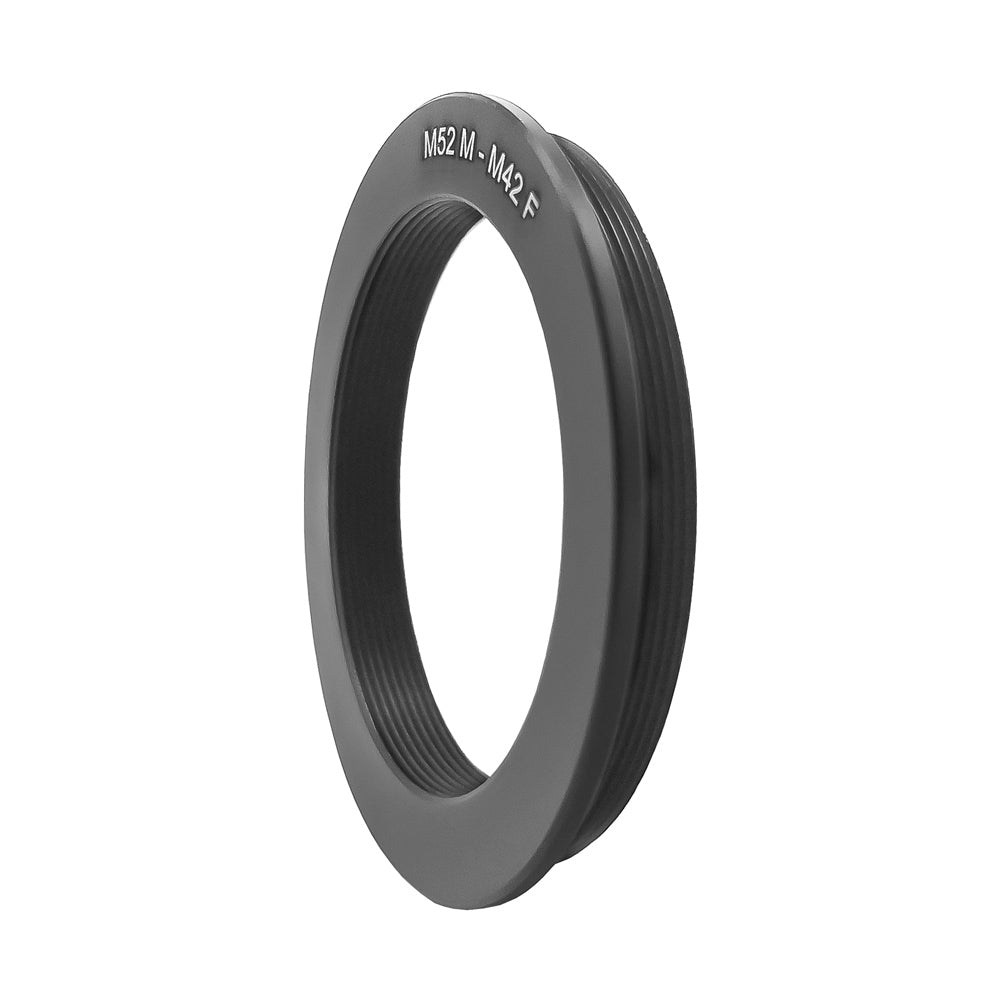

This M52 Male to M42 Female adapter has male M52 x 0.75 threads on one side and female M42 x 0.75 threads on the other. It can be used to connect accessories which have M52 female threads such as some Takahashi adapters and correctors to accessories with male M42 (T2) threads.



Optical length
2 mm
Clear aperture
41 mm
Outer diameter
55 mm
Connection side A M52 x 0.75 male
Connection side B M42 x 0.75 female
SKU AX-M52M-M42
