PRIMA LUCE LAB 140mm RINGS

$549.00AUD
SKU: PLLANSU140P

Prima Luce Lab




The 140mm PLUS support rings are designed for optical tubes with a diameter of Ø140mm. These rings belong to the PLUS system (Prima Luce Universal System) that includes a large variety of telescope rings, bars, guide rings and dovetail clamps. The rings have a system of drilled and threaded holes that maximize the compatibility between parts, allowing several mechanical combinations and assembly solutions.

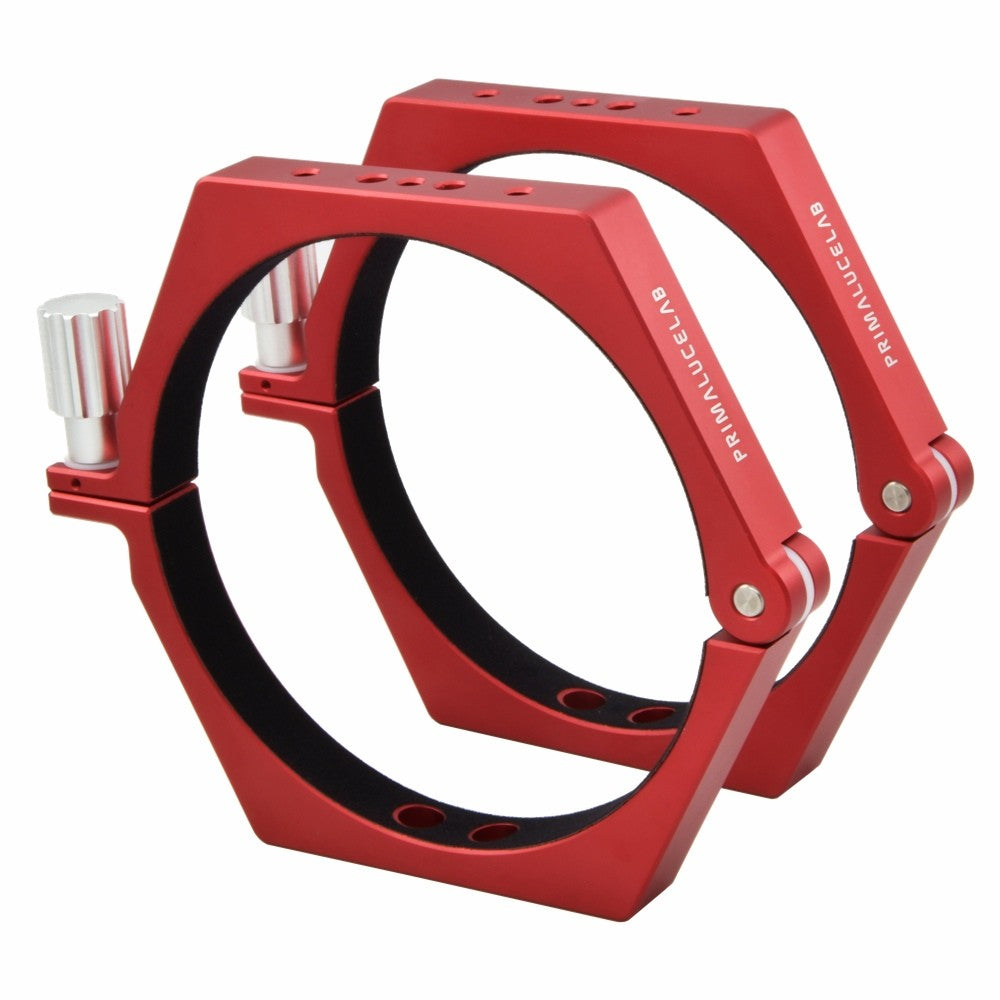

Prima Luce Lab 140mm telescope rings

Each component of the PLUS system is carved from aluminium blocks with CNC machines. Then, the aluminium is sandblasted to achieve a very smooth surface finish and it is anodized (hard anodizing) to increase the hardness of the material and to protect it from oxidation.

Due to the particular design, the 140mm PLUS support rings are equipped with tapped holes (above and below each ring) to allow the attachment of:

  1. Vixen or Losmandy bars below the rings to install the telescope on any mount
  2. PLUS guide rings (each ring can be fixed on the support ring with 2 screws)
  3. Vixen or Losmandy bars above the rings to increase the rigidity of the telescope assembly and to allow the installation of other accessories such as dovetail clamps.



    Specifications



    Material

    Aluminium

    Internal diameter

    140 mm

    Weight

    350 g each, 700 g both

    SKU

    PLLANSU140P


    Prima Luce Lab PLUS 140mm telescope tube rings dimensions
