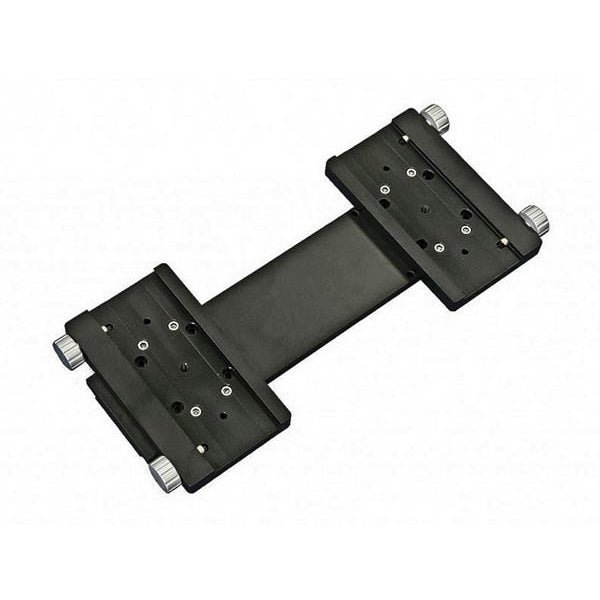

10 MICRON LATERAL DOUBLE 3" PLATE - LODUAL

Testar Australia is a technical assistant dealer for 10 Micron. Our staff has been trained at the 10 Micron factory to provide assistance, repairs and maintenance on their products.

This special double plate is designed to allow a parallel mounting of two optical tubes on the 10 Micron mounts. The bottom slide is a standard 3” dovetail bar (Losmandy compatible) #10M2130; the clamping plates are two 3” Losmandy compatible (#10M2085).
All the components are CNC machined, black anodized aluminium. There are 3 different possible distances between the two clamps: approx. 210, 245 and 281mm.

Note:
– The GM1000 HPS mount needs the #10M1105 adapter in order to maintain the correct encoder’s position references
– All the other mounts require a #10M2085 or #10M2185 3″ Losmandy clamping plate.

Specifications

• Material: Black anodized, CNC machined aluminium
• Bottom dovetail 3” Losmandy slide (#10M2130) with special drilling
• Two 3” clamps #10M2085, Losmandy compatible
• Center to center distance: adjustable, approx. 210, 245 and 281 mm
• “Base” bar length: 400 mm
• Weight: 4 kg

Included Items

• Bottom dovetail 3” Losmandy (#10M2130), 400 mm length
• Nr.2 x 3” clamps #10M2085, Losmandy compatible (all the components are pre-assembled and aligned)
