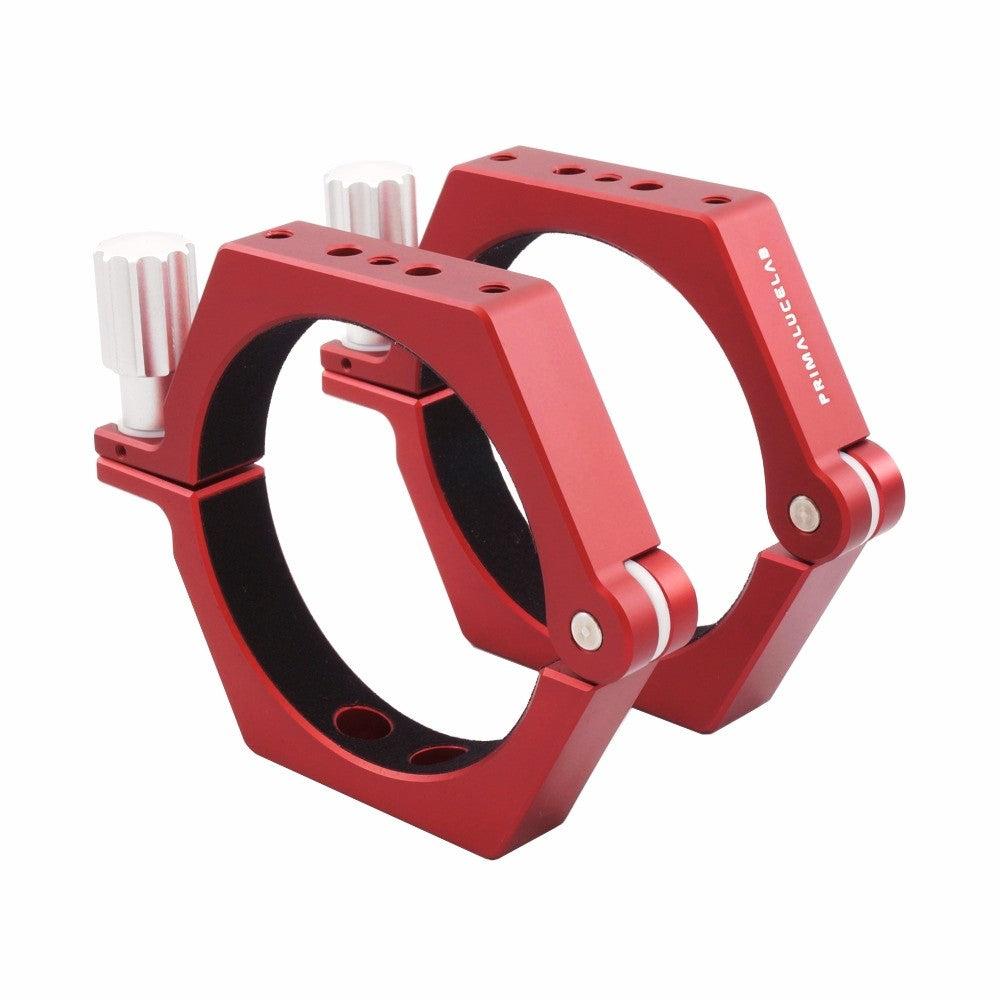

PRIMA LUCE LAB 100mm RINGS

$230.00 USD
SKU: PLLANSU100P

Prima Luce Lab




The 100mm PLUS support rings are designed for optical tubes with a diameter of Ø100mm. These rings belong to the PLUS system (Prima Luce Universal System) that includes a large variety of telescope rings, bars, guide rings and dovetail clamps. The rings have a system of drilled and threaded holes that maximize the compatibility between parts, allowing several mechanical combinations and assembly solutions.

The 100mm PLUS can be used with SkyWatcher ED80 or ED100 telescopes.

Each component of the PLUS system is carved from aluminium blocks with CNC machines. Then, the aluminium is sandblasted to achieve a very smooth surface finish and it is anodized (hard anodizing) to increase the hardness of the material and to protect it from oxidation.

Due to the particular design, the 100mm PLUS support rings are equipped with tapped holes (above and below each ring) to allow the attachment of:

  1. Vixen or Losmandy bars below the rings to install the telescope on any mount
  2. PLUS guide rings (each ring can be fixed on the support ring with 2 screws)
  3. Vixen or Losmandy bars above the rings to increase the rigidity of the telescope assembly and to allow the installation of other accessories such as dovetail clamps.





Material

Aluminium

Internal diameter

100 mm

Weight

255 g each, 510 g both

SKU

PLLANSU100P



Prima Luce Lab PLUS 100mm telescope tube rings dimensions
