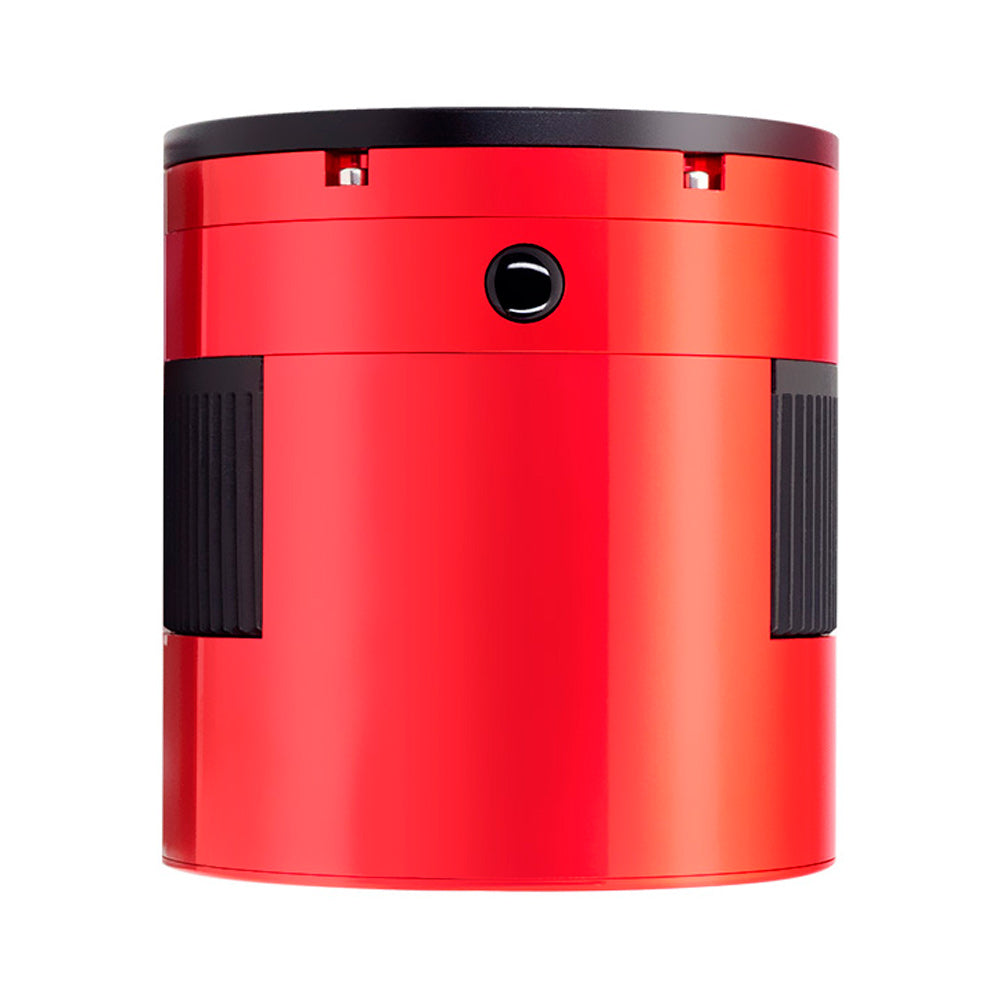

ZWO ASI6200MM PRO [MONO]

$6,599.00 AUD
SKU: ASI6200MM-P

ZWO

2 FPS

16-bit

36 x 24 mm

3.76 µm

FREE SHIPPING




The ZWO ASI6200MM PRO is a high resolution camera with a full-frame back-illuminated 16-bit Sony IMX455 sensor, featuring a QE up to 90%.

Sony’s back-illuminated CMOS technology improves sensitivity, minimizes noise, reduces power consumption and increases data download speed. In a conventional front-illumination structure, the interconnection of metal wiring and transistors are above the photosensitive silicon surface (photo diode), reducing the overall sensitivity and therefore the quantum efficiency. In back-illuminated sensors, the photosensitive surface is placed on top of the wiring so the incoming light is not obstructed, resulting in a greater quantum efficiency. Sony has developed a new and unique photo-diode structure and an on-chip lens that is optimized for back-illuminated structures, achieving a higher sensitivity and a lower random noise.

ZWO ASI 6200MM PRO [MONO]


The ASI6200MM Pro is the first ZWO camera with a 16bit ADC that can achieve a dynamic range output of 14 stops. This improves the image sharpness and contrast significantly and the color shades are smoother and more natural.

ZWO ASI 6200MM PRO [MONO]

When the gain value is 100, the HCG high gain mode is automatically activated and the readout noise is greatly reduced while the dynamic range basically remains unchanged.

ZWO ASI 6200MM PRO [MONO]

The ZWO PRO cameras incorporate a 256MB DDR3 memory buffer that improves data transfer reliability and it minimizes amp-glow caused by slow data transfer speeds. The USB 3.0 Port provides 5Gbps bandwidth and lets the camera run at 9fps at full resolution.

The USB 2.0 Hub allows to connect 2 USB controlled accessories such as a filter wheel, a guiding camera or an electronic focuser, reducing the amount of cables that run directly from your computer.

The 2 stages TEC cooling system allows a ΔT of 35°C below air temperature.

Note: All cooled ZWO cameras require an external power supply of 12V at 3-5A with a 2.1×5.5 mm connector (positive tip).

ZWO ASI 6200MM PRO [MONO]

The dew heater avoids the problem of dew condensation on the optical window of the sensor. The heater can be turned off via software.

Traditional CMOS sensors produce a weak infrared light source that is often seen in the corner of uncalibrated images as bright glow. The ASI 6200 uses the zero amp glow circuits that avert this artefact in your images.

Amp glow artefact– exposure 300 seconds

Amp glow artefact– exposure 300 seconds

ASI6200 frame with no amp glow – Exposure 300 seconds

ASI6200 frame with no amp glow – Exposure 300 seconds




Sensor

Sony IMX455 - Mono

Resolution

61.17 Megapixels 9576 x 6388

Pixel size

3.76 µm

Sensor size

24 mm x 36 mm (43.2 mm diagonal)

Quantum efficiency

91% peak

Exposure range

32μs-2000s

Read noise

1.2e  - 3.5e

Full well capacity

51,400 e-

Bit rate

16 bit

Speed

2 fps

Shutter type

Rolling shutter

Cooling

ΔT of 35°C

Memory buffer

256Mb DDR3

ROI

Supported

Compatibility

Mac, Windows, Linux

Protecting window

AR coated

Ports

USB 3.0 / USB 2.0

Backfocus

17.5 mm

Connections

M54 x 0.75

Dimensions

Ø 90 mm; ↨ 97 mm

Weight

700 g

Power supply

9-15V 3-5 A  (2.1×5.5 mm connector)

SKU

ASI6200MM-P



ZWO ASIAIR


The best solution to achieve a back focus of 55mm ZWO ASIAIR




Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Dale Smalley
Sooo sensitive, sooo many pixels

Whether it is used with narrowband SHO filters or with just a Luminance source with the 6200MC OSC this camera delivers every time. A full frame sensor produces 120Mb sub frames that allow sooo much freedom with framing and cropping. The cooled sensor produces soo little noise, I really only need dark frames with upwards of 300 sec subframes. It's not cheap but worth going without food a for a week or 2 - a great full frame mono astro camera.
