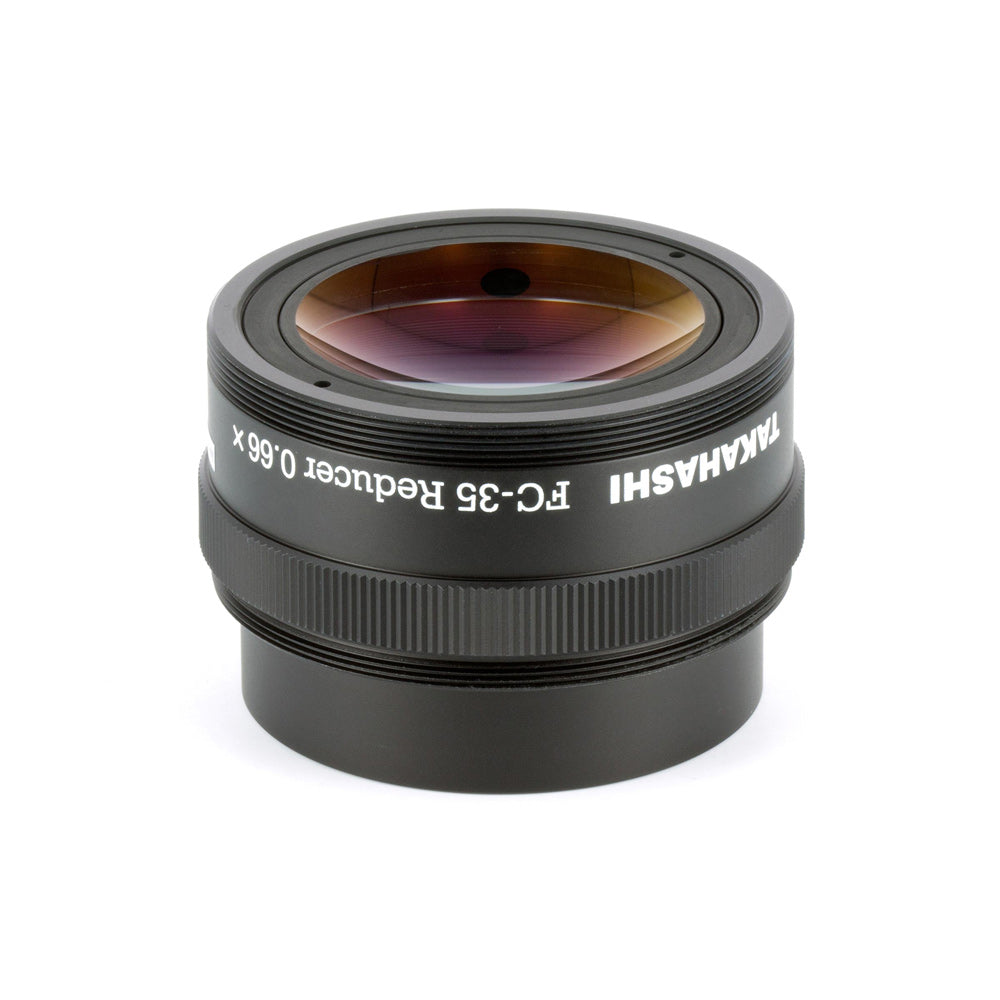

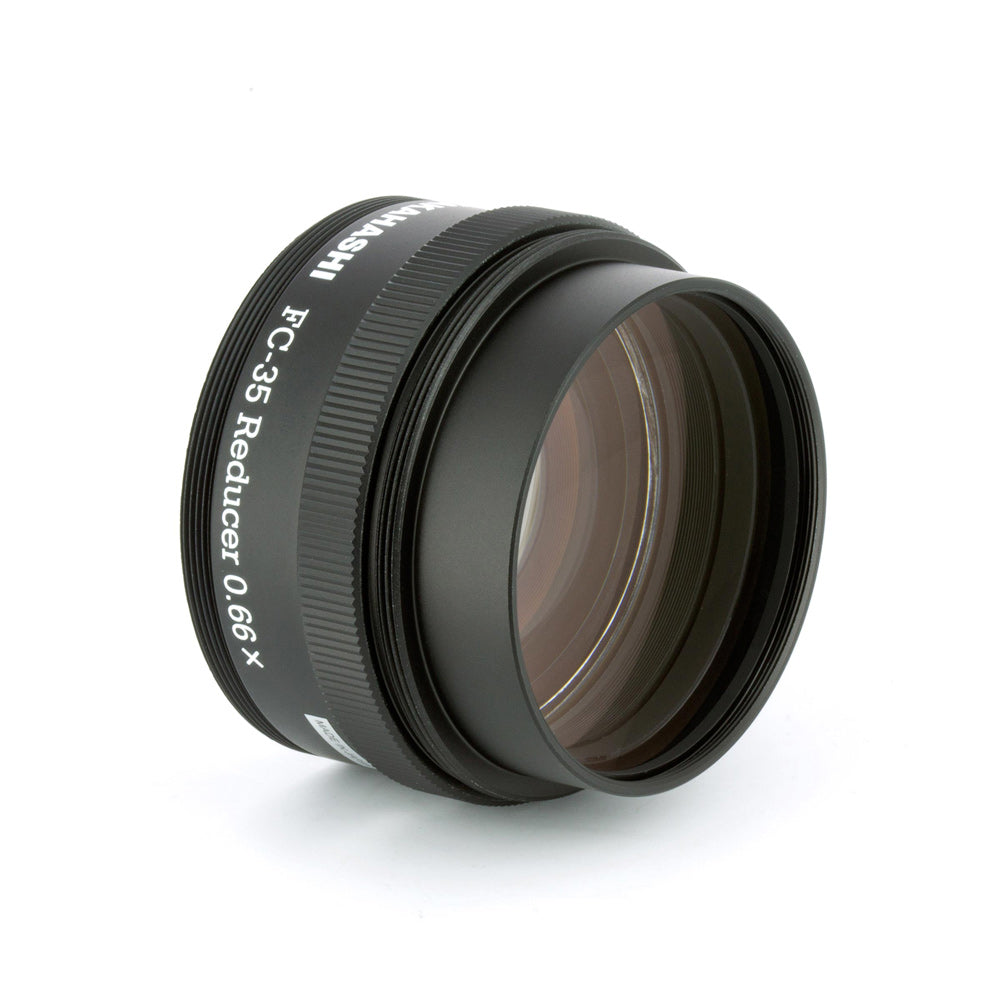

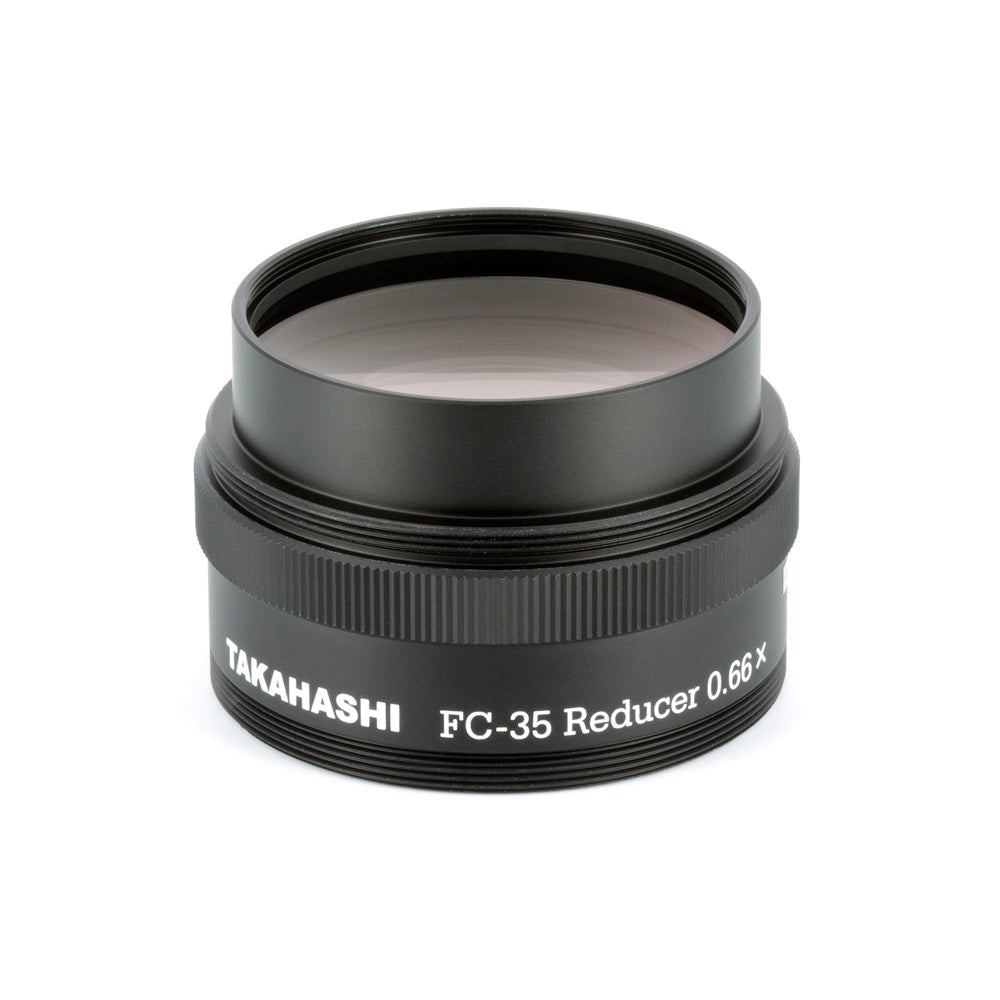

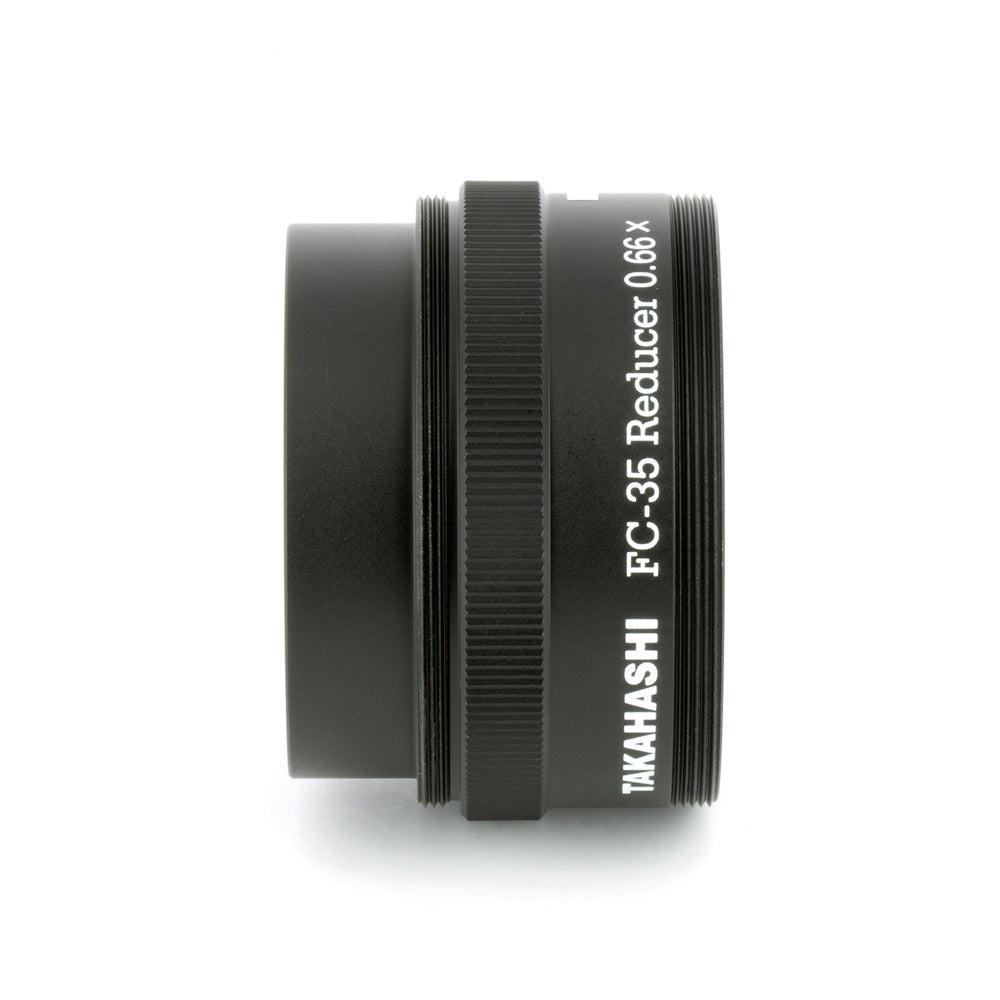

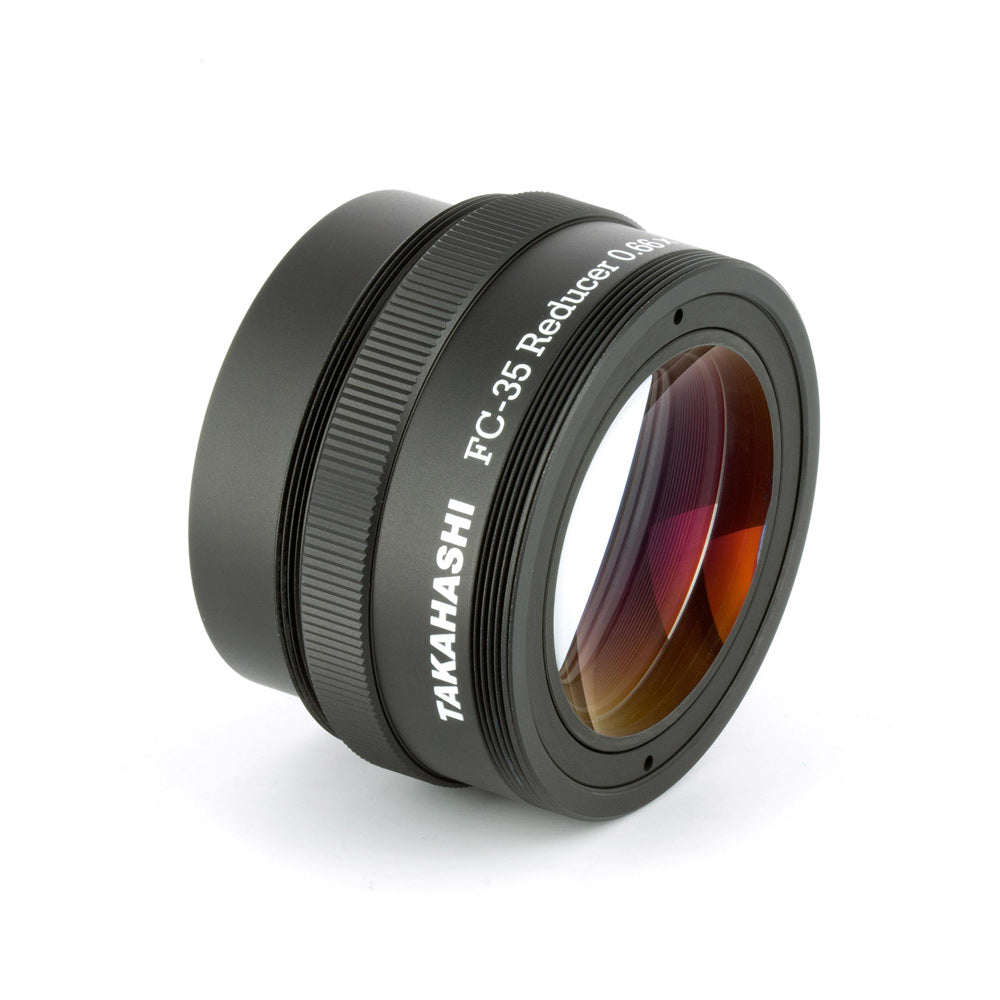

TAKAHASHI FC-35 REDUCER 0.66x

$1,88900AUD
SKU: TK-TKA19580



The Takahashi FC-35 Reducer is a 0.66x focal reducer for FC-100DF/DZ fluorite doublet refractors. The FC-35 Reducer has an image circle of 44mm, making it suitable for use with full-frame sensors. The 0.66x reduction factor transforms the FC-100DZ into a 530mm f/5.3 widefield astrograph.





Spot diagram of Takahashi FC-100DZ with FC-35RD 0.66x focal reducer.



In order to use the FC-35 Reducer with the FC-100DZ, you will need the following adapters (sold separately):

  • CAA (TSA-102) TKA23200 - M72 x 1 Male to M72 x 1 Female 35mm
  • CA Ring 102 TKA23202 - M72 x 1 Female to M54 x 0.75 Female 12.5mm
Specifications



Reduction factor 0.66 x
Backfocus 68.8 mm
Image circle 44 mm
Connection telescope side
 M72 x 1 male
Connection camera side
 M72 x 1 male
Total length
 TBD
Weight
 TBD
SKU
 TKA19580
