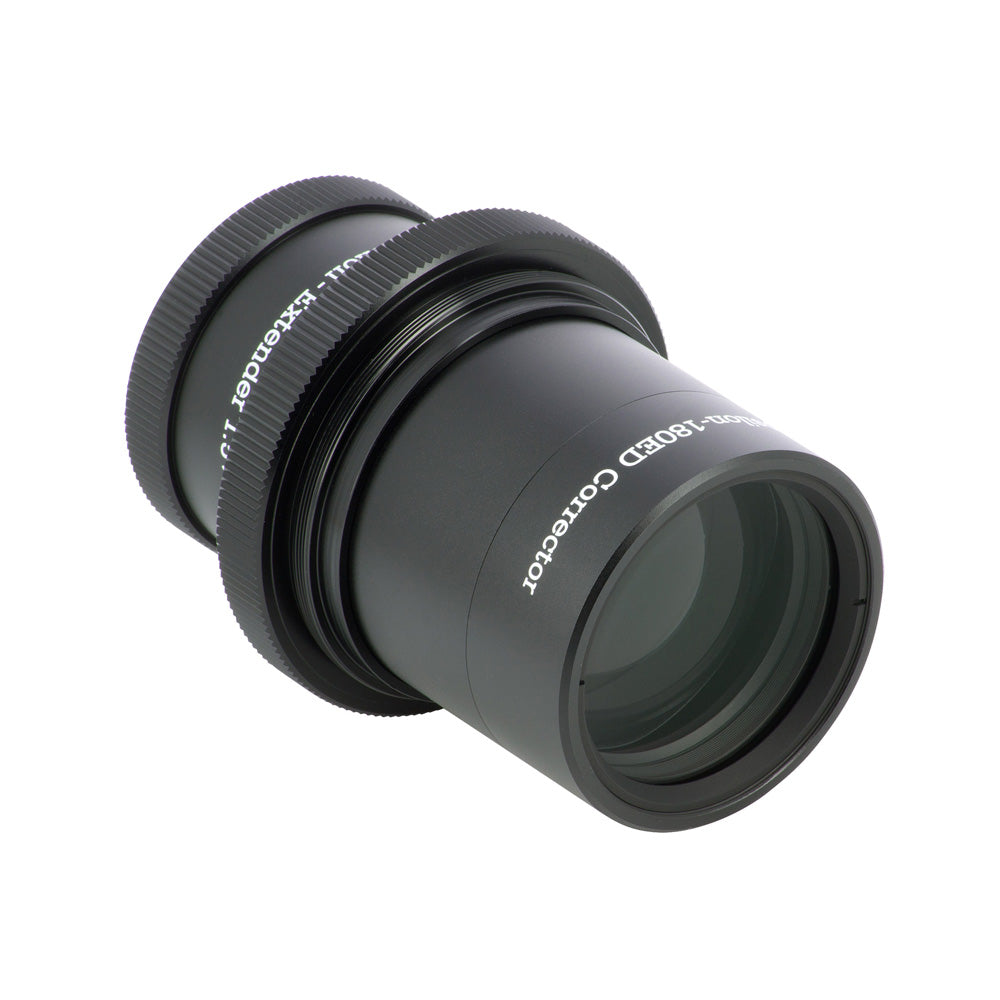

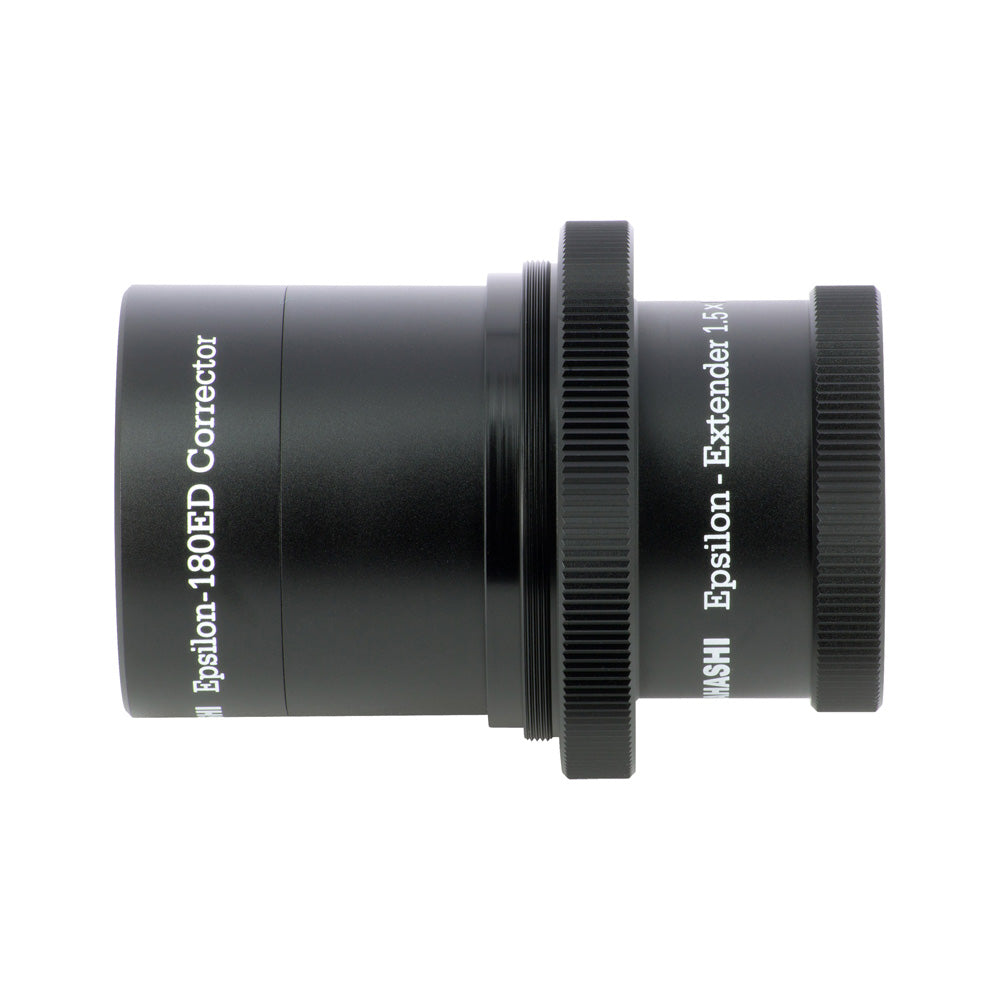

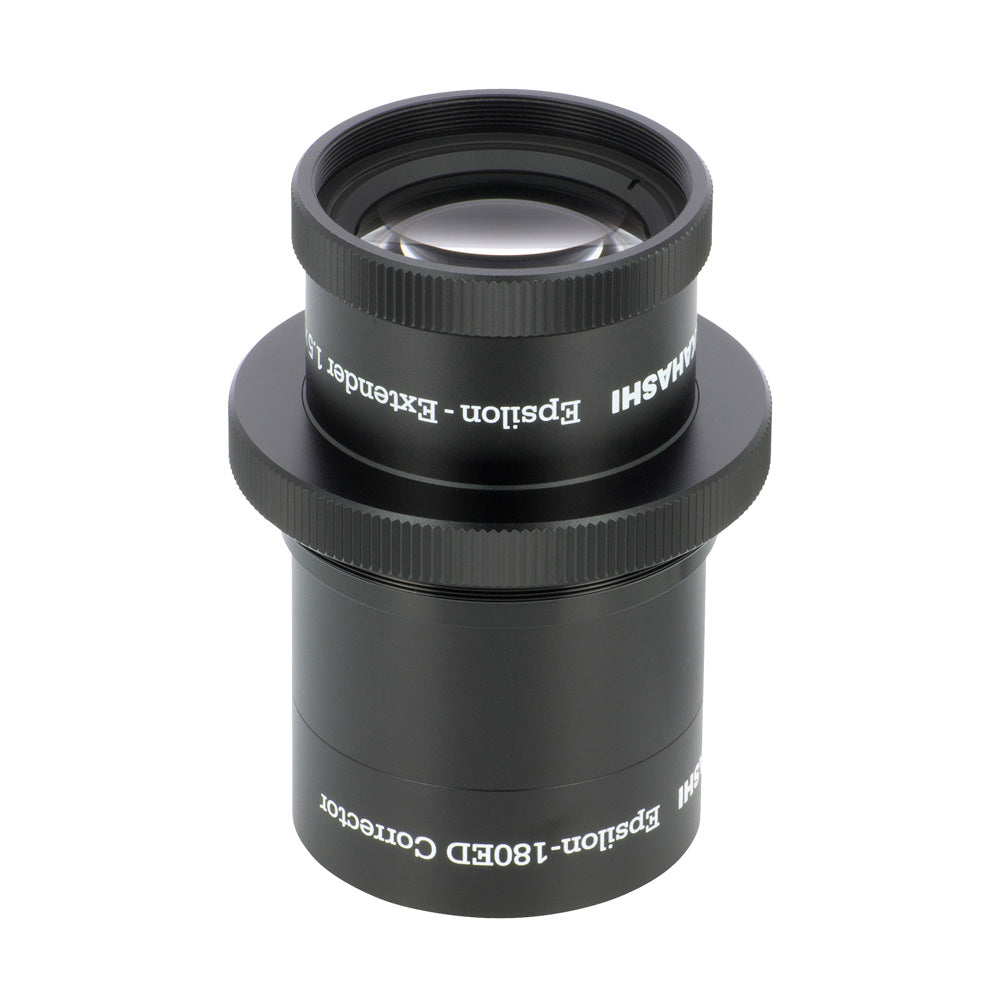

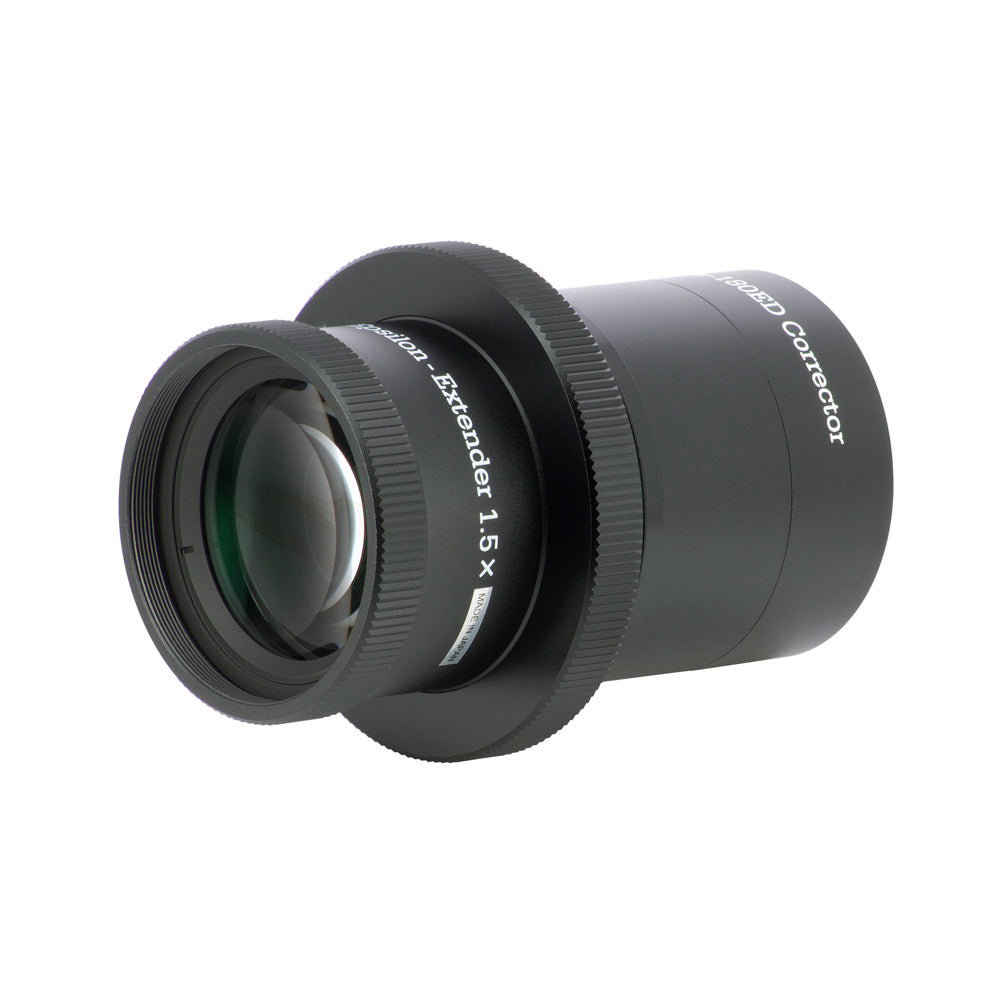

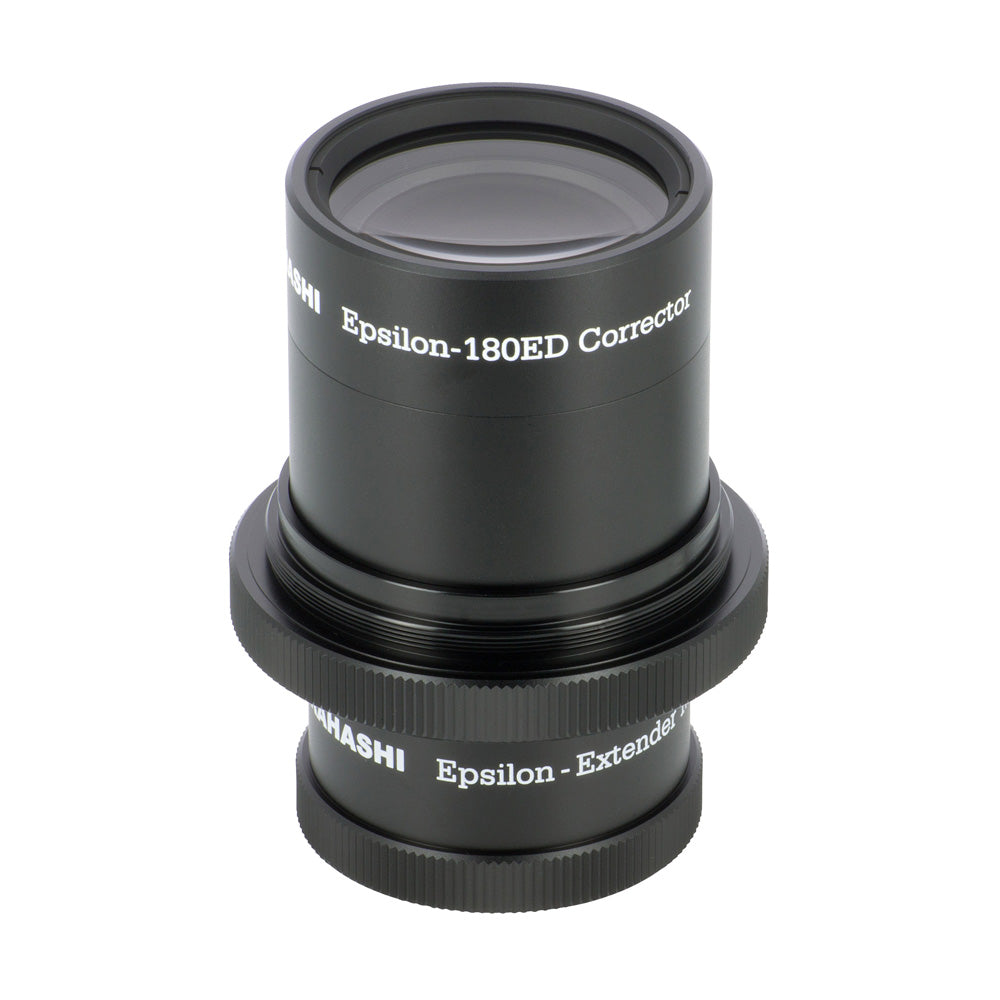

TAKAHASHI EXTENDER 1.5x FOR EPSILON 180ED

$2,19900AUD
SKU: TK-TKA68595



The Takahashi 1.5x Extender for the Epsilon 180ED transforms the Epsilon 180ED into a longer focal length 770mm f/4.3 astrograph. The optical design features 7 lenses in 5 groups, fully correcting the coma across a 44mm image circle, large enough for full-frame sensors.

This extender delivers a centre diffraction spot size of 2 microns and 5 microns at the edge of the field. The extender can also be used visually with additional adapters (see the system chart of the Epsilon 180ED).

Note: this extender is designed specifically for the optical formula of the Epsilon 180ED, so cannot be used with any other telescope model.



Spot diagram of Takahashi Epsilon 180ED with 1.5x focal extender.



    Specifications



    Optical design 7 lenses in 5 groups
    Reduction factor 1.5 x
    Backfocus 56.2 mm
    Image circle 44 mm
    Connection telescope side
    		 M68 x 0.75 male
    Connection camera side
    		 M54 x 0.75 female
    Total length
    		 105.5 mm
    Mechanical diameter 78.5 mm
    Weight
    		 550 g
    SKU
    		 TK-TKA68595
