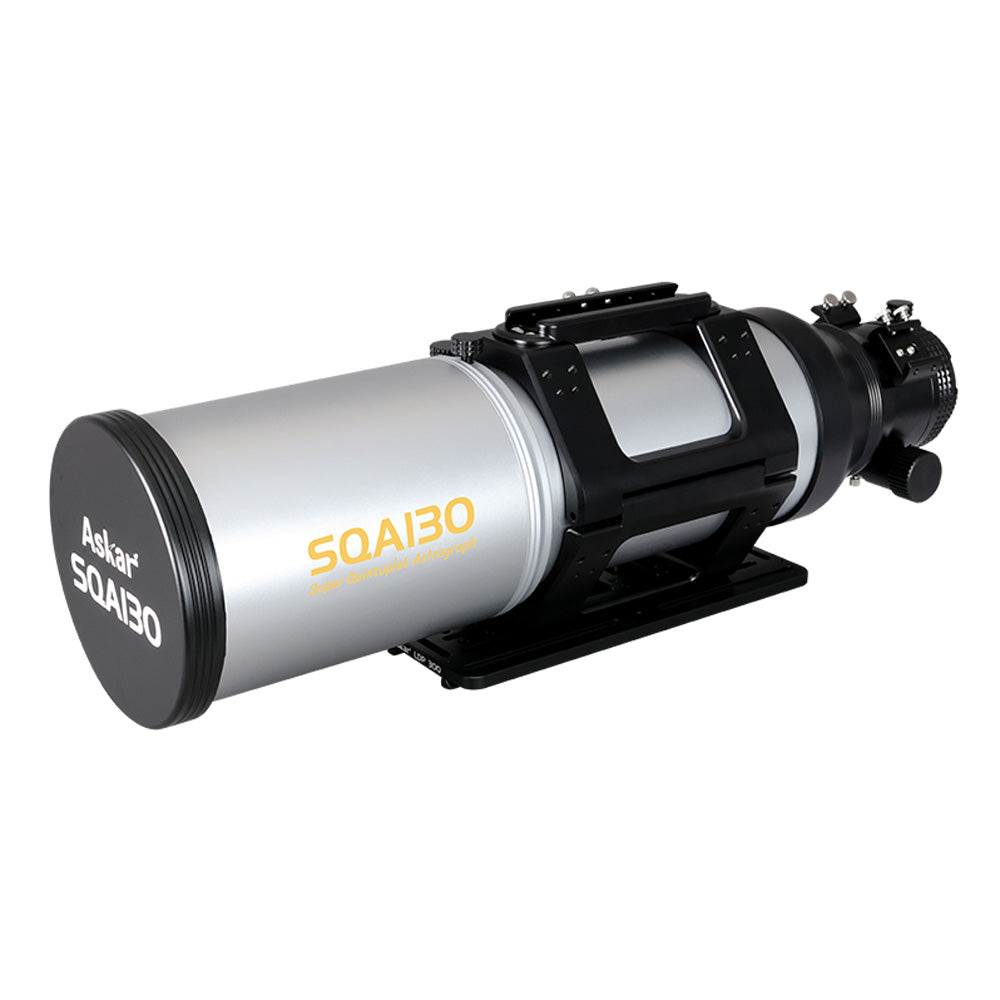

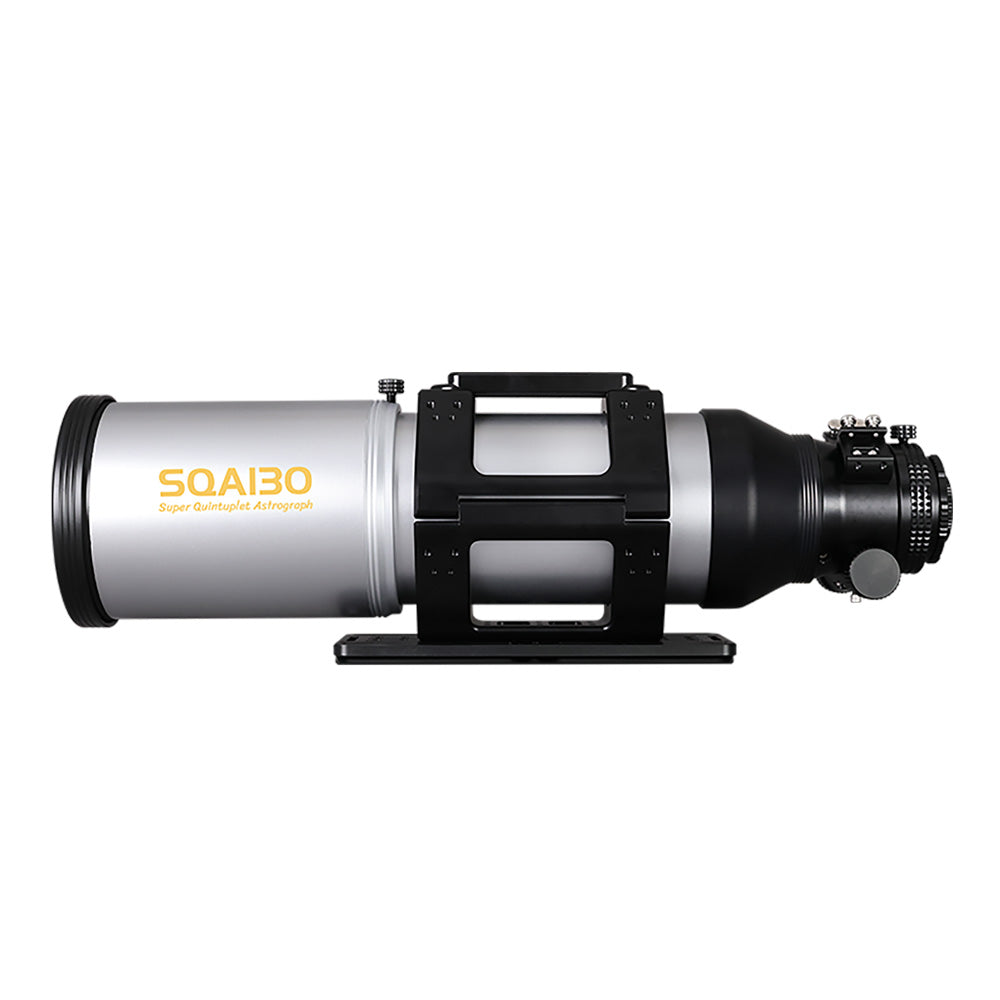

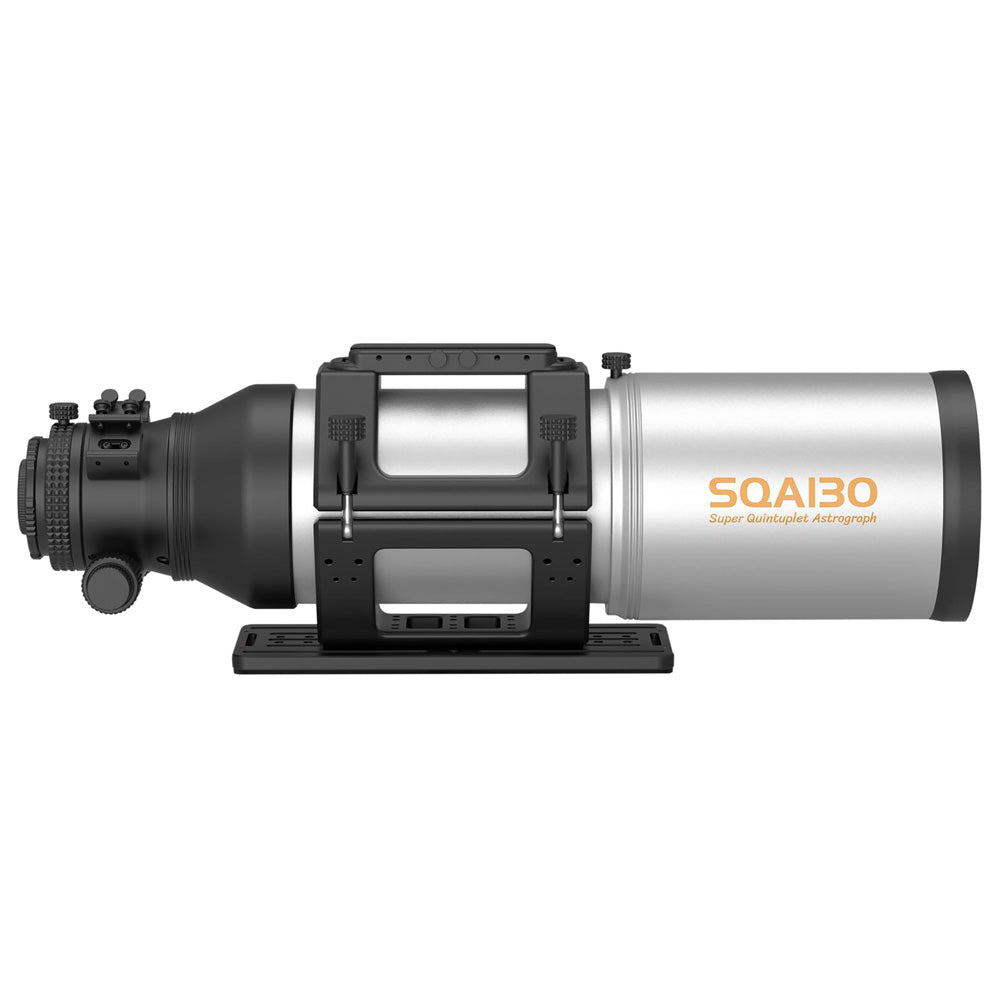

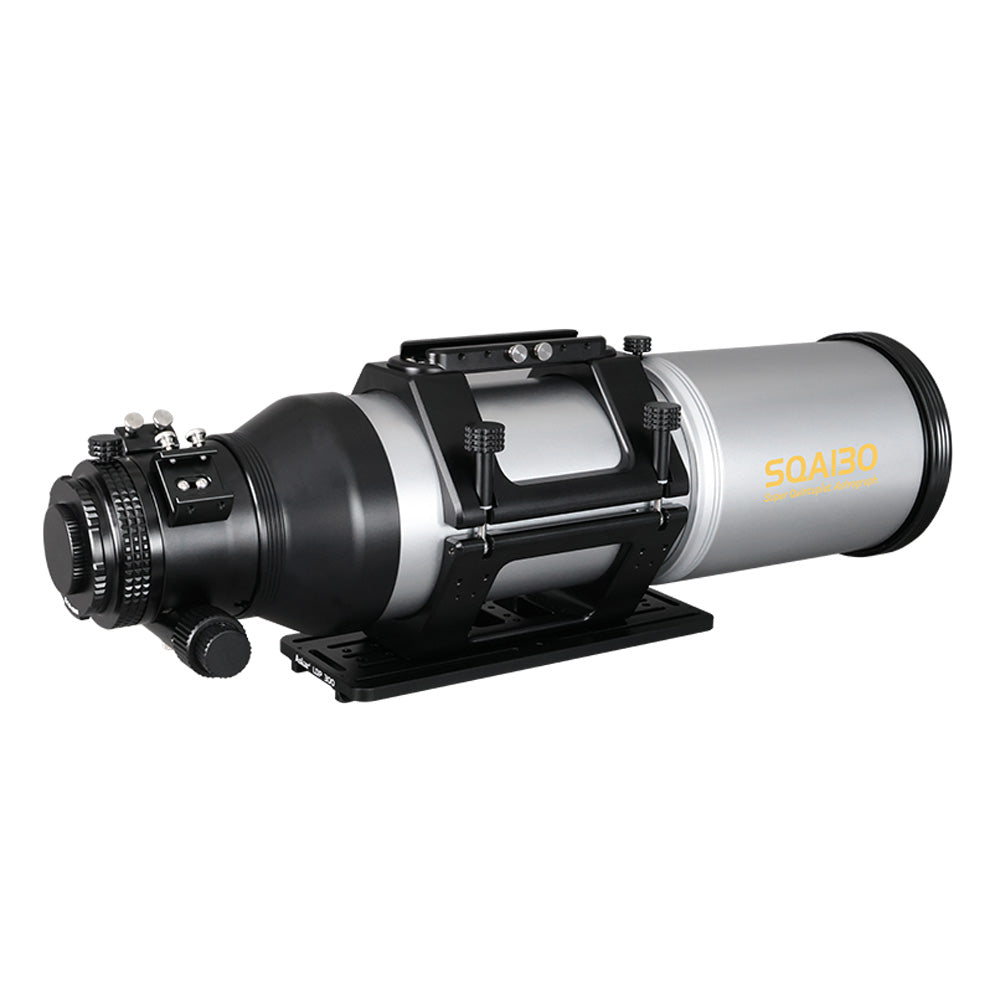

ASKAR SQA130 f/4.8 APO QUINTUPLET

Name: ASKAR SQA130 f/4.8 APO QUINTUPLET
Brand: Testar Australia
SKU: AS-SQA106.7
Price: 7899.00 AUD
Availability: OutOfStock

$7,899^00AUD $8,499⁰⁰

SKU: AS-SQA106.7

ASKAR SQA130 f/4.8 APO QUINTUPLET is not in stock but it can be backordered.

The Askar SQA130 is an apochromatic quintuplet flat-field astrograph that offers high performance thanks to its air-spaced SD lens design. With a 55mm image circle support, a central star point RMS radius of less than 2 µm, and a full-field illumination of over 95% at 44 mm image circle, it ensures superb image quality. MTF data reveals excellent performance, with a super-fine star point of less than 2.4 µm at 55 mm.

Thanks to its Petzval design, you don't need to worry about reaching a precise backfocus distance. As long as you're in focus, you're good to go. Recommended sensor distance to the rear adapters is between 46 - 78mm.

The SQA106 comes with M68, M54 and M48 camera-side adapters for easy connection to typical imaging trains. A durable water resistant resin case with EVA foam interior keeps the telescope safe and has plenty of space for additional accessories.

Specifications

Optical design	Apochromatic air-spaced quintuplet with SD & ED glass
Objective diameter	130 mm
Focal length	624 mm
Graded aperture	f/4.8
Focusing mode	Manual focus
Filter diameter	M67
Mount attachment	200 mm Vixen-style dovetail with 1/4"-20 & 3/8" screw holes
Focuser	Dual-speed helical focus rings
Tube weight	1.84 kg (2.18 kg with dovetail and rings)
Tube length	650 mm (764 mm with dew shield)
Tube diameter	94 mm including quick release brackets
Dew shield diameter	180 mm
Connections	M59 x 0.75, M48 x 0.75 male
Backfocus range	50 - 60 mm from M48 thread
Image circle	55 mm
SKU	AS-SQA130
