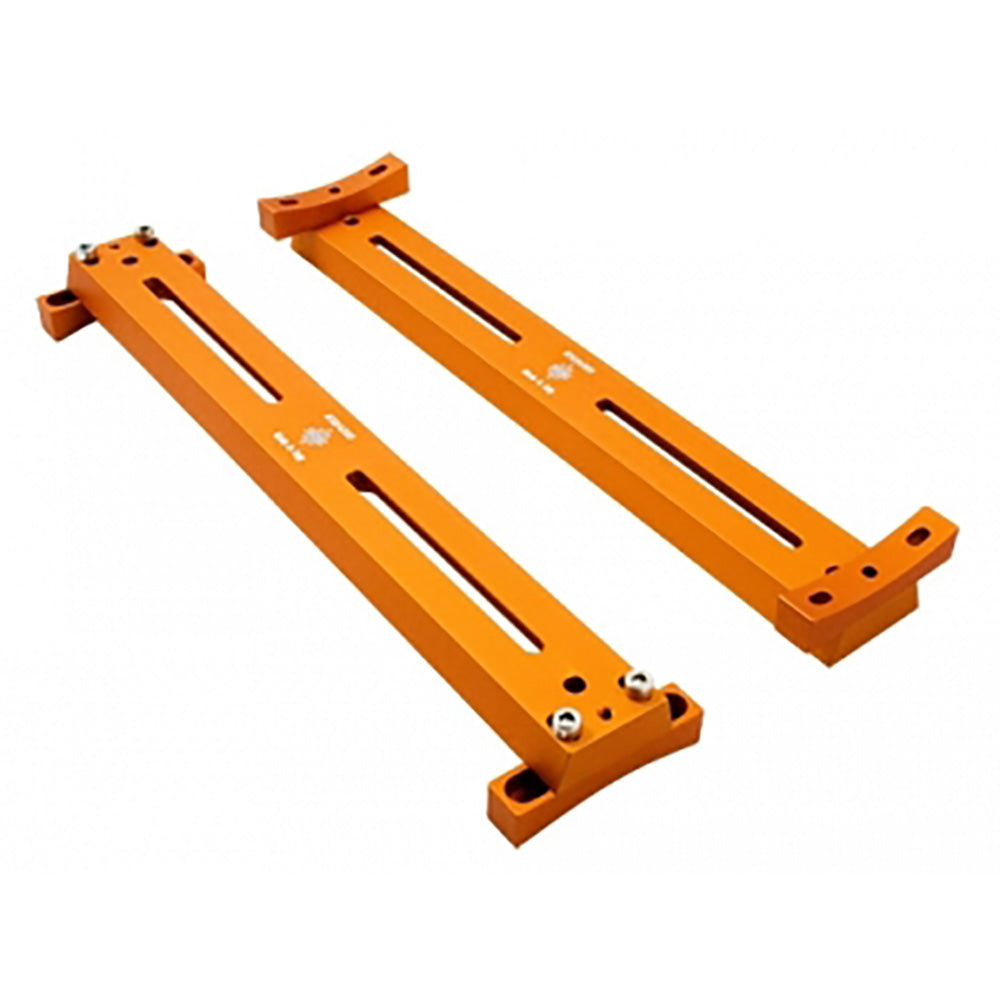

GEOPTIK VIXEN STYLE DOVETAIL BAR FOR CELESTRON C8

$169.00 AUD
SKU: 30A060C

Geoptik

Colour: Orange



Vixen style EQ dovetail plate with radius block for Celestron 8" Schmidt-Cassegrain tubes.

CNC machined aluminium and fully anodized. Made in Italy.





Length 340 mm
Width max (plate)
 43.5 mm
Width of radius block
 75 mm
Thickness
 15 + 15 mm

Chemical Composition Aluminium Anticorodal AW-6082 - T6

Si Fe Cu Mn Mg Cr Ni Zn Ti Pb Bi

Min

 0.46%

0.134%

 0.010% 0.406% 0.480% 0.020% 0.000% 0.020% 0.001% 0.000% 0.000%

Max

 1.34%

0.525%

 0.101% 1.000% 1.250% 0.250% 0.000% 0.200% 0.020% 0.011% 0.000%
GEOPTIK VIXEN STYLE DOVETAIL BAR FOR CELESTRON C8.
