BAADER M68 TILTER

$409.00AUD
SKU: BA2458170

Baader Planetarium

  • Optical thickness: 9.75 - 10.50 mm



The Baader M68 Tilter is allows for extremely precise tuning of the image plane with between 0 - 1° of tilt adjustment. Unlike most tilters available, the Baader tilters have three sets of screws on the outer side of the unit, so you do not have to fiddle with shortened allen keys in cramped configurations.

The M68 Tilter is low profile at only 9.75 - 10.50mm optical length, so can be used with fast optics which do not have much backfocus space available. It has male M68 x 1 threads on one end and female M68 x 1 threads on the other.



Click here for instructions.


The Baader M68 Tilter is designed so that if removed from the optical train, the adjustment is retained. This means you can swap the unit and camera train onto different telescopes with ease. The large aperture and heavy weight capacity of 5kg make this perfect for full-frame imaging setups.

All the components that are used in the M68 & UFC Tilters are produced in-house at Baader's own machine shop in Mammendorf, Germany. This is in order to reach the necessary highest level of precision, to be able to adjust any corner of the chip in a backward/forward direction with ZERO lateral play during the adjustment procedure.

Specifications



Connection telescope side
M68 x 1
Connection camera side
M68 x 1
Optical length 9.75 - 10.50 mm
Outer diameter 92 mm
Weight 83 g
SKU BA2458170

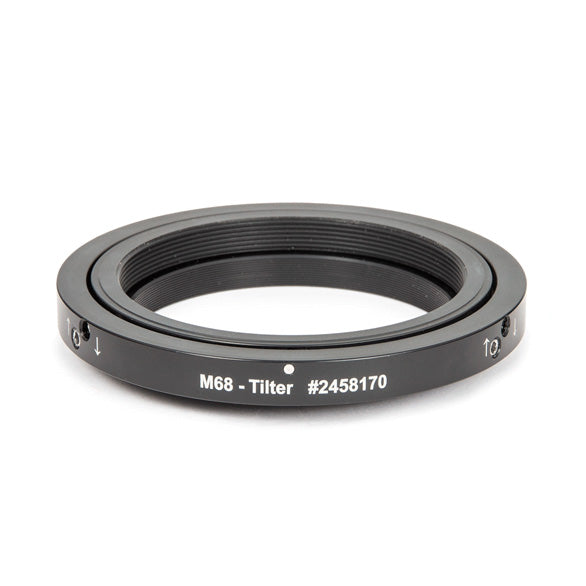

BAADER M68 TILTER.

BAADER M68 TILTER

$409.00AUD

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Optical thickness: 9.75 - 10.50 mm

Threads

M68 x 1 Male, M68 x 1 Female
