TESTAR 30mm f/4 MINI GUIDE SCOPE

$139.00 AUD
SKU: TE-GUIDE30F4

Testar

Doublet

120 mm

f/4

30 mm

0.34 kg

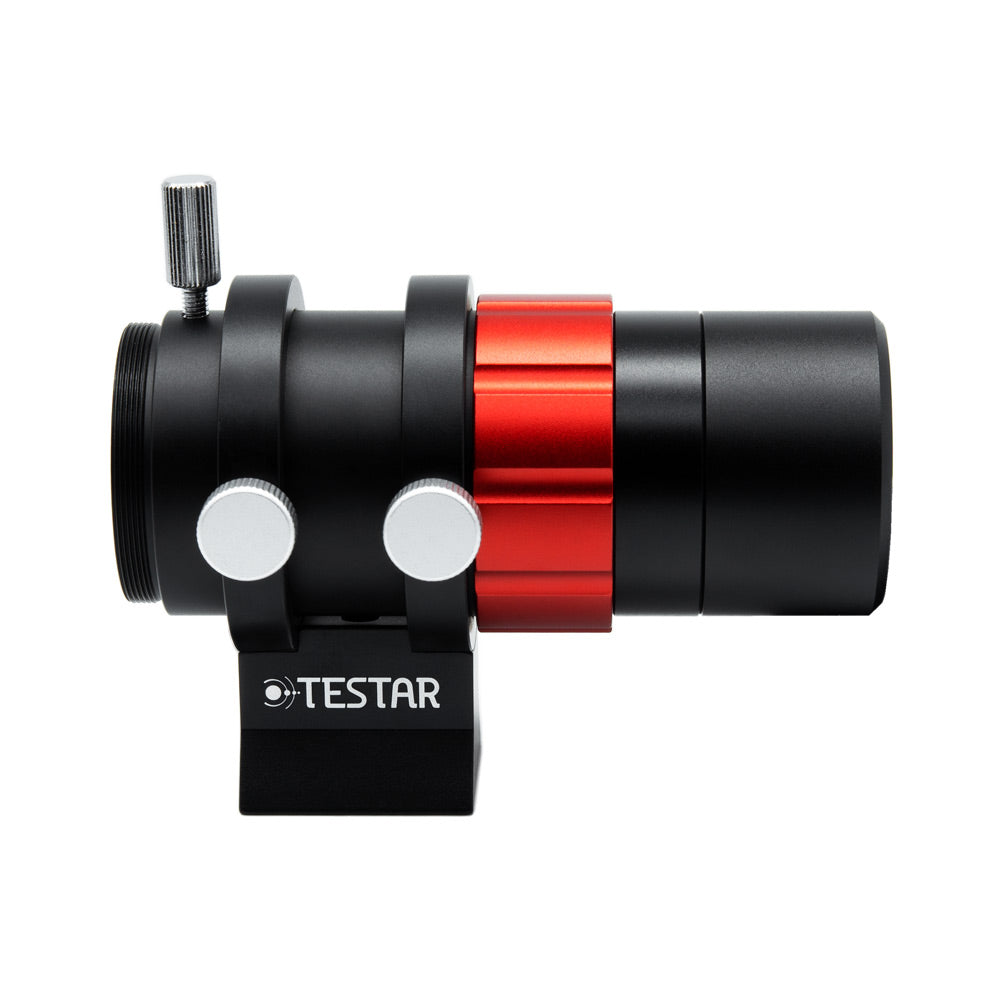

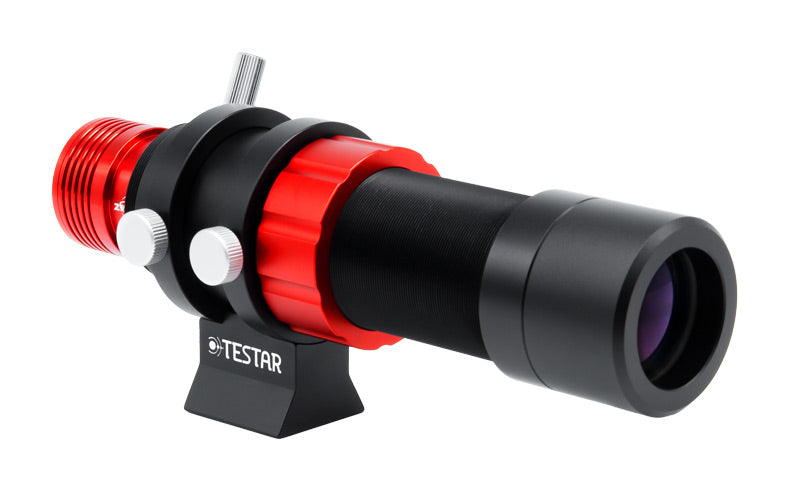

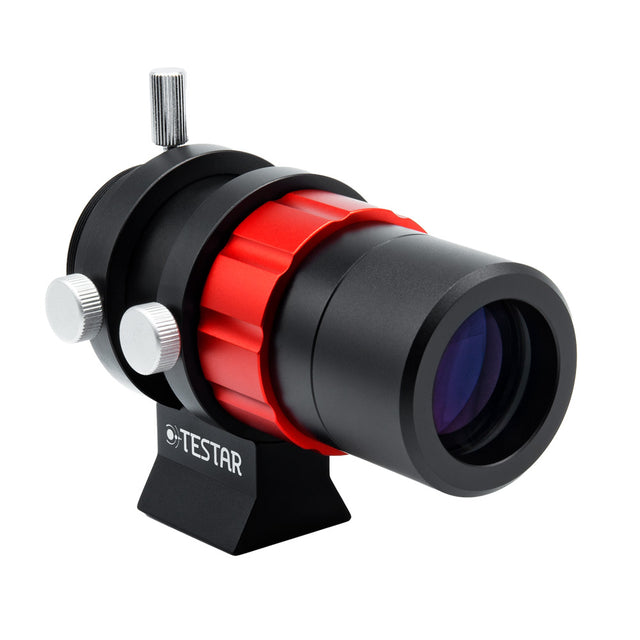

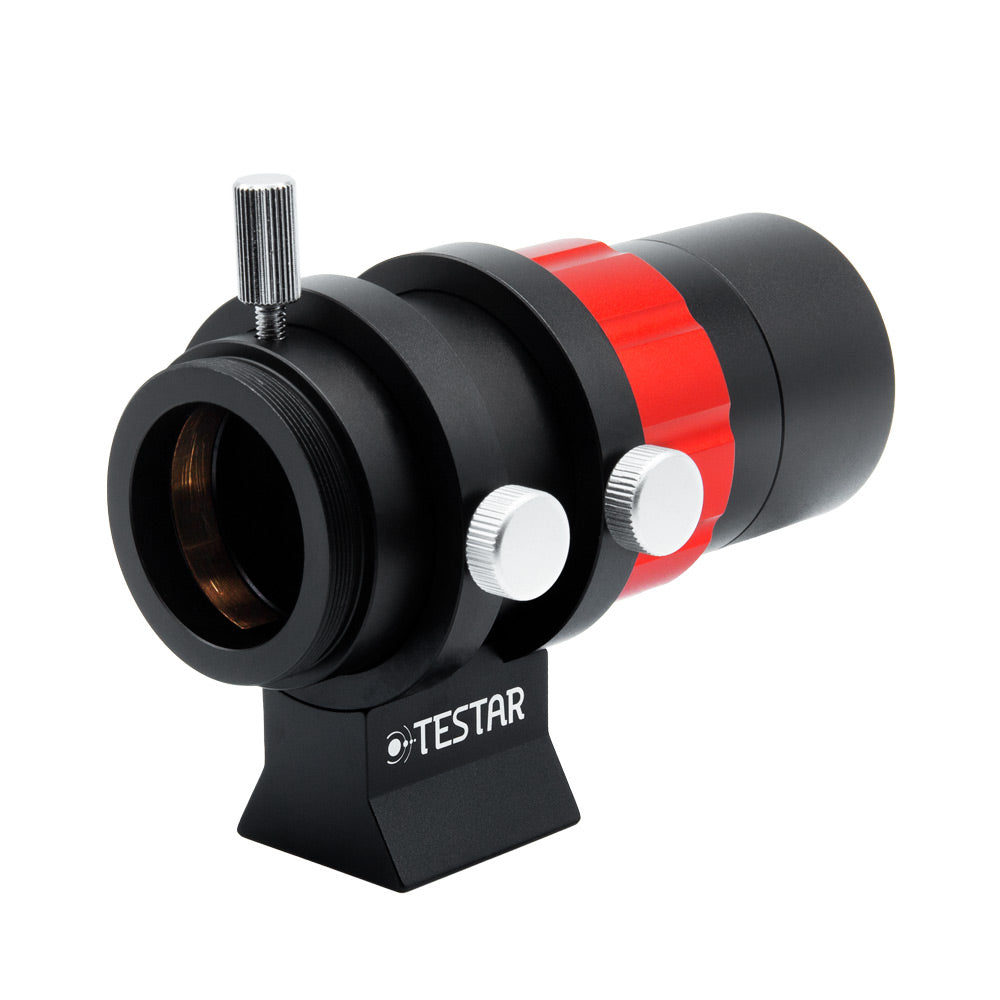

The Testar 30mm Mini Guide Scope has a focal length of 120mm and a focal ratio of f/4. The objective is a fully multi-coated achromatic doublet for a greater optical precision.

The mini dovetail bar can be firmly mounted on any standard finder scope bracket so you do not require any extra piggy back dovetail bar on your telescope. The base of the finder scope includes a 1/4" female thread for a wider compatibility among telescopes.

The focus is achieved by rotating the objective lens that can be locked in position using the red ring.

This scope is compatible with all guiding cameras.

Testar 30mm F/4 Mini Guide Scope with QHY 5L-II camera

Testar 30mm F/4 Mini Guide Scope with QHY 5L-II camera - back focus from rear of front cell to focus ring approx. 16.4 mm.

Testar 30mm F/4 Mini Guide Scope with ZWO ASI120MM camera

Testar 30mm F/4 Mini Guide Scope with ZWO ASI120MM camera - back focus from rear of front cell to focus ring approx. 13.2 mm.

Testar 30mm F/4 Mini Guide Scope with ZWO ASI120MM Mini camera

Testar 30mm F/4 Mini Guide Scope with ZWO ASI120MM Mini camera - back focus from rear of front cell to focus ring approx. 48.6 mm.




Objective lens diameter 30 mm

Focal length

120 mm

Camera/eyepiece connection

1.25" and male M42

Weight 333 gr
Max tube length 160 mm (focuser fully extended)
Focus travel 0~47.5 mm
Focuser type Rotative objective lens
Dovetail specifications 31.8 mm x 35 mm - fits finder scope brackets
Dovetail threads

1 x 1/4"





  • Guide scope 30mm
  • Tube rings
  • Objective lens cap
  • Eyepiece cap
  • Mini dovetail bar for finder scope brackets
  • X 2 nylon tipped screws for locking the scope in the rings
  • Thumb screw to secure the camera in the 1.25" barrel
  • Allen key
