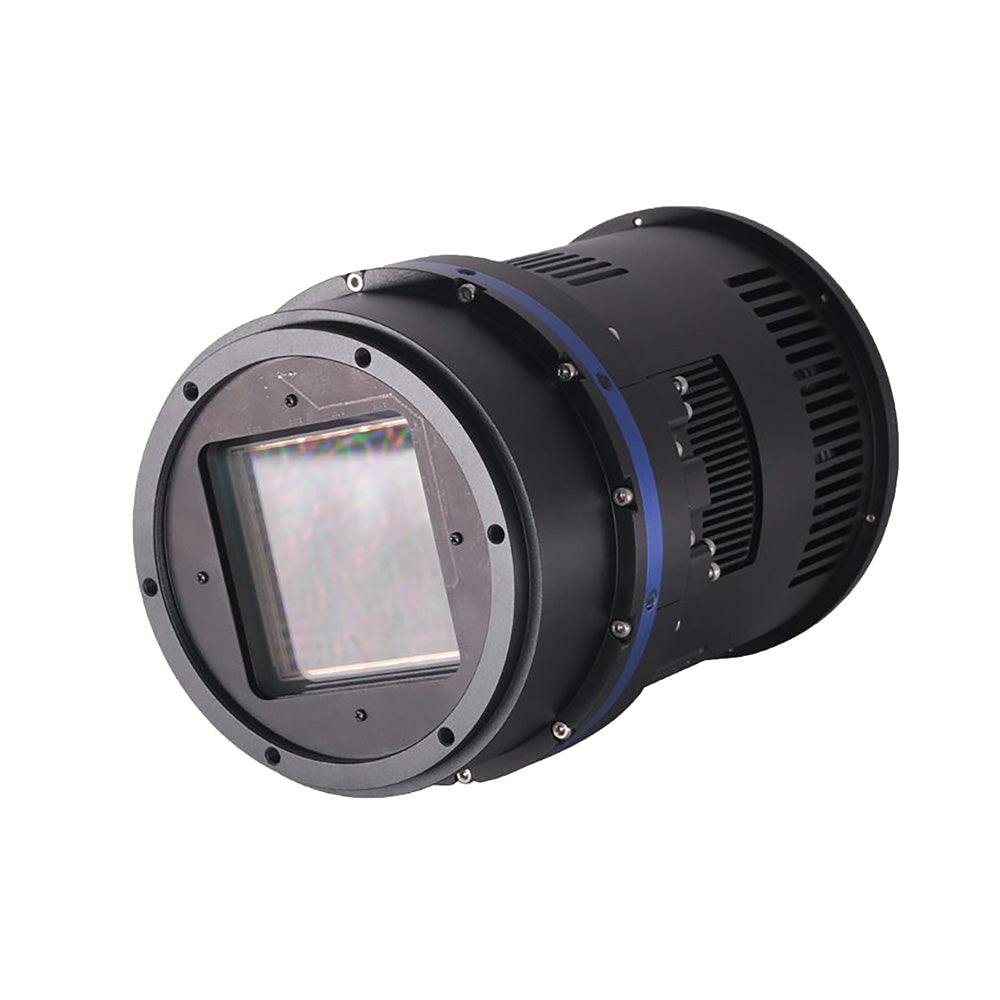

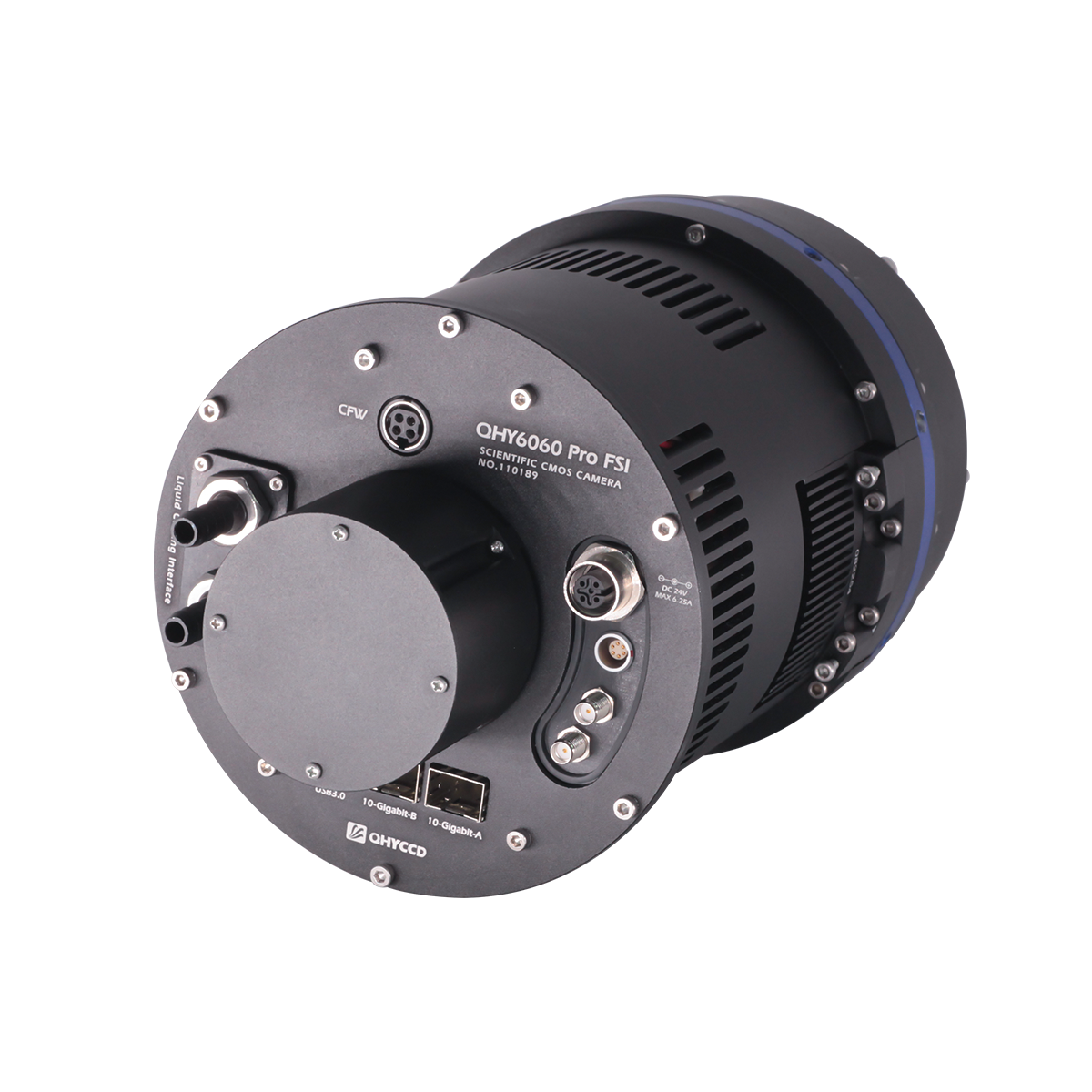

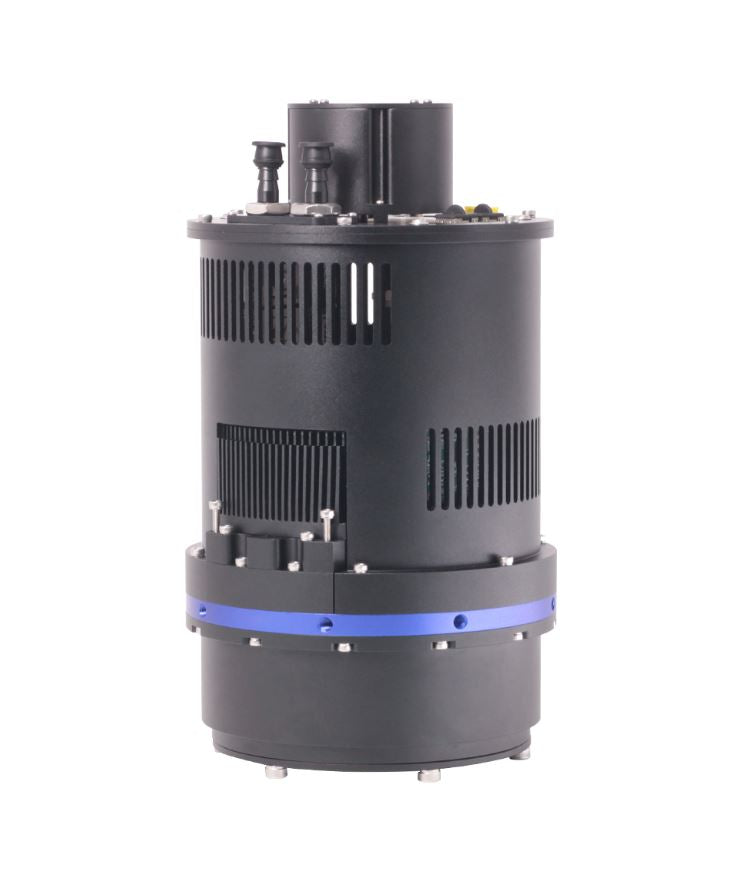

QHY6060 PRO [MONOCHROME]

$80,000^00AUD

SKU: QHY6060-110115-1

Version

QHY6060-PRO [FSI 1] QHY6060-PRO [FSI 2] QHY6060-PRO [BSI 1] QHY6060-PRO [BSI 2]

Product variants

QHY6060 PRO [MONOCHROME] - QHY6060-PRO [FSI 1] is not in stock but it can be backordered.

The QHY6060 Pro Series is a high-performance scientific CMOS camera designed for advanced imaging applications in astronomy, life sciences, materials inspection, and industrial automation. Available in four variants—FSI Class 1, FSI Class 2, BSI Class 1, and BSI Class 2—this camera delivers outstanding flexibility and image quality for professionals and research institutions alike.

At the heart of the QHY6060 is a 37.6 Megapixel CMOS sensor (6134 x 6134 pixels) with a pixel size of 10 μm. This large-format sensor enables ultra-wide field imaging, making it ideal for deep-sky astrophotography, wide-field microscopy, and high-precision inspection systems.

Curves

The QHY6060 features a robust dual-stage thermoelectric cooling system capable of reaching -25 °C below ambient temperature, which drastically reduces dark current and thermal noise. This makes it suitable for long exposure imaging and high-dynamic range requirements. Optional liquid cooling configuration is available, allowing a much larger cooling delta of ~45 °C below ambient - contact us for more information.

The camera achieves 4 FPS at full resolution over USB 3.0 and 5.6FPS with 2 x 10GB fibre with optional PCIE kit, with ROI (Region of Interest) mode available for faster frame rates.

Specification

Sensor	Gpixel Gsense6060 FSI / BSI
Resolution	6134 × 6134 (37.7 MP)
Pixel size	10 μm
Sensor size	61.34 mm × 61.34 mm
Quantum efficiency	95% BSI sensor
Exposure range	20 μs – 300 s
Read noise	4.7 e⁻ (at max analog gain in high gain channel)
Dark current	0.2 e⁻/pixel/sec @ –15 °C FSI
Full well capacity	>80 ke⁻ BSI - ~40 ke⁻ FSI
Bit rate	14-bit
Frame rate	USB3.0: 5.6 FPS @ 8bit - 4.0 FPS @ 16bit, 2 x 10Gb Fibre: 5.6 FPS @ 8- and 16-bit
Shutter type	Electronic Rolling shutter
Cooling	Dual-stage TEC, –25 °C - Liquid Cooling System also available
Memory buffer	2GB DDR3
ROI	Supported
Optical window	AR+AR High Quality Multi-Layer Anti-Reflection Coating
Ports	USB 3.0, 2×10 GbE, Trig in/out
Back focus	TBC
Connections	12V DC, USB 3.0, 2×10 GbE
Dimensions	125 mm × 125 mm × 54 mm
Weight	TBC

ROI Frame Rates

2048 lines (USB3.0)	16.8 FPS @ 8bit - 12.1 FPS @ 16bit
1080 lines (USB3.0)	30.6 FPS @ 8bit - 23.1 FPS @ 16bit
768 lines (USB3.0)	35.2 FPS @ 8bit - 32.1 FPS @ 16bit
480 lines (USB3.0)	66.3 FPS @ 8bit - 49.1 FPS @ 16bit
2048 lines (PCIE Mode)	16.8 FPS @ 8bit - 16.8 FPS @ 16bit
1080 lines (PCIE Mode)	30.6 FPS @ 8bit - 30.6 FPS @ 16bit
768 lines (PCIE Mode)	35.2 FPS @ 8bit - 35.2 FPS @ 16bit
480 lines (PCIE Mode)	66.3 FPS @ 8bit - 66.3 FPS @ 16bit
