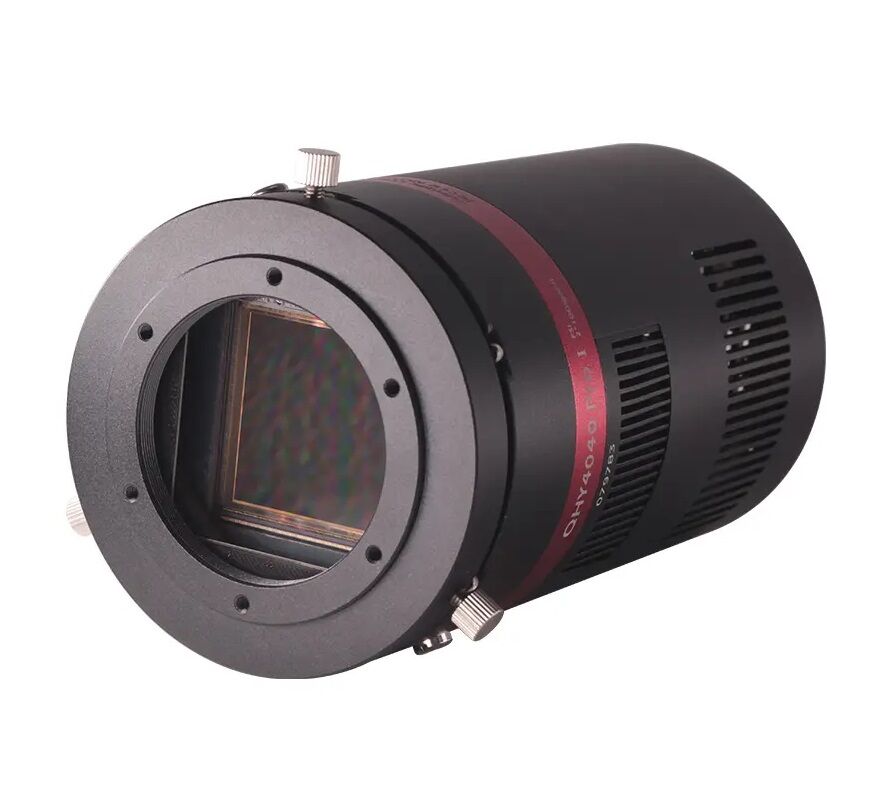

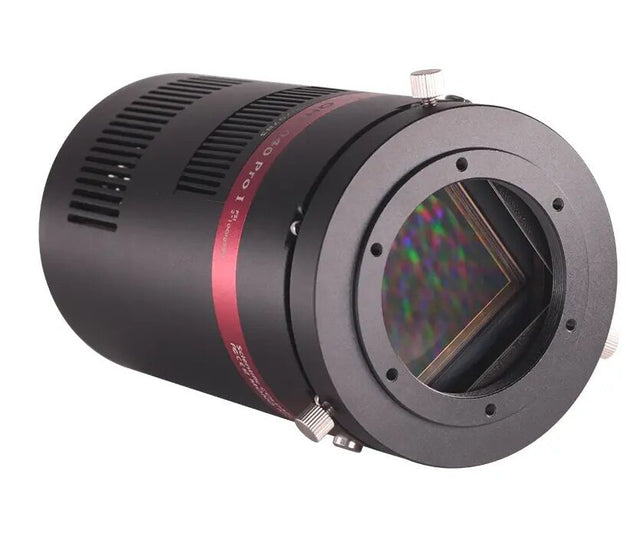

QHY4040 PRO [MONOCHROME]

$24,50000AUD
SKU: QHY4040-100110
Model

QHY4040 PRO [MONOCHROME] - STANDARD is not in stock but it can be backordered.

Contact us



The QHY4040 Series is a line of high-performance scientific CMOS cameras designed for advanced imaging applications in astronomy, life sciences, industrial inspection, and scientific research. Featuring a large 36.9mm × 36.9mm sensor with 4096 × 4096 resolution, this series offers three specialized variants to meet distinct imaging needs:

  • QHY4040 Standard: Equipped with air cooling and a front-illuminated (FSI) sensor, ideal for general-purpose imaging.

  • QHY4040 Pro I FSI: Incorporates thermoelectric cooling and a sealed chamber with a front-illuminated sensor for enhanced noise reduction and thermal stability.

  • QHY4040 Pro I BSI: The back-illuminated version of the Pro I model, offering significantly higher quantum efficiency and sensitivity—perfect for low-light or UV imaging conditions.

All models support dual-channel readout, 12-bit or 16-bit ADC, fast frame rates, onboard DDR3 buffer, and flexible ROI settings for custom imaging scenarios. The QHY4040 is especially suited for applications requiring large field of view, low read noise, and high dynamic range.

Whether your focus is astrophotography, biomedical imaging, or high-end industrial inspection, the QHY4040 Series provides the versatility, precision, and performance needed to achieve outstanding results.

QHY4040 Pro supports both live video mode and single-frame mode. In single-frame mode the noise is the same with the 8FPS @ 16BIT mode in Live Video Mode which supports five different CMOS clocks. The camera reaches the maximum frame rate from 8FPS to 20FPS.



Curves QHY4040

QHY4040 Graphic 1

QHY4040 Graphic 2

QHY4040 Graphic 3



Curves 4040 PRO1 (FSI)

QHY4040 Graphic 4

QHY4040 Graphic 6

QHY4040 Graphic 7

QHY4040 Graphic 8

Curves 4040 PRO1 (BSI)

QHY4040 PRO BSI Graphic 1

QHY4040 PRO BSI Graphic 2

QHY4040 PRO BSI Graphic 3

QHY4040 PRO BSI Graphic 4

QHY4040 PRO BSI Graphic 5

QHY4040 PRO BSI Graphic 6

QHY4040 PRO BSI Graphic 7

QHY4040 PRO BSI Graphic 8

Specifications

QHY4040 Standard QHY4040 Pro I FSI QHY4040 Pro I BSI
Sensor Gpixel GSENSE4040 FSI (Front-illuminated) Gpixel GSENSE4040 FSI Gpixel GSENSE4040 BSI (Back-illuminated)
Resolution 4096 × 4096 (16.8 MP) 4096 × 4096 (16.8 MP) 4096 × 4096 (16.8 MP)
Pixel size 9.0 µm × 9.0 µm 9.0 µm × 9.0 µm 9.0 µm × 9.0 µm
Sensor size 36.9 mm × 36.9 mm (Square) 36.9 mm × 36.9 mm 36.9 mm × 36.9 mm
Quantum efficiency ~74% peak QE ~74% peak QE ~90% peak QE (extended UV to NIR response)
Exposure range Variable (pixel clock adjustable) Same as standard Same as standard
Read noise ~4 e⁻ ~4 e⁻ (high gain) ~2.3 e⁻ (high gain)
Dark current Low; TE cooled to –35 °C below ambient Same Same
Full well capacity ~26 ke⁻ (low gain) >70 ke⁻ (high gain) / ~26 ke⁻ (low gain) ~39 ke⁻ (low gain)
Bit rate Dual 12-bit ADC (single channel) Dual 12-bit ADC with high/low gain combination Same as Pro I FSI
Frame rate Up to ~20 FPS via USB 3.0 ~24 FPS (fiber), up to ~20 FPS via USB Same as Pro I FSI
Shutter type Rolling electronic shutter Rolling electronic shutter Rolling electronic shutter
Cooling 2-stage thermoelectric (air-cooled) Same Same
Memory buffer Not specified 2 GB DDR3 2 GB DDR3
ROI (Region of Interest) Supported Supported Supported
OS Compatibility Windows, Linux, macOS, ASCOM Same Same
Optical window AR-coated optical glass Same Same

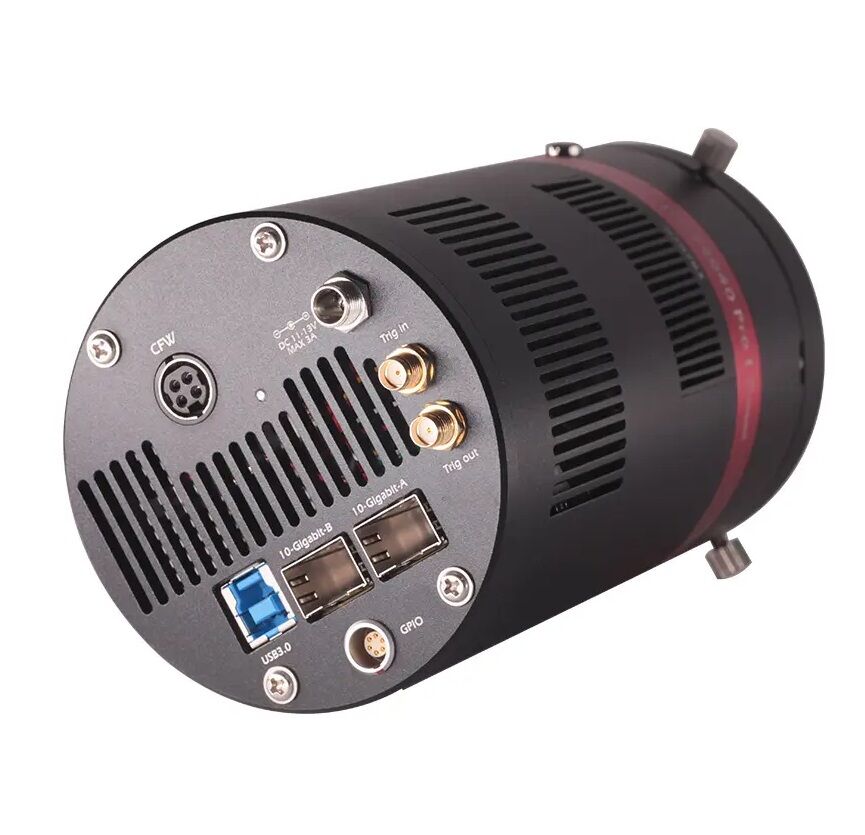

Data interface USB 3.0 USB 3.0 + Dual 10Gbps Optical Fiber USB 3.0 + Dual 10Gbps Optical Fiber
Back focus Not specified ~17 mm ~17 mm
Power supply 12 V DC (3 A recommended) Same Same
Dimensions / Weight Not specified Compact design Compact design
SKU QHY4040 QHY4040 Pro I FSI QHY4040 Pro I BSI



Dimensions

QHY4040 Dimensions

Included Items – QHY4040 (Standard / Pro I FSI / Pro I BSI)

  • USB 3.0 cable

  • Power cable with locking nut

  • 12V power adapter (if applicable to your region)

  • Silica gel tube (desiccant)

  • M54 to 2‑inch T‑ring adapter

  • Center/tilt adjustment ring

  • Camera body cover

  • Warranty card

  • Driver/software download card

  • Test report

  • Camera body
