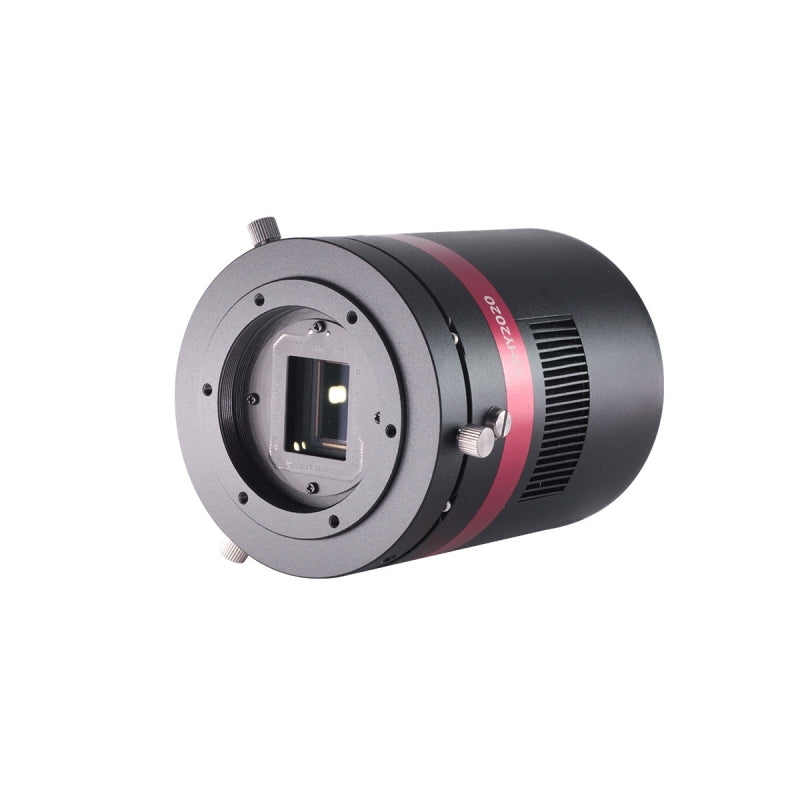

QHY2020 PRO [MONOCHROME/UV/EUV]

$14,00000AUD
SKU: QHY2020-110049
Model

QHY2020 PRO [MONOCHROME/UV/EUV] - Mono is not in stock but it can be backordered.

Contact us

Unlock the next level of Fluorescence imaging with the QHY2020 Series, a family of high-performance scientific CMOS monochrome cameras designed for professional applications in astronomy, microscopy, spectroscopy, and UV imaging.

The camera is equipped with a square 4 Megapixel CMOS sensor that has ultra high QE and wide spectral response from 200nm to 1100nm.

This product includes two variants, each tailored to specific wavelength needs:

  • QHY2020: the standard version of the camera with the Gpixel GSENSE2020 BSI mono sensor that shows a QE peak of 94% at 550nm-600nm and 20% at 240nm. This version has a pretty good QE in the NIR range as well, specifically 60% at 800nm and 38% at 900nm

  • QHY2020UV: Specialized UV-sensitive version with a UV-enhanced mono sensor and air cooling, enabling precise detection in the ultraviolet spectrum down to ~200nm. Ideal for semiconductor inspection and UV fluorescence.

  • QHY2020EUVX: the Extended UV model mounts the special Gpixel GSENSE2020-PS sensor capable of detecting extreme UV (EUV) wavelengths, pushing sensitivity even further into the deep-UV range for highly specialized scientific research. This version has a QE in 1.2nm to 15nm extreme UV range >90% which makes it ideal for UV fluorescence. Contact us for pricing.

All models are equipped with Class 1 scientific-grade sensors, ensuring minimal defects and superior image quality. The high frame rate, air cooling, and flexible ROI support make these cameras highly adaptable for a wide range of applications, from laboratory research to industrial integration.



GSENSE2020BSI has a dual ADC structure. The two ADCs will generate two images sampling the same signal at the same time. One image will be captured with low gain and high dynamic range, the other will be taken with high gain and low readout noise. The two images, that are generated at the same time, can be used to generate a HDR image that enhance the dynamic range. The QHY2020 can also output the single high gain 12bit channel or the low gain 12bit channel with 2048*2048 resolution.  All the modes can be switched using the “ReadMode” options.





Curves

Dimensions

Specification Table – QHY2020 Series (Mono, UV, EUV)
Sensor Gsense2020BSI (Back-Illuminated CMOS)
Resolution 2048 x 2048
Pixel size 6.5 μm x 6.5 μm
Sensor size 13.3 mm x 13.3 mm
Quantum efficiency >90% peak QE
Exposure range 20μs to 300sec
Read noise 2.1e⁻ to 27.6e⁻ LGC Mode - 1.7e⁻  to 7.5e⁻  HGC Mode
Dark current <0.068e⁻/pixel/sec @ -10°C
Full well capacity 56ke⁻
Frame rate 20.6 FPS @ 16bit - 32.5 FPS @ 8bit (HDR Mode)
Shutter type Global shutter
Cooling Air-cooled
Memory buffer 128 GB DDR2 RAM
ROI Supported
Optical window AR+AR High Quality Multi-Layer Anti-Reflection Coating
Ports USB 3.0
Back focus 16mm
Weight 750 g



ROI Frame Rates
1080 lines 59.6 FPS @ 8bit - 59.6 FPS @ 16bit
768 lines 82.5 FPS @ 8bit - 82.5 FPS @ 16bit
480 lines 132.3 FPS @ 8bit - 132.3 FPS @ 16bit
