PRIMA LUCE LAB ARCO 3" ROBOTIC ROTATOR

$2,199.00 AUD
SKU: PLLARCO3

Prima Luce Lab




Please note: The ARCO rotators are only compatible with either the ESATTO or Sesto Senso 2 focusers from Prima Luce Lab.

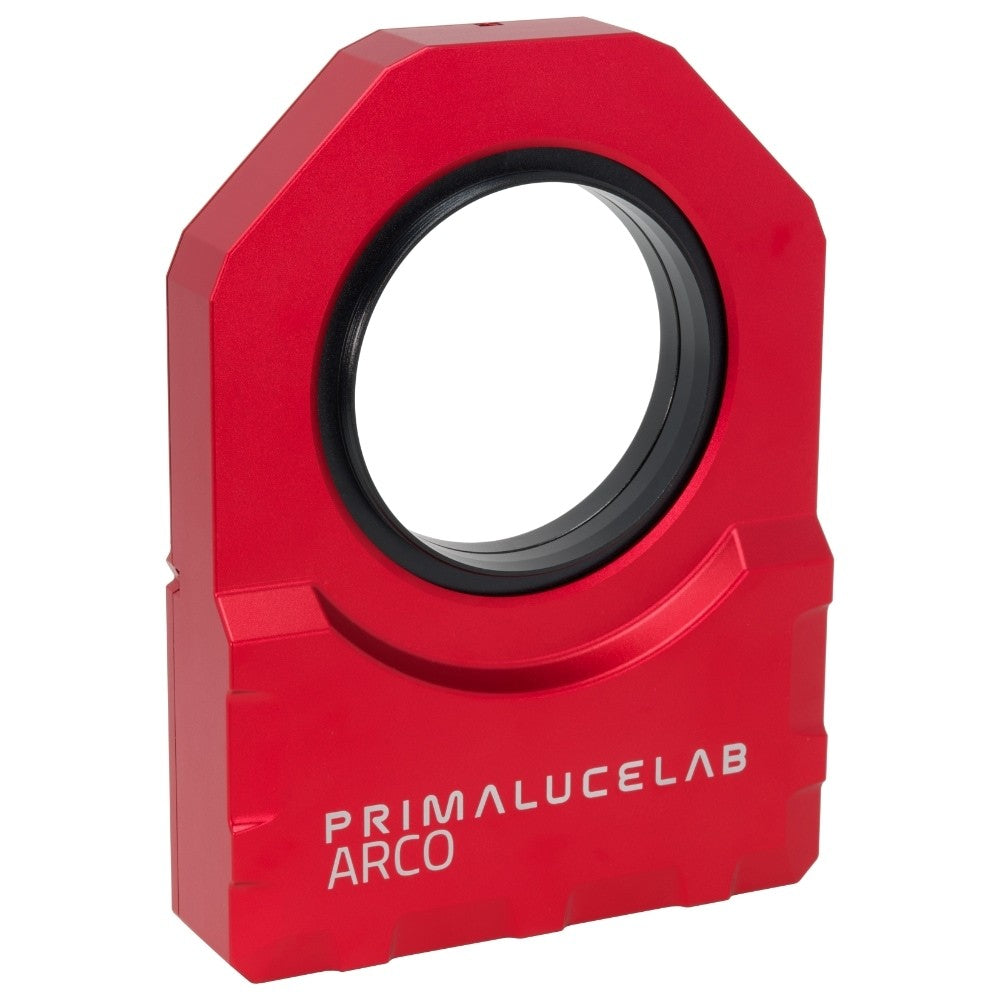

The Prima Luce Lab ARCO 3" is the larger version of the ARCsecond resolution rOtator that, thanks to its incredible resolution of 1 arc second per step, is the most precise camera rotator and field de-rotator. The 3” version of ARCO has a thickness of only 23mm and a free aperture of 76.2mm. When used together with an equatorially mounted telescope, ARCO allows you to rotate the camera without the need to touch the telescope. When used with an alt-az mount (without a wedge), it also works as field de-rotator, enabling you to do long exposure astrophotography as never before! Connect ARCO with a single short cable to Prima Luce Lab's ESATTO or SESTO SENSO 2, and control it from your EAGLE, any Windows computer or with a smartphone or tablet via WiFi.

 Prima Luce Lab ARCO 3" camera rotator and field de-rotator 2



 ARCO 3" camera rotator and field de-rotator - main features:


  • Low profile rotator, just 23mm of body thickness
  • 1 arc second resolution per step
  • 76.2mm of free aperture
  • No need for external USB or 12V power cables, it connects to ESATTO or SESTO SENSO 2 with a single short cable
  • No protruding parts that may interfere with your camera, other accessories or even your telescope
  • Fully functional astrophotography software to be used with EAGLE or Windows 10 computers
  • ASCOM driver to allow the control of camera rotation from third party software
  • Specially designed full aluminium case, you can even rotate heavy cameras and accessories without any flexure
  • Compatible with all M81 adapters with stop ring to connect ARCO 3" to any camera and accessory
  • Adapters available to connect it ARCO 3" to ESATTO focusers and to focusers with SESTO SENSO 2
  • Weight: 1060 grams


Includes PLAY, the Prima Luce AstrophotographY Software

ARCO comes with PLAY, the all-in-one and easy to use astrophotography software that allows you control your focuser and easy remote operation.

PLAY allows you to configure your telescope by selecting OTA and mount type and by connecting to any camera, autoguider, mount, or filter wheel that is has an ASCOM driver (tested with ASCOM platform 6.4 and later). And if you install PLAY on an EAGLE computer, it automatically adds more advanced features!

Note: In order to use PLAY you have to have either the ESATTO focuser or SESTO SENSO 2 focusing motor. PLAY natively supports the new ARCO rotator and ECCO environmental module.





Please note: in order to be used, ARCO rotator has to be connected to ESATTO microfocuser or SESTO SENSO 2 focusing motor. ARCO is not designed as a stand alone unit.



Easy to use with ESATTO



You can connect ARCO 3" to the ESATTO focusers with the proper optional adapters and control it with the ARCO cable that comes in the box. Use the PL3600458 adapter to connect ARCO 3” to ESATTO 3". Use the PL3600459 adapter to connect ARCO 3” to ESATTO 4”.



Prima Luce Lab ARCO 3" camera rotator and field de-rotator with ESATTO



Easy to use with SESTO SENSO 2



If you use a SESTO SENSO 2 connected to your telescope’s focuser, you can connect the ARCO 3” rotator by using the optional PL3600465 M63x1 adapter to connect rotator to focusers or correctors that come with 63x1 female thread or the optional PL3600463 M86x1 adapter to connect rotator to focusers or correctors that come with 86x1 female thread. Like with the ESATTO, you will connect ARCO to SESTO SENSO 2 with the provided cable.



Compatible with all the M81 adapters


Since ARCO 3” has the same M81x1 male thread found on the camera side of the ESATTO 3” draw tube, you can use any of the optional M81 adapters with stop ring in order to connect cameras or accessories you use for your setup:

PL3600282 adapter to connect cameras or accessories with T2 thread
PL3600277 adapter to connect cameras or accessories with M48 thread
PL3600275 adapter to connect cameras or accessories with M54 thread
PL3600279 adapter to connect accessories with M57 thread
PL3600262 adapter to connect cameras or accessories with M68 thread
PL3600289 adapter to connect cameras or accessories with M68 male thread
PL3600272 adapter to connect cameras or accessories with M72 thread
PL3600252 adapter to connect cameras or accessories with M72 male thread
PL8410002 2” visual back to connect cameras or accessories with 2” noise piece



Prima Luce Lab ARCO 3" camera rotator and field de-rotator with ESATTO adapter



Focuser compatibility ESATTO or SESTO SENSO 2 connected to external focuser
Free aperture
76.2 mm
Diameter 3"
Thickness
23 mm (without ESATTO adapter)
Loading up to (Kg) TBA
Resolution
1 arcsecond / step
Weight 1060 g



Prima Luce Lab ARCO 3" robotic rotator schematic
