SKYWATCHER EVOGUIDE 50ED V2
SKYWATCHER EVOGUIDE 50ED V2 is a special order item. Contact us for more info.

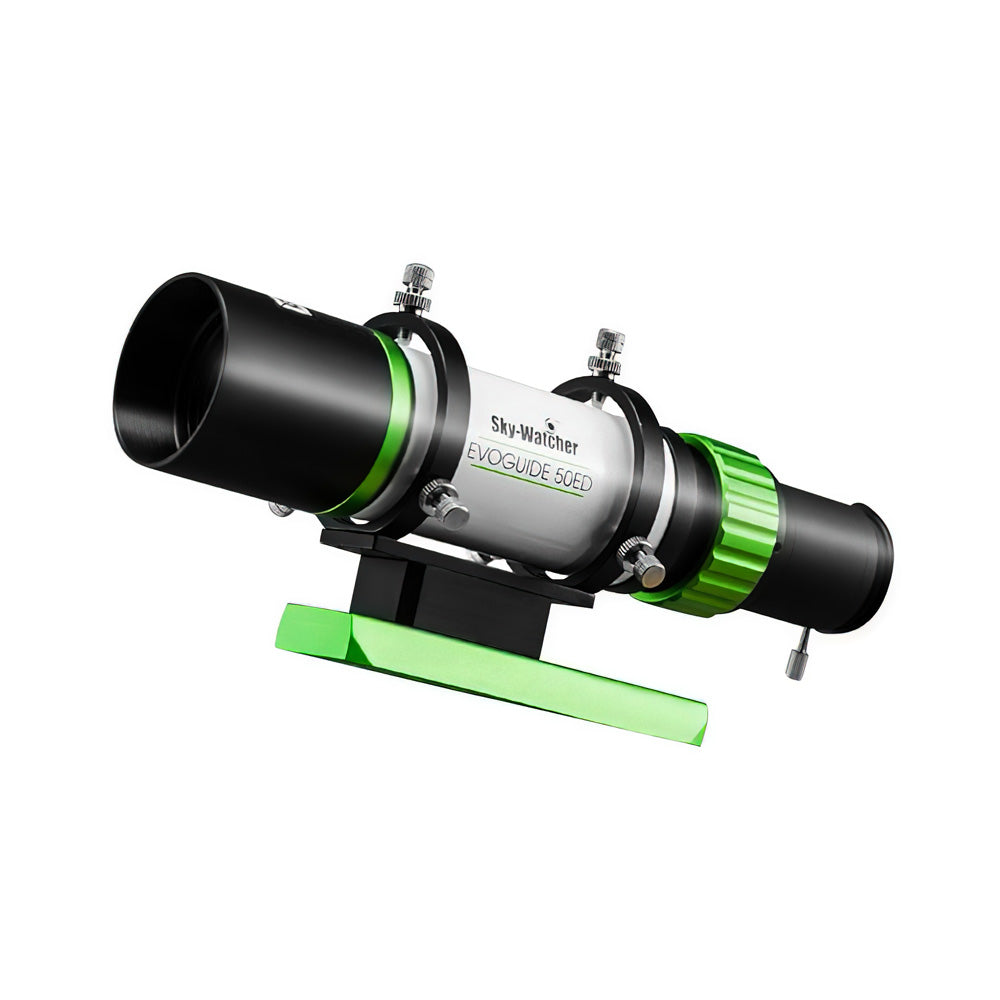

The SkyWatcher Evoguide 50ED V2 is a compact guide scope that includes a Vixen style mini dovetail bar for a secure attachment to your main telescope. The objective lens has a diameter of 50mm, which is all you need for guiding with the majority of astrophotography set-ups.
Unlike all the other guide scopes, the Evoguide 50ED features a doublet with an extra low dispersion lens that provides "tighter" stars for a better guiding. The ED lens reduces the chromatic aberration and therefore the apparent size of the stars.
It is compatible with 31.8mm eyepieces and cameras and the rings allow for a quick alignment to the main telescope.
The helical focuser rotates with the focuser; the focusing procedure with a guiding camera is generally done one time only. Then it can be locked and the focusing distance is maintained for all times.
Technical Specifications
| Optical design |
Apochromatic doublet with ED lens |
|
Objective diameter |
50 mm |
|
Focal length |
242 mm |
|
Focal ratio |
f/4.84 |
|
Focuser |
Rotating helical |
|
Weight |
865 g |
|
Length |
260 mm |
|
Mount attachment |
Vixen style dovetail bar |
|
SKU |
SWED50-V2 |
