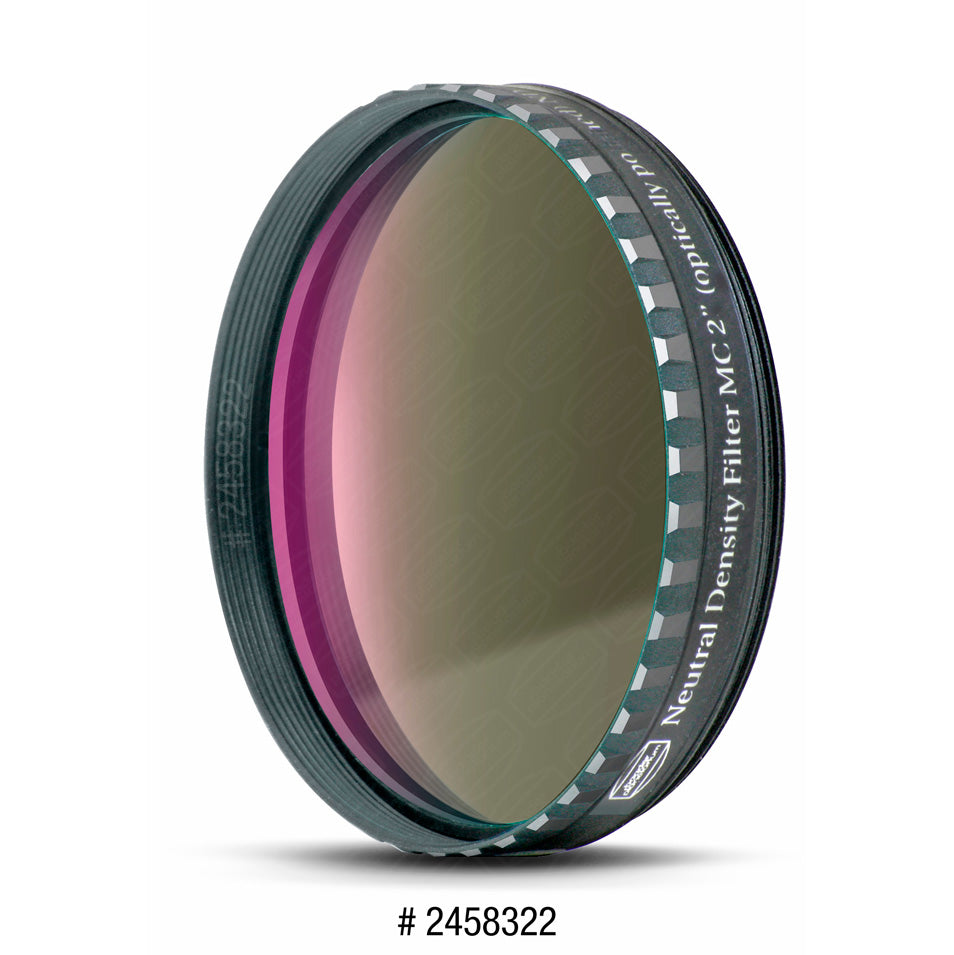

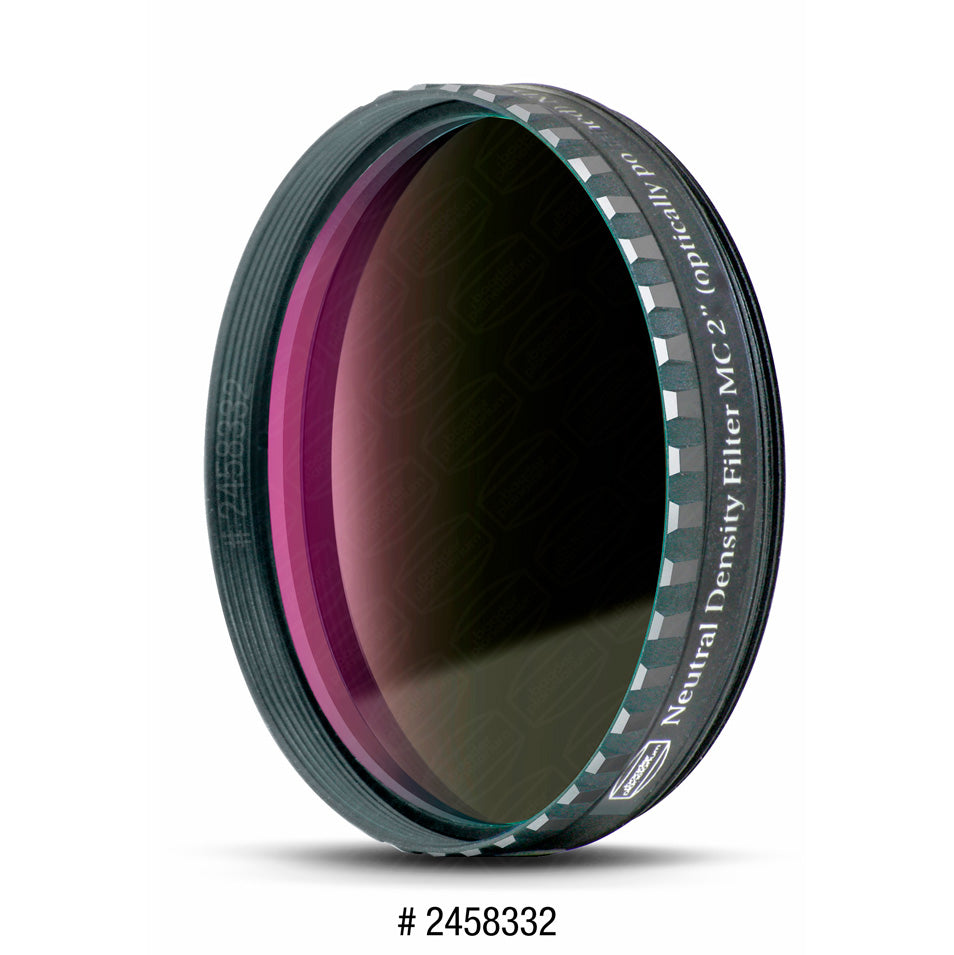

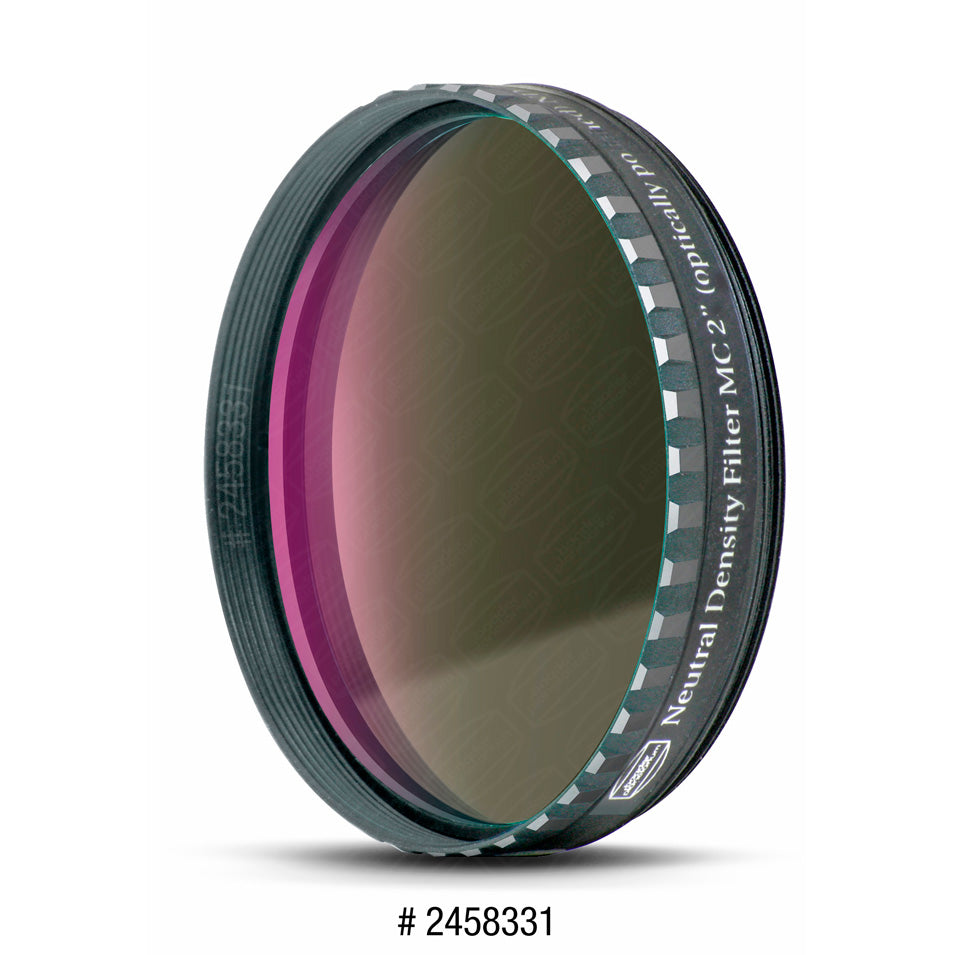

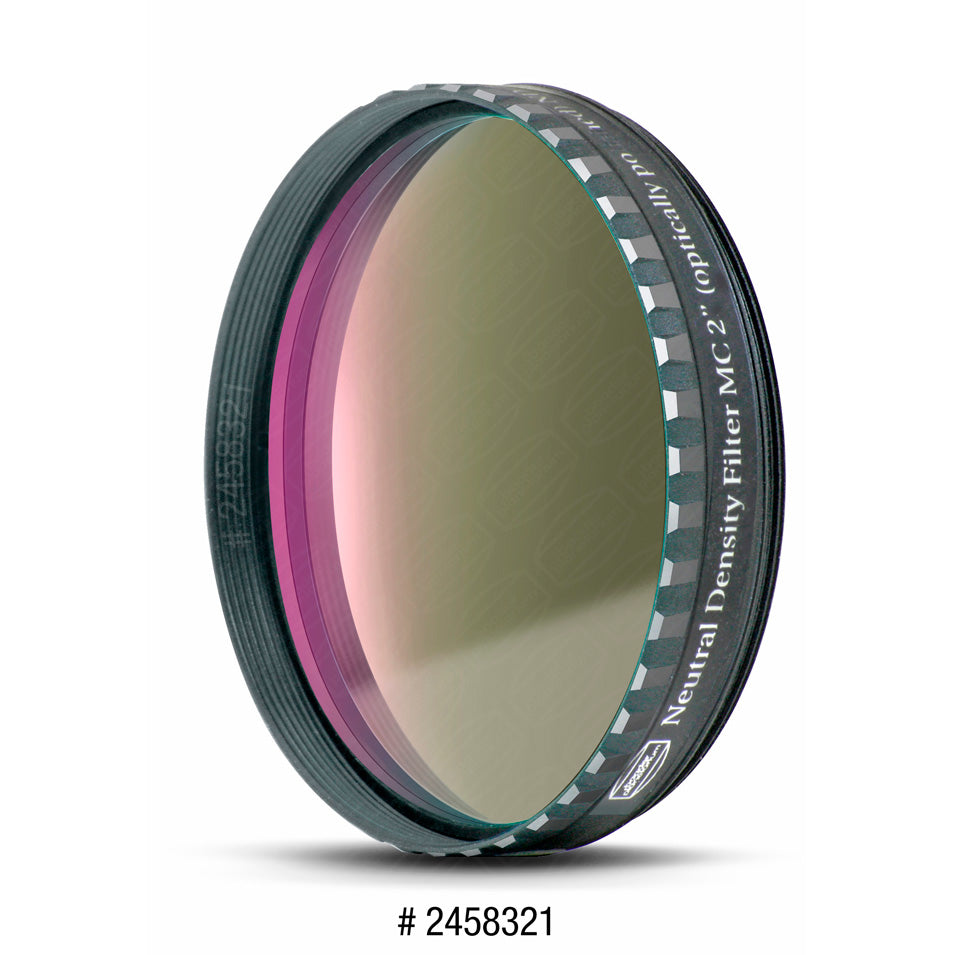

BAADER NEUTRAL DENSITY FILTER 2"

$129.00 AUD
SKU: BA2458321

Baader Planetarium


Transmission



Baader 2" Neutral Density filters are available in a range of optical densities to reduce the brightness of objects such as the Moon or the Sun (only with additional energy rejection filter), between OD 0.6 which lets through 25% of light all the way to  OD 3.0, letting through only 0.1% of light.

Warning: Polarizer and neutral density filters need additional filtering (for example, Baader Herschel Prism or Baader Astro Solar Safety Film) before the eyepiece of the telescope for observations of the sun. Using without the appropriate filters can cause damage to the these filters and eyesight.

The optical surface of fine-optically polished so that there is no loss of sharpness at high magnifications, even when the filter is positioned far in front of the focal point. Like all Baader filters, the surfaces feature 7-layer Phantom Group coatings to minimized ghosting, reflections and stray light.

Available in either 1.25" or 2" mounted. The filter cell is threaded on both ends so that multiple filters can be stacked (such as Baader colour planetary filters). All Baader filters (excluding 100 x 100mm) come in stackable labelled filter boxes which can be attached to each other to form a sturdy filter library.



Transmission range
Full spectrum
Damping factor
4 x - 1000 x
Optical density 0.6 - 3.0
AR-coating
Phantom Group coating, planeoptically polished
Filter thickness 2 mm (without cell), 6 mm with cell
Filter size 1.25" / 2" mounted
SKU

BA2458321 (0.6), BA2458322 (0.9), BA2458331 (1.8), BA2458332 (3.0)

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
BAADER NEUTRAL DENSITY FILTER 2".

BAADER NEUTRAL DENSITY FILTER 2"

$129.00 AUD

Transmission

  • OD 0.6 T=25%
  • OD 0.9 T=12.5%
  • OD 1.8 T=1.5%
  • OD 3.0 T=0.1%
