NAKOH 60GT 1x FIELD FLATTENER
NAKOH 60GT 1x FIELD FLATTENER is not in stock but it can be backordered.

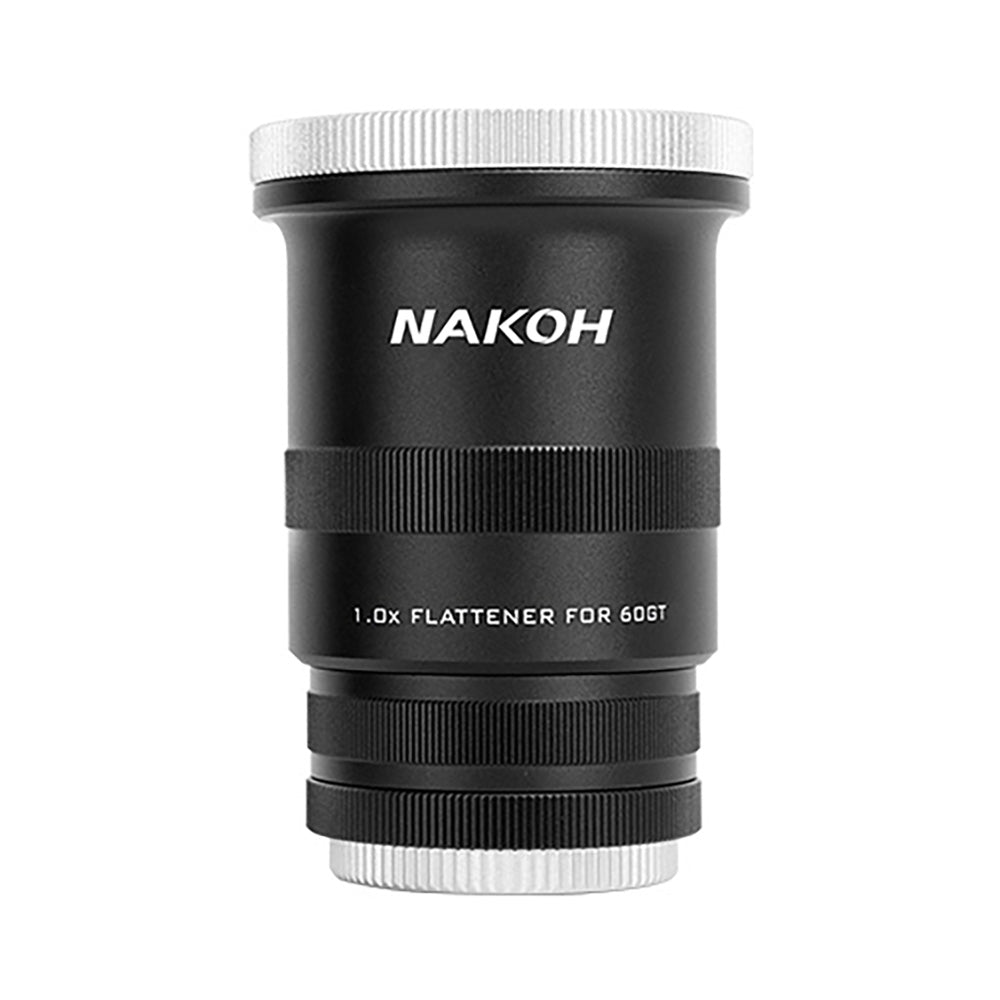

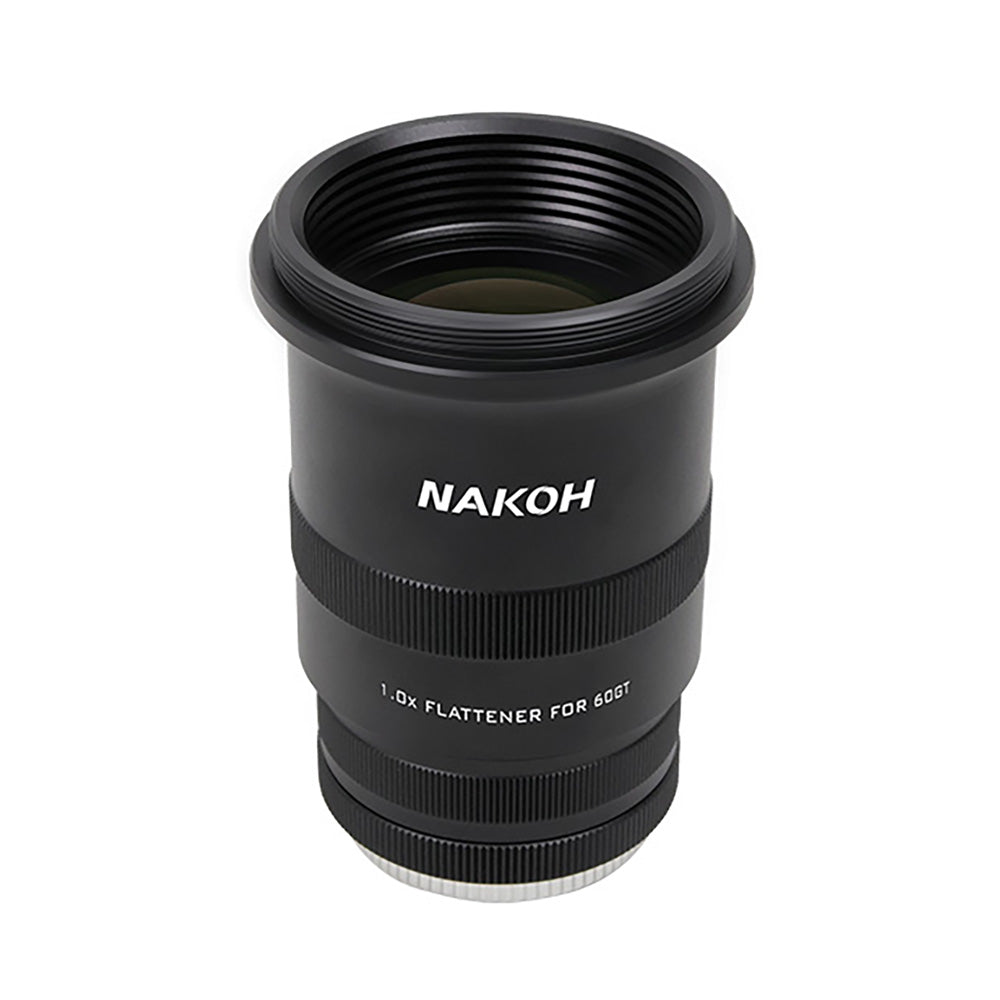

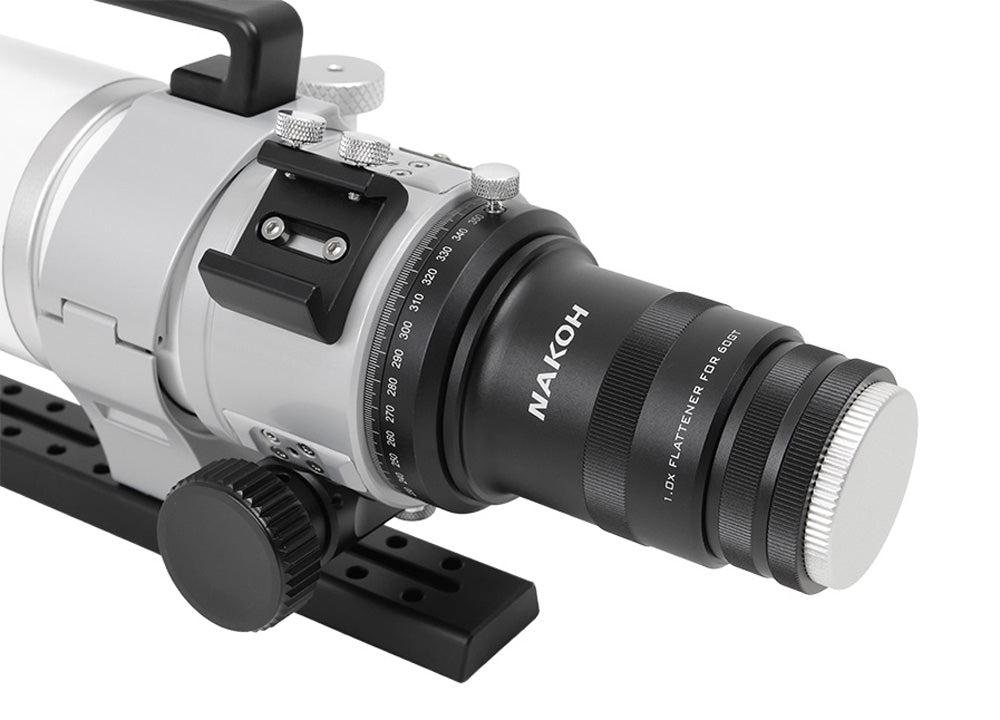

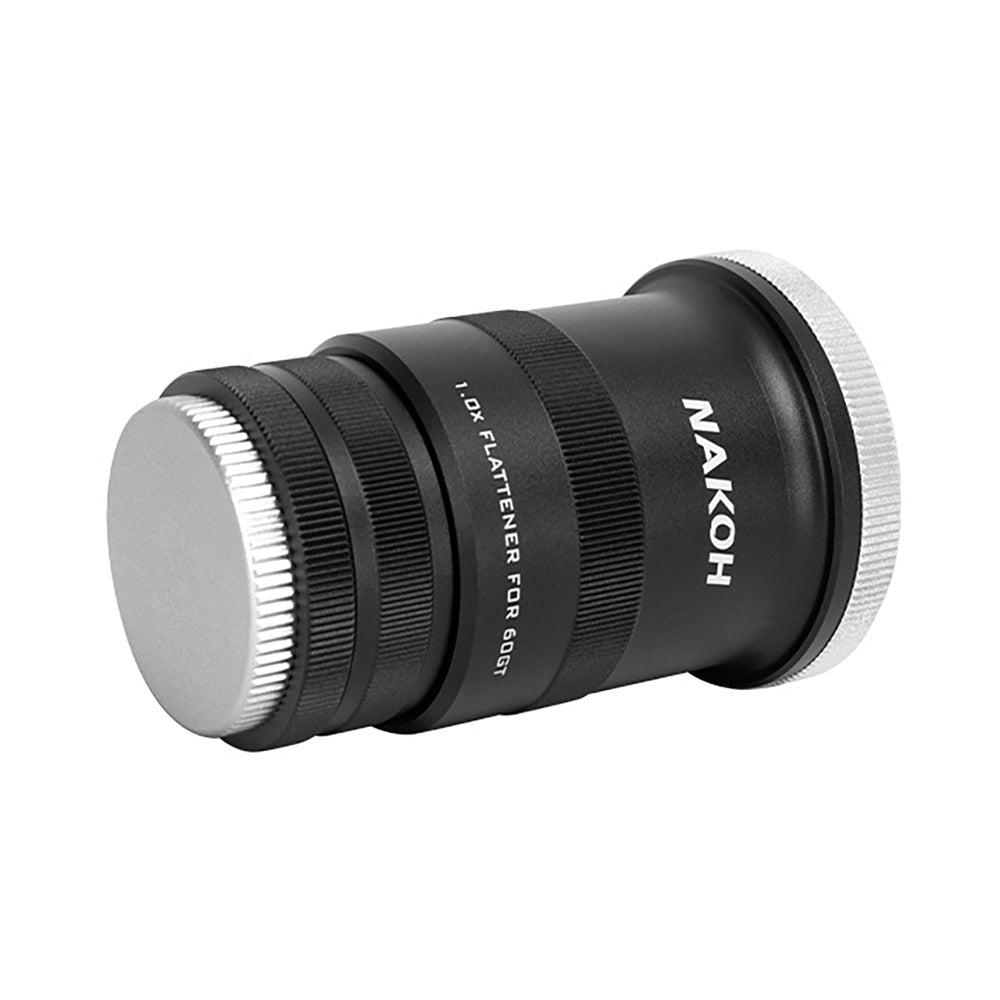

The NAKOH 1x Field Flattener for the 60GT is a triplet corrector with a large 44mm image circle, compatible with full frame sensors. The 1x magnification factor preserves the telescope's focal length and focal ratio while correcting off-axis aberrations for imaging.
The flattener has a backfocus requirement of 55mm, making it straightforward to connect common imaging trains. Both M48 x 0.75 and M54 x 0.75 camera-side thread adapters are included, allowing full-frame cameras to be connected with minimal vignetting. An internal M48 x 0.75 thread allows you to attach standard 2" filters. CNC-machined metal threaded end caps protect the optics of the flattener when not in use.
Specifications
| Reduction factor | 1.0 x |
|---|---|
| Telescope connection | M68 x 1 |
| Camera connection | M54 x 0.75, M48 x 0.75 (with built-in 2" filter thread) |
| Image circle | 44 mm |
| Backfocus distance | 55 mm |
| Weight | 530 g |
| SKU | NA-60GT-1xFLAT |
